JIS Standard Rails
JIS Standard Rails are rail profiles manufactured in line with the Japanese Industrial Standards. These rails are widely used not only in Japan’s domestic rail networks, industrial transport lines, and infrastructure development but also in numerous Southeast Asian countries. At GloryTrack, we supply the full range of JIS rail types—including 15kg, 22kg, 30kg, 37kg, and 50kg models—to meet a variety of light to medium-duty applications.
JIS Standard Rail Models
Compare the key dimensions of JIS E 1101 rail track models below, including height, base width, and weight.
Type of Rail | Dimensions mm | Steel Grade | Weight（Kg/m） | |||
| Rail height/A | Bottom Width/F | Head Width/C | Web Thickness/t | |||
| 63.5 | 63.5 | 32.1 | 5.9 | Q235B | 8.94 | |
| 66.67 | 66.67 | 34.13 | 6.35 | Q235B | 10.1 | |
| 69.85 | 69.85 | 38.1 | 7.54 | Q235B | 12.2 | |
| 79.37 | 79.37 | 42.86 | 8.33 | Q235B/55Q | 15.2 | |
| 93.66 | 93.66 | 50.8 | 10.72 | Q235B/55Q | 22.3 | |
| 107.95 | 107.95 | 60.33 | 12.3 | Q235B/55Q | 30.1 | |
| 37kg(37A) | 122.24 | 122.24 | 62.71 | 13.49 | Q235B/55Q | 37.2 |
| 40kgN(40N) | 140 | 122 | 64 | 14 | 55Q/50Mn/U71Mn | 40.9 |
| 50kg(50PS) | 144.46 | 127 | 67.87 | 14.29 | U71Mn | 50.4 |
| 50kgN(50N) | 153 | 127 | 65 | 15 | U71Mn | 50.4 |
| 60kg | 174 | 145 | 65 | 16.5 | U71Mn | 60.8 |
Key Features
JIS standard rails have the same cross-section design as GB standard rails, with some models nearly identical in size. These rails are lightweight and compact, greatly simplifying handling, installation and maintenance, especially in narrow or remote environments.
- Compatible with GB rails
- Lightweight and compact
- Easy for remote installation
Manufacturing Process
At GloryTrack, every JIS rail are produced through a hot rolling process to guarantee consistent internal structure and precise dimensions. This process boosts the rail’s structural strength, making the rails suitable for repetitive stress and dynamic use in industrial environments.
- Hot-Rolled
- Consistent Structure
- Industrial Strength
Common Applications for JIS Standard Rails
Port gantry crane
Crane rails for seaport gantry cranes, supporting heavy cargo handling across long-distance container terminals.
Shipyard slipway
Installed on slipways to guide vessel launching and assembly in shipbuilding yards with stable rail support.

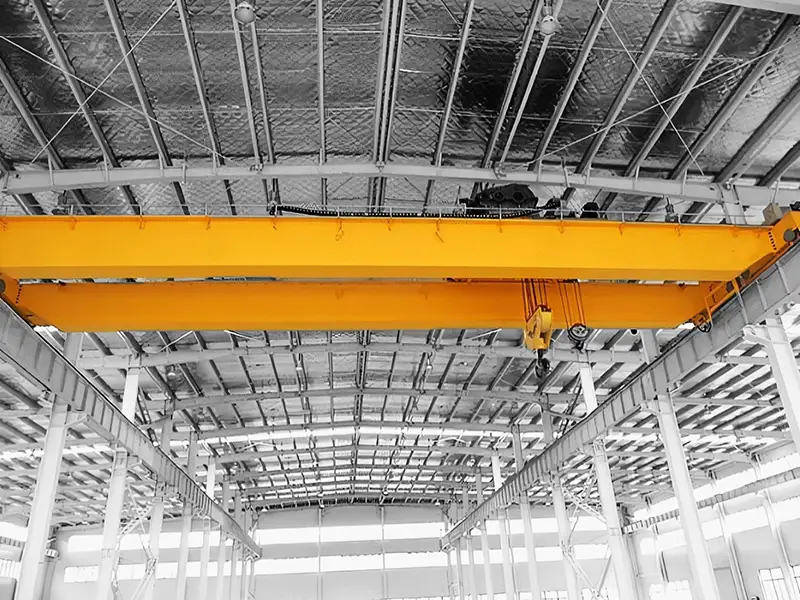

Factory crane tracks
Crane rails for overhead cranes in workshops, enabling precise lifting and material flow in industrial environments.
FAQ
Do you offer rail length customization?
→ Yes. We provide flexible length options, with standard lengths of 6m and 10m. Custom lengths are also available upon request.
Can the rails be pre-machined before delivery?
→ Absolutely. We offer machining services such as drilling, cutting, and surface coating to meet specific installation needs.
What surface treatments are available for corrosion protection?
→ For coastal or corrosive environments, we offer anti-corrosion options like industrial paint or galvanization.
How are the rails packaged and shipped?
→Rails are securely bundled and shipped via sea, land, or rail transport. We ensure safe and stable delivery worldwide.
