Indian Standard Rail
Indian Standard Rails (ISCR Standard Rails) are manufactured according to the IS 3443-1980 standard set by the Bureau of Indian Standards. These rails are widely used in India and several South Asian countries, designed to withstand the specific environmental conditions of the region. The ISCR Standard Rails are available in various models, including ISCR 50, ISCR 60, ISCR 70, ISCR 80, ISCR 100, and ISCR 120, each tailored to meet different structural and operational requirements.
Indian Standard Rail Models
| Type of Rail | Dimensions mm | Steel Grade | Weight (Kg/m) | |||
| Rail height/A | Bottom Width/F | Head Width/C | Web Thickness/t | |||
| ISCR 50 | 90 | 90 | 51.2 | 20 | 55Q/U71MN | 29.8 |
| ISCR 60 | 105 | 105 | 61.3 | 24 | 55Q/U71MN | 40 |
| ISCR 70 | 120 | 120 | 70 | 28 | U71Mn | 52.8 |
| ISCR 80 | 130 | 130 | 81.7 | 32 | U71Mn | 64.2 |
| ISCR 100 | 150 | 150 | 101.9 | 38 | U71Mn | 89 |
| ISCR 120 | 170 | 170 | 122 | 44 | U71Mn | 118 |
Indian Standard Rail Key Features
Complies with Indian railway standards for industrial and transit use
Balanced profile with high fatigue resistance
Suitable for thermite welding and flash butt welding
Stable performance under dynamic and static loads
Typical Applications
Indian Standard Rails are primarily deployed in mainline railways, metro systems, and mining transportation. They are also used in infrastructure requiring high wear resistance, such as loading bays and port transit systems.
Manufacturing Process
GloryTrack manufactures Rails using hot-rolled processing under controlled conditions. We ensure dimensional tolerance and consistent mechanical properties through rigorous quality control measures.
Delivery & Customization

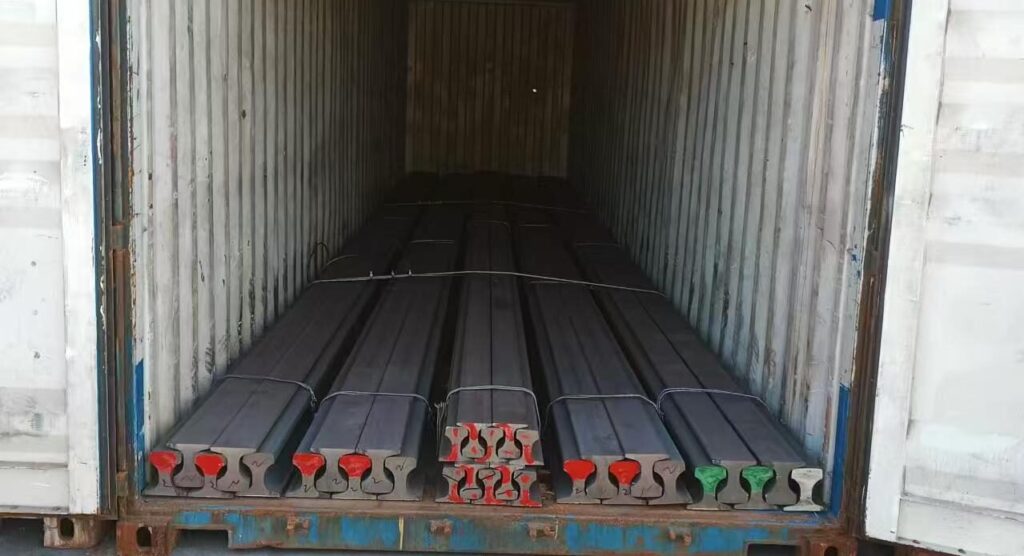

We provide tailored services including length cutting, bolt hole drilling, and corrosion-resistant coatings. Packaging options include steel strapping. For special requirements, packaging can be provided in wooden boxes, wooden pallets, or as per the customer’s specifications.
Need Steel rail with fast delivery?
Our ISCR profiles support local specs and heavy-duty usage
- Which ISCR rail size do you need for your application?
- Do you have specifications for rail drilling or joining methods?
- Will the rails be used in high-wear or coastal environments?
What are your shipment and logistics expectations?
