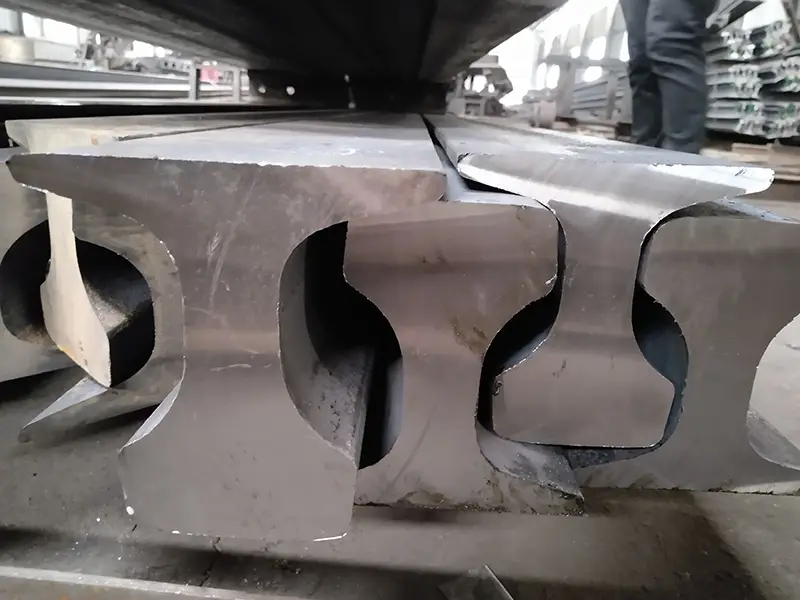

CR100 Rail
CR100 rail weighs 100.2 kg/m and is designed for heavy-duty crane systems. Sharing similar materials and hot-rolled processing with CR73, it features an optimized profile with an even wider head and thicker web to enhance load-bearing and bending resistance. The design ensures excellent durability under continuous operation, making CR100 ideal for use in logistics hubs, large workshops, and manufacturing lines where cranes handle high-impact and heavy loads reliably.
- Wider Head Profile
- High Load-Bearing Strength
- Reliable Heavy-Duty Performance

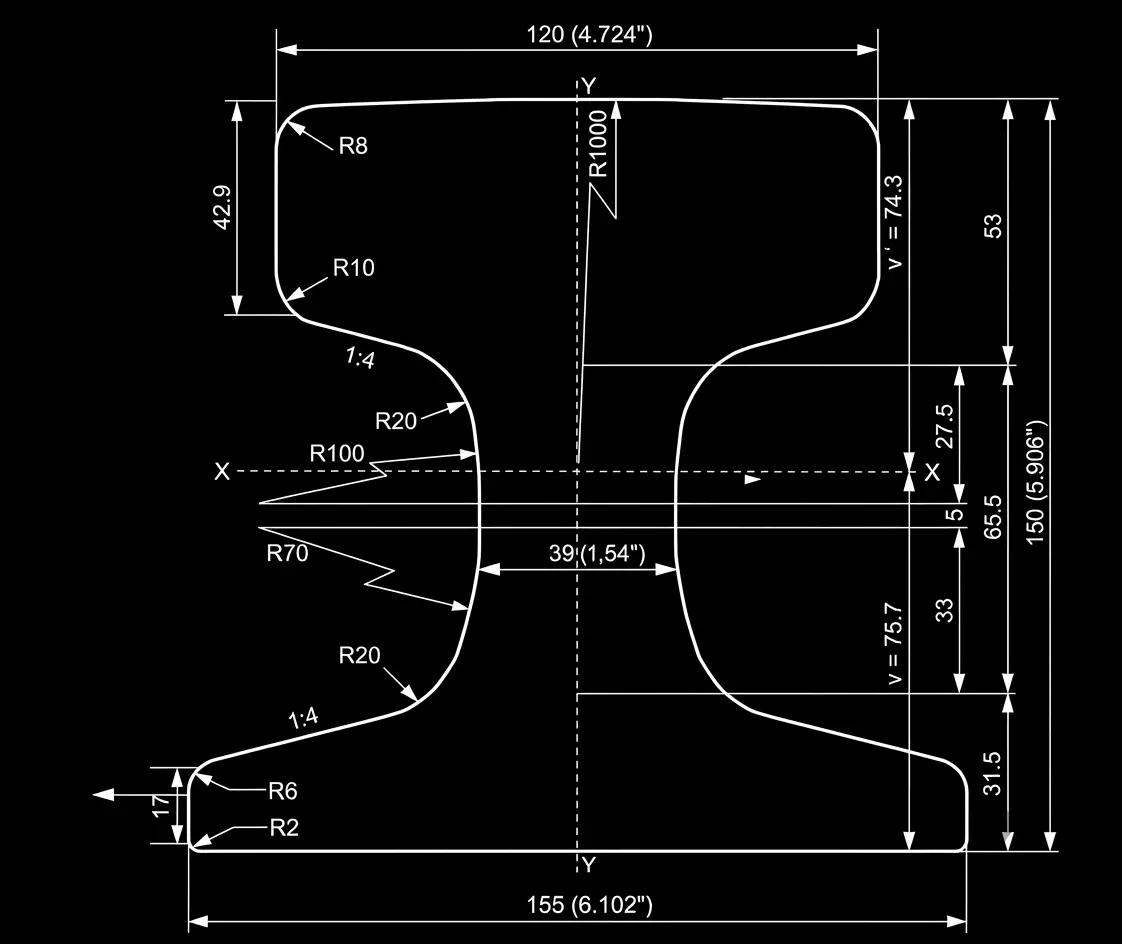

Rail Specification
| Height: 150 mm | Base Width: 155 mm |
| Head Width: 120 mm | Web Thickness: 39 mm |
| Length: 6m-12m | Material: U71Mn |
| Weight: 100.2 kg/m | Standard: JIS E 1103-93 / JIS E 1101-93 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
CR100 Rail Material Grade
Made from high-strength U71Mn steel, engineered for excellent wear resistance and impact durability in crane rail applications.
| Grade | Mechanical Property | Chemical Composition (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| U71Mn | — | — | ≥880 | — | 9% | 260 | 0.65–0.76 | 0.15–0.35 | 1.10–1.40 | 0.030 | 0.030 |
CR100 Rail Customization Options

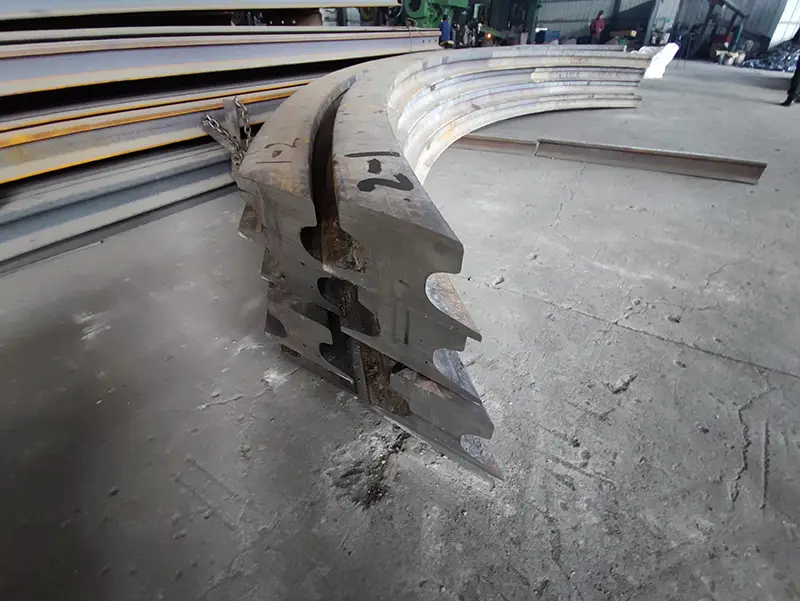

Rail Bending Solutions
Glory Track offer custom hot or cold rail bending to match project layouts. Precise shaping ensures a perfect fit for curves. Curvature is tailored to drawing or site needs.

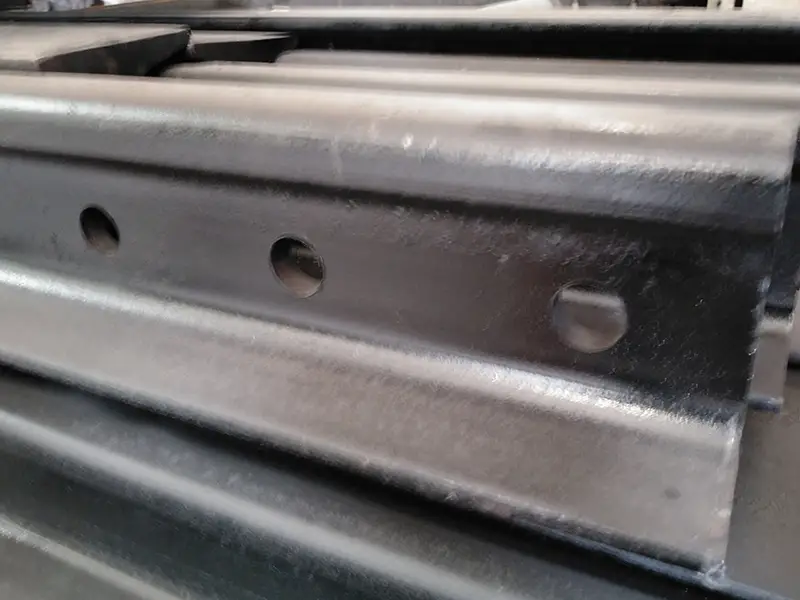

Custom Drilling Services
Drilling is fully customized to your fastening system. We handle fishplate holes or web holes for forming bolts.Hole size and spacing are matched to your drawing.

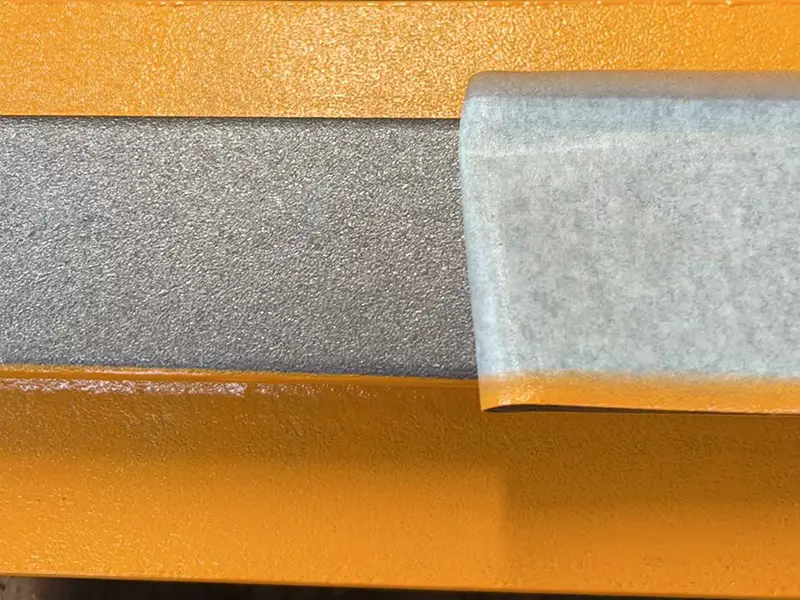

Surface Treatment Options
Rails can be treated with paint, zinc coating, or anti-rust oil. Each option suits different working environments.We select the best protection method for your usage scenario.

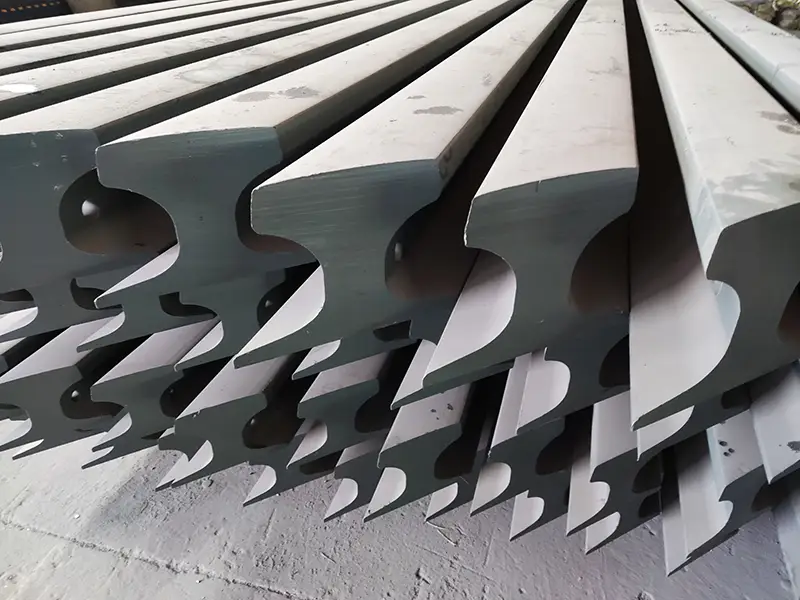

End Processing & Finishing
We cut angled ends, bevels, or special joints based on your assembly plan. Profiles support precise rail connections. Every cut is based on your drawing or on-site need.
CR100 Rail for Your Project — Let’s Work From Your Requirements
Whether you are sourcing CR100 rail for a new crane runway, a replacement project, or a complete rail system, share your required quantity, rail length, delivery destination, and technical specifications with Glory Track. Our team will review your requirements and prepare a project-based quotation.
Rail Components You May Need
Looking for a complete rail solution? We also supply compatible components and systems
Rail Fasteners & Clips
Ensure rail stability and secure installation with durable spikes, bolts, and clips.
Fish Plates
Connect rail sections firmly to maintain track alignment and structural integrity.
Steel soleplates
Distribute loads evenly and protect the base structure while enhancing insulation.
Rubber Pads
Absorb vibration and noise to protect the track and extend its service life.
CR100 Rails Project Applications
Indoor Cranes
Engineered for high-load movement, CR100 rails serve heavy-duty cranes in logistics hubs. The wide head and strong web prevent deformation under repeated lifting cycles and fast-paced loading tasks.
Light Industry
In manufacturing lines that involve large-scale equipment or die casting, CR100 rails maintain alignment and crane precision even under heavy load variations and prolonged use.
Storage Zones
CR100 tracks are commonly used in semi- or fully automated crane systems, offering the necessary structural strength and reliability for continuous, repetitive lifting with minimal interruption.
Packaging & Delivery Assurance for CR100 Rails

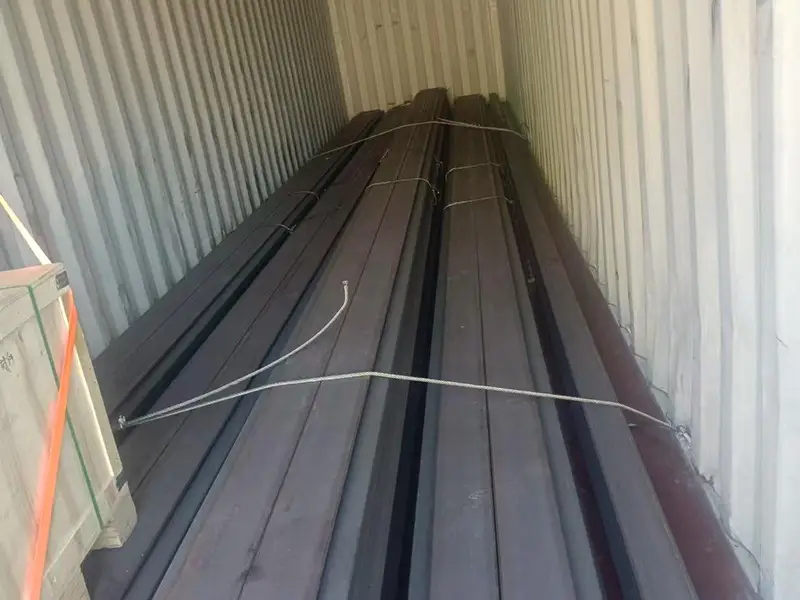

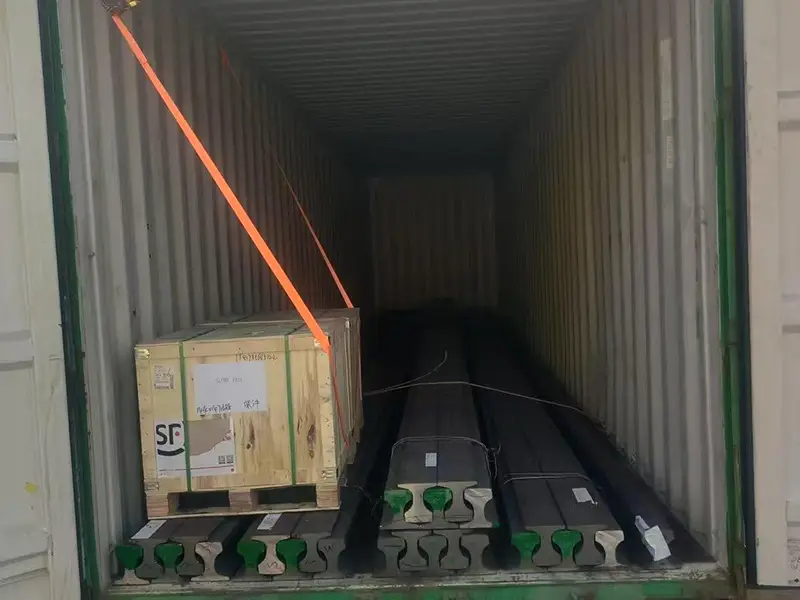

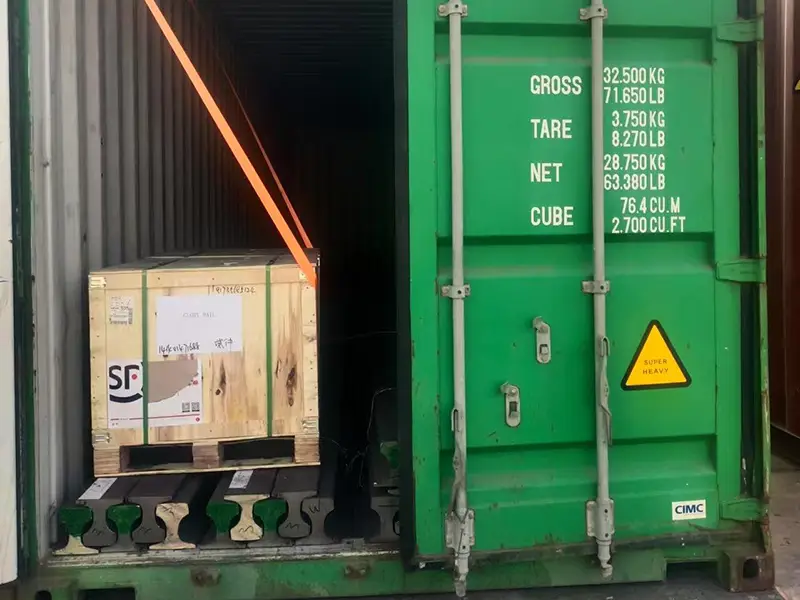

We take great care in packaging to ensure your order reaches you safely, wherever you are in the world. Rails are strapped with steel belts and fixed with wooden blocks inside the container. If needed, we can also add waterproof protection upon request.

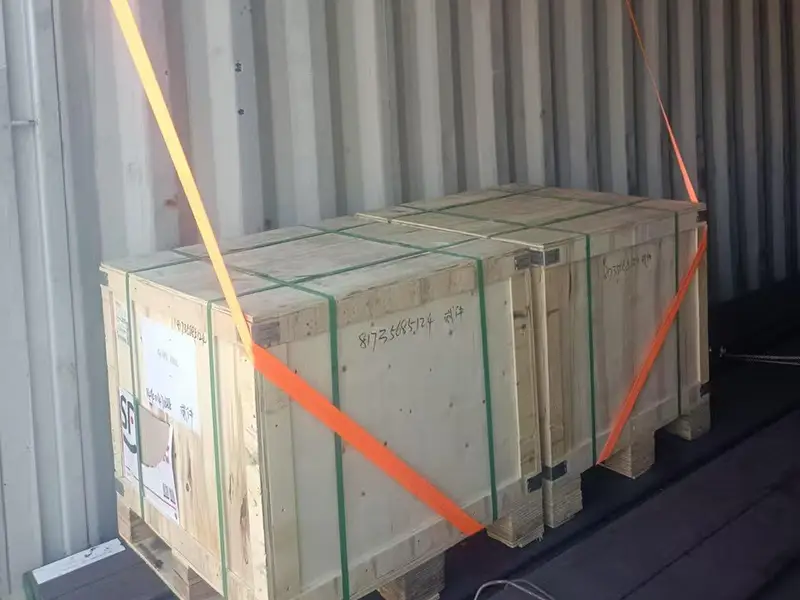

All accessories and small parts are packed in fumigation-free wooden boxes and well secured to avoid movement during shipping.
Having handled shipments to regions like Africa, South America, and Central Asia, we understand how to get your products delivered on time and intact.
