S14 rail
DIN S14 rail is a light-duty steel rail manufactured under DIN 5901 standards, weighing 14 kg per meter. It is widely used in light industrial transport lines, low-traffic crane systems, and short-haul mining tracks. Its dimensions are similar to GB 15kg/m rail, offering a cost-effective option for comparable light-duty applications. With Q235 and 55Q material options, S14 is a reliable solution for indoor and outdoor tracks requiring moderate strength and durability.

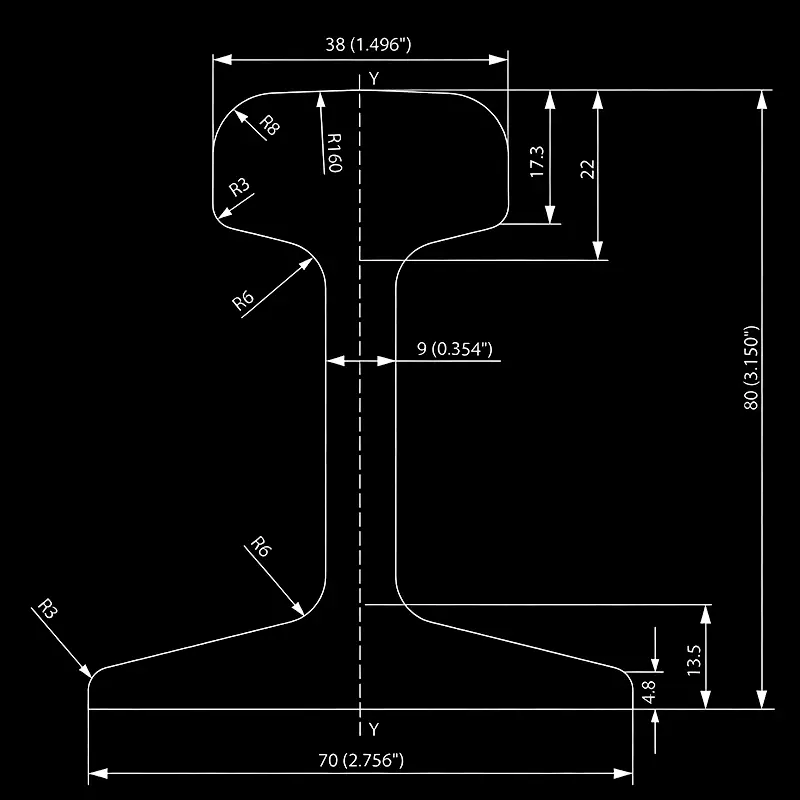

Rail Specification
| Height: 80 mm | Base Width: 70 mm |
| Head Width: 38 mm | Web Thickness: 9 mm |
| Length: 6m-10m | Material: Q235/55Q |
| Weight:14 kg/m | Standard: DIN 5901 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
DIN S14 Rail Material Properties
S14 rails are available in two material grades: Q235 & 55Q. Both meet general industrial transport and crane track needs with consistent mechanical strength.
Custom Processing Options for DIN S14 Rail
We provide complete in-house processing services to help you build safe, efficient, and reliable track systems tailored to your specific project needs and performance requirements.
- Cutting to any length between 1–10 m
- Hole drilling for joints or clips
- End-face machining or shaping
- Surface treatment: primer, oil, or sandblasting
Why Choose the S14 Rail
Applications
Used in light-duty crane railways, material trolleys in factories, port maintenance lines, and small mine cart systems.
Advantages
Compatible with common fasteners; balances strength and weight; fits projects requiring moderate axle loads and easy layout adjustments.
Why Glory Track
Over 15 years in rail supply. Stock readily available for S14 rails. Fast production, precision machining, and full export support.
FAQ
How does S14 rail compare in size to GB 15kg/m rail?
→ S14 rail and GB 15kg/m light rail have comparable dimensions in head width, base width, and height. While not identical, they can often be used in similar applications, provided the fasteners and joint systems are properly adapted. We recommend verifying compatibility based on section drawings and actual rail tolerance.
Which steel grade is better for crane or outdoor use?
→ We recommend 55Q for better wear resistance. Q235 is suitable for lighter or indoor operations.
Can I get S14 rails in custom lengths or with holes?
→ Absolutely. We offer cutting, drilling, and end processing based on your project layout. Just send us your specs.
Get a Fast Quote for DIN S14 Rail:
- Preferred material: Q235 or 55Q
- Required length and machining options
- Accessories or joint needs
Fast reply with technical support and pricing within 24 hours.
