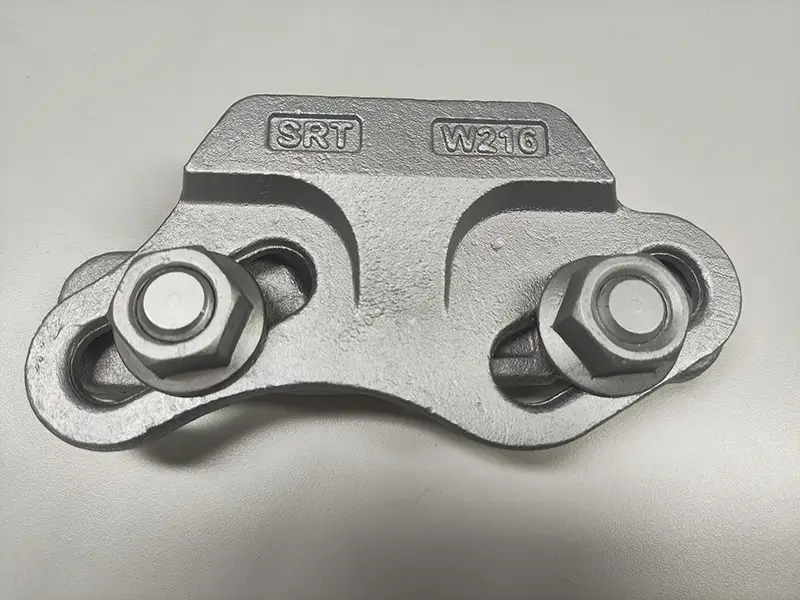

W216 Rail Clip
The W216 rail clip from Glory Track is engineered for the toughest crane rail environments—where high side loads, constant vibration, and tight space constraints demand uncompromising reliability.
Built with a welded base fixing and forged self-locking top, the W216 delivers secure, permanent fastening for heavy-duty crane rails, ladle cranes, and port gantry tracks.
Its 235 kN (24-tonne) side load capacity and 20 mm lateral adjustment make it one of the most robust crane rail clips in the welded series. Designed for long service life, it ensures precise rail alignment even under continuous shock and thermal movement, providing peace of mind in mission-critical operations.
Features of W216 Rail Clip
Engineered for Extreme Load Conditions
With a reinforced forged body and precision-machined components, the W216 clip maintains a tight, reliable grip even under continuous lateral impact from high-tonnage cranes.
Stable Performance Under Vibration
The vulcanized rubber insert cushions the rail flange, reducing metal fatigue and damping noise while keeping consistent clamping force over time.
Designed for Compact Crane Systems
Its low-profile geometry fits cranes equipped with horizontal guide rollers or limited vertical clearance, ensuring smooth travel and precise rail alignment.
Proven in Harsh Industrial Environments
From steel mills to container terminals, the W216 rail clip performs reliably in applications exposed to heat, dust, and constant motion.
Technical Specifications & Materials
Specifications:
- Type: W216/20/39
- Max Side Load: 235 kN (24 t)
- Horizontal Adjustment: 20 mm
Dimensions (mm):
- X: 39
- Y (Full Nut): 44
- Y (Thin Nut): 39
- Z: 30
- Weight: 1.62 kg
- With Rail Pad (S): 14 mm plan
- Without Rail Pad (H): 21 mm plan
Material:
- Weldable Grade Steel(Q235 grade custom materials)
- Vulcanized rubber block for controlled force
- Surface treatment:Hot-dip galvanizing for upper parts and bolts; welded base uncoated or galvanized with soleplate upon request
Installation of W216 Rail Clip
The W216 welded base clip must be securely welded to the supporting structure or crane beam using a 4 mm fillet weld.
Use low-hydrogen electrodes such as AWS E7018 or E7028 to ensure a clean, strong weld.
For installations without a rubber pad, omit the weld closest to and parallel with the rail.
If you require a steel soleplate, GloryTrack can supply and pre-weld the base according to your drawings, followed by galvanization upon request.
For full installation details, please contact GloryTrack’s technical team.
Rail Compatibility of W216 Rail Clip
The W216 rail clip fits a broad range of crane rail sections and industrial track profiles. Its 20 mm horizontal adjustment enables accurate alignment across diverse support widths.
Below are commonly matched rail profiles suitable for the W216 clip; customized configurations can be provided upon request.
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Reference for Rail with Pad | Clip Reference for Rail without Pad |
|---|---|---|---|---|---|---|
| P 38 | 114 | 68 | 134 | 38.73 | W216/10/39 (S) | W216/10/39 (H) |
| P 43 | 114 | 70 | 140 | 44.65 | W216/10/39 (S) | W216/10/39 (H) |
| QU 70 | 120 | 70 | 120 | 52.8 | W216/10/39 (S) | W216/10/39 (H) |
| QU 80 | 130 | 80 | 130 | 63.69 | W216/10/39 (S) | W216/10/39 (H) |
| QU 100 | 150 | 100 | 150 | 89 | W216/10/39 (S) | W216/10/39 (H) |
| QU 120 | 170 | 120 | 170 | 118.5 | W216/10/39 (S) | W216/10/39 (H) |
| A 75 | 200 | 75 | 85 | 56.2 | W216/10/39 (S) | W216/10/39 (H) |
| A 100 | 200 | 100 | 95 | 74.3 | W216/10/39 (S) | W216/10/39 (H) |
| A 120 | 220 | 120 | 105 | 100 | W216/10/39 (S) | W216/10/39 (H) |
| ISCR 80 | 130 | 82 | 130 | 64.4 | W216/10/39 (S) | W216/10/39 (H) |
| ISCR 100 | 150 | 102 | 150 | 89 | W216/10/39 (S) | W216/10/39 (H) |
| ISCR 120 | 170 | 120 | 170 | 118.5 | W216/10/39 (S) | W216/10/39 (H) |
| GCR 183 | 280 | 75 | 120 | 183.06 | W216/10/39 (S) | W216/10/39 (H) |
| CR 73 | 140 | 100 | 135 | 73.3 | W216/10/39 (S) | W216/10/39 (H) |
| CR 100 | 155 | 120 | 150 | 100.2 | W216/10/39 (S) | W216/10/39 (H) |
| JIS 50 N | 127 | 64 | 153 | 50.4 | W216/10/39 (S) | W216/10/39 (H) |
| JIS 60 | 145 | 64 | 174 | 60.8 | W216/10/39 (S) | W216/10/39 (H) |
| S 49 | 125 | 67 | 149 | 49.43 | W216/10/39 (S) | W216/10/39 (H) |
| S 54 | 125 | 67 | 154 | 54.5 | W216/10/39 (S) | W216/10/39 (H) |
| MRS 67 (135CR) | 132 | 79 | 146 | 67 | W216/10/39 (S) | W216/10/39 (H) |
| MRS 86 | 165 | 102 | 102 | 85.5 | W216/10/39 (S) | W216/10/39 (H) |
| 56 E 1 | 140 | 70 | 159 | 56.27 | W216/10/39 (S) | W216/10/39 (H) |
| 89 kg CR | 178 | 102 | 114 | 89.8 | W216/10/39 (S) | W216/10/39 (H) |
Why Partner with Glory Track?
① Proven Worldwide
With over 15 years of track fastening expertise, GloryTrack rail clips have been installed in crane rail systems and railway projects across Europe, Asia, and the Middle East.
② Precision Engineering
Each W216 rail clip is precision-machined and inspected under strict quality control to ensure consistent clamping performance and long-term durability.
③ Customized Solutions
From bolted rail clips like the 9116 model to welded base types such as W116 and W216, we deliver flexible rail fastening systems tailored to your project’s technical and load requirements.
Get Your Custom Quote
Contact GloryTrack today for engineering support, 3D drawings, and pricing tailored to your project.
