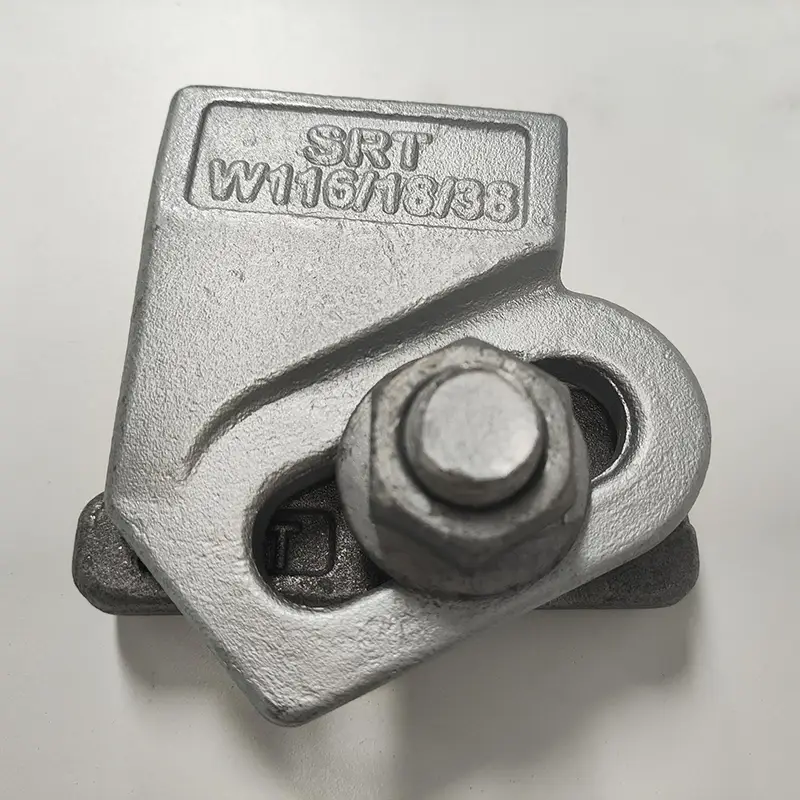

W116 rail clip
The Glory Track W116 rail clip is a welded base rail fixing designed for reliable and durable clamping of heavy-duty crane rails. Its compact, low-profile design makes it ideal for cranes fitted with horizontal guide rollers or installations with limited vertical clearance.
Engineered to withstand a maximum side load of 130 kN (13.3 tonnes), this welded rail clip delivers exceptional lateral restraint and vibration resistance. The forged upper part, together with the vulcanized rubber block, ensures constant pressure on the rail flange—maintaining secure alignment even under dynamic crane movement or impact loads.
Features of W116 Rail Clip
Low-profile welded base — Ideal for cranes with horizontal guide rollers or space-restricted runways.
Vulcanized rubber block — Provides controlled pressure, absorbs vibration, and minimizes wear on rail surfaces.
Self-tightening mechanism — Forged clip and grade 8.8 bolt lock securely during installation for long-lasting retention.
Surface protection — Hot-dip galvanized upper parts and bolts for corrosion resistance; welded base typically left uncoated.
Custom steel soleplates available — Glory Track can weld bases to galvanized soleplates according to client drawings or specifications.
Other models such as 3116 rail clip and 3220 rail clip are also available for bolted fixing systems—see related products for comparison.
Technical Specifications & Materials
Specifications:
- Model: W116/18/38
- Max Side Load: 130 kN (13.3 t)
- Horizontal Adjustment: 18 mm
Dimensions (mm):
- X: 38
- Y (Full Nut): 45
- Y (Thin Nut): 42
- Z: 29
- Weight: 0.87 kg
- With Rail Pad (S): 14 mm plan
- Without Rail Pad (H): 21 mm plan
Material:
- Q235 weldable grade steel (alternative grades on request)
- Rubber Block: Vulcanized rubber for controlled pressure
- Surface Treatment: Hot-dip galvanizing for upper parts and bolts; welded base uncoated or galvanized with soleplate upon request
Installation of W116 Rail Clip
- Step 1 – Weld Base
Weld the clip base to the support beam using 5 mm fillet welds, leaving the side parallel to the rail unwelded. Use low-hydrogen electrodes (AWS E7018 / E7028) for high-strength bonding. - Step 2 – Position Clip
Place the forged clip with the rubber block pressing firmly against the rail flange. - Step 3 – Insert and Tighten Bolts
Insert the M16 bolt and washer, tighten lightly until the clip contacts the rail firmly. - Step 4 – Final Torque
Tap the clip for precise alignment, then torque the bolt to 200 Nm for secure locking. - For detailed welding diagrams or torque charts, contact Glory Track technical support.
Rail Compatibility of W116 Rail Clip
The W116 rail clip is compatible with a wide range of crane rails and industrial track systems. Its 18 mm horizontal adjustment allows flexible alignment for rails mounted with or without pads.
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Reference for Rail with Pad | Clip Reference for Rail without Pad |
|---|---|---|---|---|---|---|
| P 38 | 114 | 68 | 134 | 38.73 | W116/18/38 (S) | W116/18/38 (H) |
| P 43 | 114 | 70 | 140 | 44.65 | W116/18/38 (S) | W116/18/38 (H) |
| QU70 | 120 | 70 | 120 | 52.8 | W116/18/38 (S) | W116/18/38 (H) |
| QU80 | 130 | 80 | 130 | 63.69 | W116/18/38 (S) | W116/18/38 (H) |
| QU 100 | 150 | 100 | 150 | 89 | W116/18/38 (S) | W116/18/38 (H) |
| JIS 37 | 122 | 63 | 122 | 37.2 | W116/18/38 (S) | W116/18/38 (H) |
| ASCE 80 | 127 | 64 | 127 | 39.8 | W116/18/38 (S) | W116/18/38 (H) |
| ASCE 85 | 132 | 65 | 132 | 42.3 | W116/18/38 (S) | W116/18/38 (H) |
| S 20 | 82 | 44 | 100 | 19.8 | W116/18/38 (S) | W116/18/38 (H) |
| S 30 | 108 | 60 | 108 | 30.03 | W116/18/38 (S) | W116/18/38 (H) |
| S33 | 105 | 58 | 134 | 33.47 | W116/18/38 (S) | W116/18/38 (H) |
| S 41 | 125 | 67 | 138 | 41.4 | W116/18/38 (S) | W116/18/38 (H) |
| S49 | 125 | 67 | 149 | 49.43 | W116/18/38 (S) | W116/18/38 (H) |
| A 45 | 125 | 45 | 55 | 22.1 | W116/18/38 (S) | W116/18/38 (H) |
| A 55 | 150 | 55 | 65 | 31.8 | W116/18/38 (S) | W116/18/38 (H) |
| A 65 | 175 | 65 | 75 | 43.1 | W116/18/38 (S) | W116/18/38 (H) |
| A 75 | 200 | 75 | 85 | 56.2 | W116/18/38 (S) | W116/18/38 (H) |
| UIC 54 | 140 | 70 | 159 | 54.43 | W116/18/38 (S) | W116/18/38 (H) |
| UIC 60 | 150 | 72 | 172 | 60.21 | W116/18/38 (S) | W116/18/38 (H) |
| 41 kg AS | 127 | 65 | 136.5 | 40.7 | W116/18/38 (S) | W116/18/38 (H) |
| 56 E1 | 140 | 70 | 159 | 56.27 | W116/18/38 (S) | W116/18/38 (H) |
| MRS 54 | 132 | 65 | 132 | 52.1 | W116/18/38 (S) | W116/18/38 (H) |
