S10 rail

DIN S10 rail is a lightweight steel profile manufactured to DIN 5901 standards, with a weight of 10 kg per meter. Its compact cross-section is ideal for low-speed transport systems in workshops, warehouses, and underground tunnels. The symmetrical shape ensures stable alignment and easy installation. Widely used in light-duty rail applications, S10 offers a reliable, cost-effective solution for track systems.

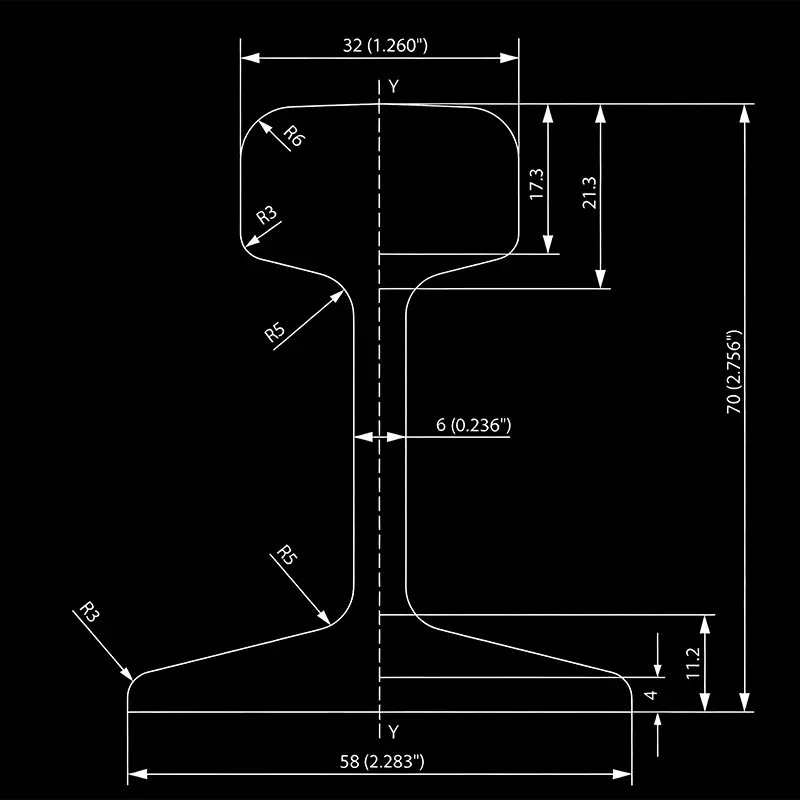

Rail Specification

Height: 70 mm	Base Width: 58 mm
Head Width: 32 mm	Web Thickness: 6 mm
Length: 6m-10m	Material: Q235/55Q
Weight:10 kg/m	Standard: DIN 5901

If you have special requirements for length or higher strength materials, please contact us for special custom production.

DIN S10 Rail Material Properties

DIN 10kg rail is produced using either Q235, a mild carbon steel with excellent weldability, or 55Q, a medium carbon steel offering improved surface hardness and fatigue resistance. Both options meet common indoor and outdoor operational demands.

Custom Processing Options

Our in-house machining services ensure each rail is tailored to your site requirements and installation conditions, offering flexibility, reliable quality control, and fast turnaround to support your project schedule.

Why Choose the S10 Rail

Applications

Used in warehouse trolley systems, factory material transfer lines, and temporary site rail tracks requiring frequent layout changes.

Advantages

Lightweight and easy to handle; compatible with standard clamps; excellent for compact, low-speed rail systems.

Why Glory Track

We bring 15+ years of experience, ISO 9001-certified production, and full control over cutting, drilling, coating, and packaging for consistent quality and delivery.

Get a Fast Quote for DIN S10 Rail:

Required length and processing needs
Quantity and material (Q235 or 55Q)
Packaging and delivery method

We’ll respond within 24 hours with full details and support.
