Rail Clips
Rail clips, also known as rail clamps or fixing clamps, are critical components used to secure crane rails firmly onto baseplates or beams. They maintain track geometry and ensure operational safety by providing consistent clamping force to prevent rail movement under dynamic loads. Unlike traditional rigid connection clips, modern rail clips are designed with flexible connections, making them better suited for crane applications. By bonding vulcanized rubber blocks to the clip caps, these rail clips effectively absorb vibrations and enhance track stability.
Types of Rail Clips

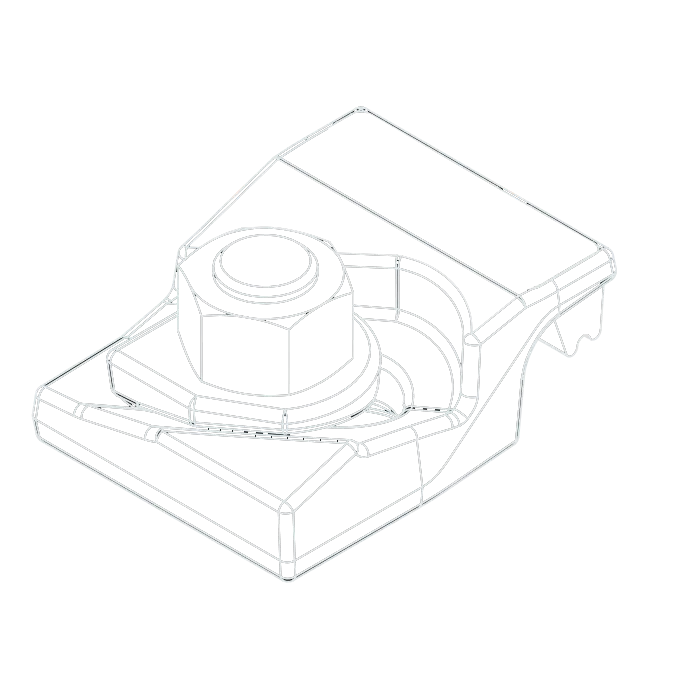

Bolted Type
Bolted Rail Clamps are easy to install and connect to the baseplate using bolts. While they offer lower load-bearing capacity and lower cost compared to welded clips, they are ideal for light to medium-duty crane tracks.
Welded Type
Welded Rail Clamps are composed of upper and lower parts, with the base welded to the baseplates or beams. The installation is more complex, but the design provides higher load-carrying capacity, making them suitable for heavy-duty industrial applications.
Why Rail Clips Are Important
Over time, tracks endure constant vibrations and heavy loading, which can cause rails to loosen if not properly clamped. This can lead to misalignment, safety hazards, and costly maintenance.
Rail clips are designed to provide consistent clamping force, preventing rail displacement. In addition to securing the rails to the baseplates, they also help distribute the load evenly, reducing wear and tear.
Rail clamps with vulcanized rubber blocks provide a cushioning effect, absorbing vibrations and reducing noise. Moreover, they can accommodate the expansion and contraction of steel rails due to temperature changes, ensuring long-term stability and optimal performance.
Horizontal Adjustment Capability
GloryTrack offers rail clamps with horizontal adjustment capability, allowing for precise rail positioning during installation. This feature not only ensures proper alignment from the beginning but also makes it easier to make minor adjustments during maintenance.
FAQ
Can rail clamps be reused after removal?
→ In most cases, bolted rail clamps can be reused if they remain undamaged. However, welded rail clamps are typically cannot be reused once removed.
What materials are GloryTrack rail clamps made of?
→ Our rail clamps are typically made from Q235 or Q355 steel, providing reliable strength and durability. Customized materials can also be used based on specific project requirements.
Do you provide installation guides for rail clamps?
How to Choose Between Bolted and Welded Type Clips？
→ Choosing the right type of rail clip depends on factors like load conditions and maintenance needs. We’ve created a detailed comparison guide to help you make the best decision for your project.”
Tell Us More About Your Project
To recommend the right rail clip, please let us know:
- The rail type or rail section you are using.
- Installation base (concrete foundation or steel beam).
- Whether a rubber pad is installed beneath the rail.
This information will help us recommend the most suitable rail clip solution for your project.
