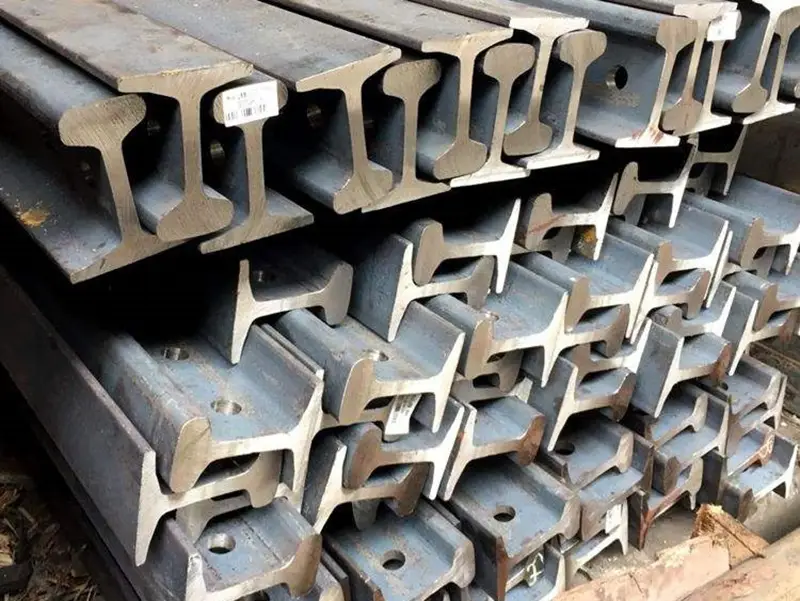

ASCE 25 Rail
ASCE 25 rail is named after its weight per yard and is also known as the 25 lb rail. It is the lightest rail in the ASCE series, with a weight of approximately 12.2 kg/m. ASCE 25 rail is designed for specialized light-duty applications, including small industrial tracks, temporary rail systems, mining tracks, and material handling systems, where cost-efficiency and ease of installation are important. Its lightweight design allows for easy handling and flexible installation in limited-scale projects.
- Lightweight & Easy Handling
- Cost-Efficient Solution
- Ideal for Temporary Tracks

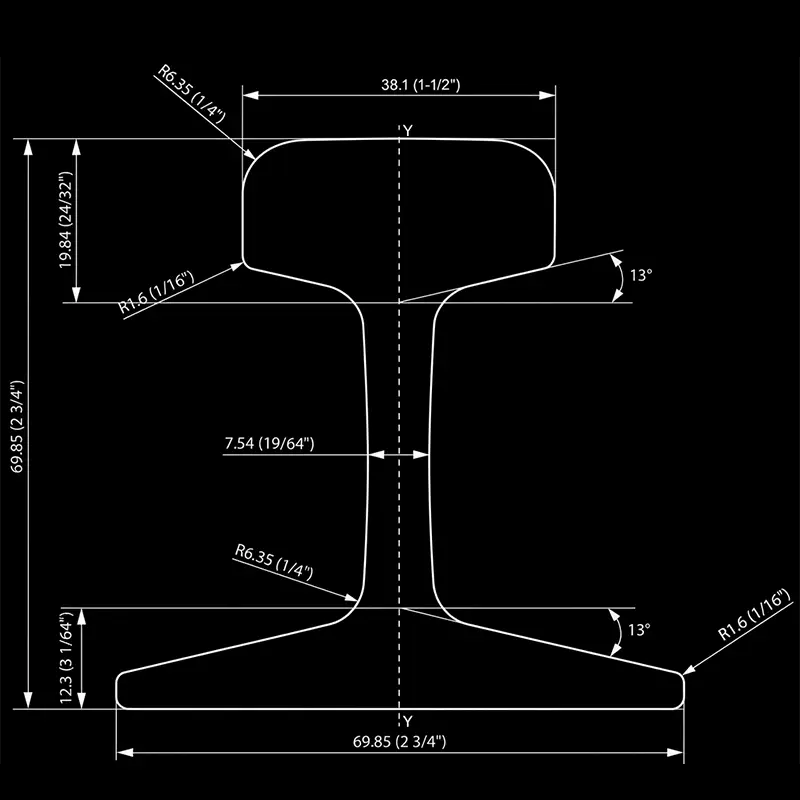

Rail Specification
| Height: 69.85 mm | Base Width: 69.85 mm |
| Head Width: 38.1mm | Web Thickness: 7.54 mm |
| Length: 6m-12m | Material: Q235/55Q/U71Mn |
| Weight: 12.2kg/m | Standard: ASTM A1 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
ASCE 25 Rail Material Grade
The available materials include Q235, 55Q, and U71Mn, with varying mechanical properties and compositions, as shown below.
| Grade | Mechanical Property | Chemical Composition (%) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB / HBW | ≤ | ≤ | ≤ | ≤ | ≤ | ≤ | |||
| Q235 | ≥235 | ≥24 | 375-460 | 38-47 | 26% | – | 0.12-0.22 | 0.35 | 0.3-0.7 | 0.045 | 0.045 | – | – | – |
| 55Q | – | – | ≥685 | ≥69 | – | ≥197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.040 | – | – | – |
| U71Mn | – | – | ≥880 | – | 9% | – | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.03 | 0.03 | 0.25 | 0.25 | 0.25 |
Manufacturing Excellence
Manufacturing Process
ASCE 25 rails are produced through hot rolling process, followed by normalization and controlled cooling, to ensure that their hardness, toughness, and other properties meet ASTM standards for rail microstructure and mechanical performance.
Dimensional Accuracy
Advanced laser profilometry and ultrasonic gauges are used in-line to monitor head height and profile. Cross-sections are continuously matched to ASCE CAD references for geometric consistency.
Testing & Certification
Each batch undergoes ultrasonic, dimensional, and hardness testing. Factory test reports are provided, and third-party inspections can be arranged upon client request for added quality assurance.
ASCE 25 Rail Typical Applications
ASCE 25 rail is designed for light-duty track systems where easy handling, flexible installation, and moderate load requirements are important. Its lightweight profile makes it suitable for industrial, mining, material handling, and selected light crane applications.
Mining & Underground Tracks

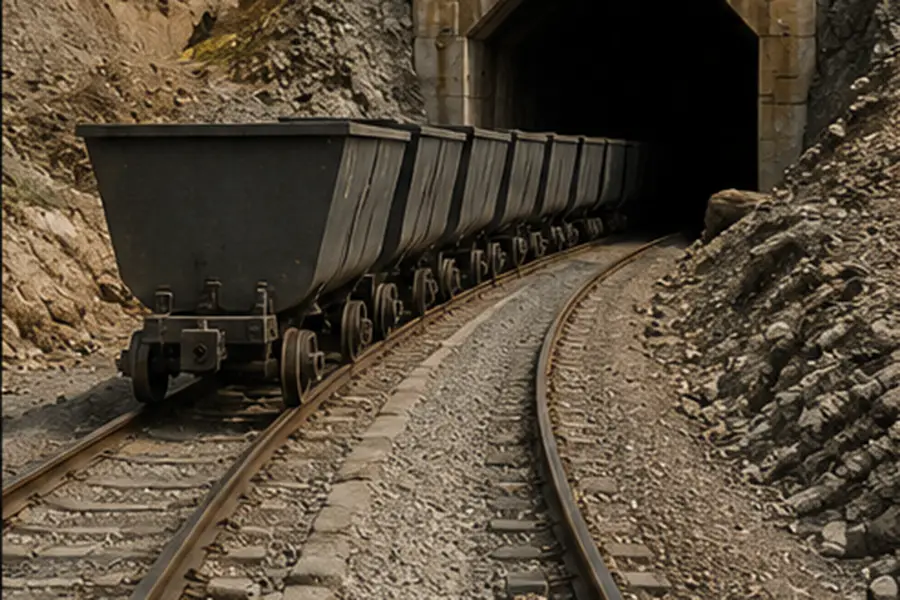

ASCE 25 rail can be used for light-duty mining tracks, underground transportation systems, and temporary rail lines in open-pit mining areas. Its lightweight profile makes rail sections easier to handle and install where working space is limited or track layouts need to be adjusted frequently.
For temporary mining operations, the rail can be cut, drilled, bent, or relocated according to project requirements. Material grades and surface treatments can also be selected based on the operating environment.
Factory & AGV Material Handling Systems

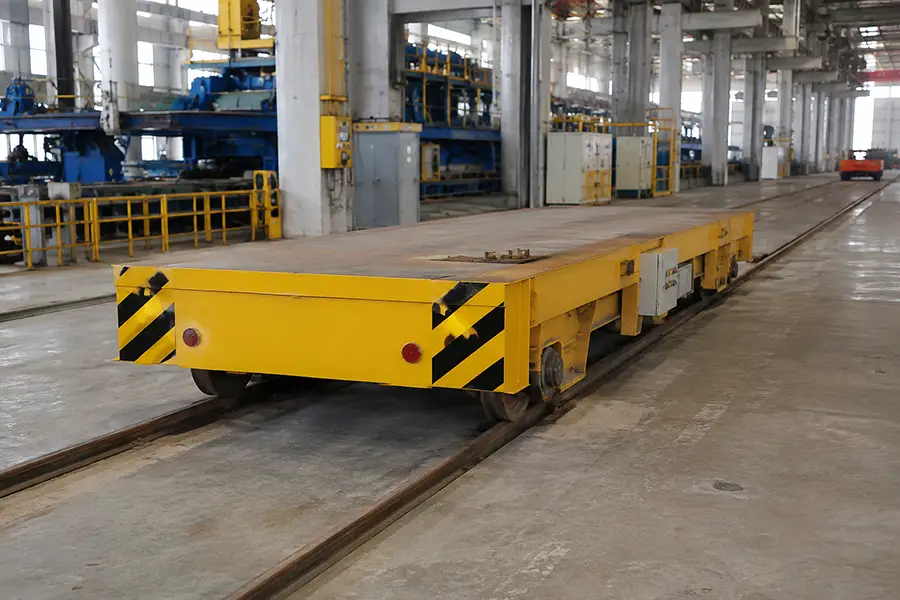

In factories, workshops, and warehouses, ASCE 25 rail can be used for material handling carts, handcarts, rail-guided AGVs, and other light-duty transportation equipment. Its compact profile supports flexible track layouts and can simplify installation when production lines or material flow routes need to be changed.
For light equipment applications, rail selection should be based on actual wheel loads, operating speed, track support, and service conditions rather than equipment weight alone.
Tourist Railways & Scenic Transportation

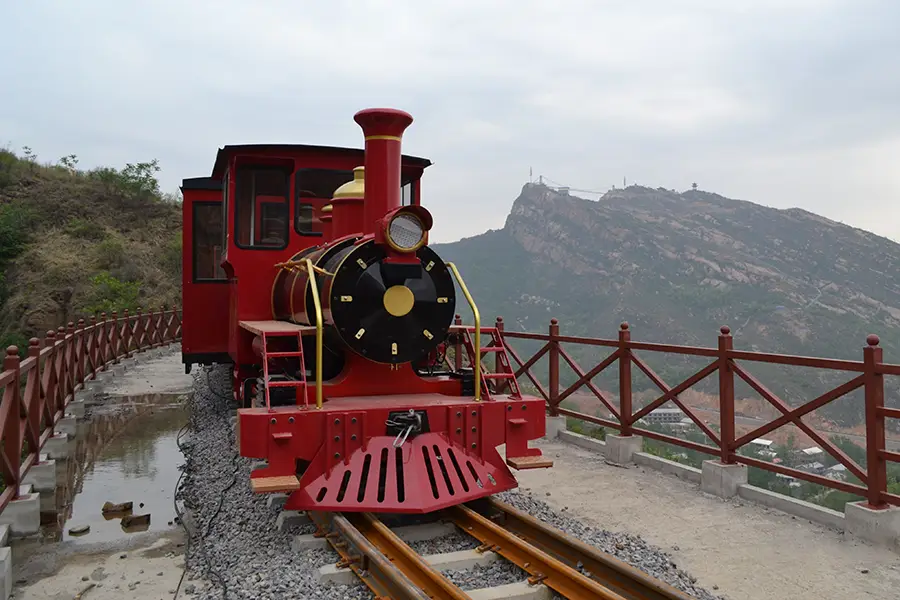

ASCE 25 rail can be considered for lightweight tourist railway tracks, sightseeing trains, and scenic transportation systems where low-speed operation and easy track installation are important. Its lightweight profile makes the rail easier to handle and install, making it suitable for compact routes in parks, resorts, and other recreational areas.
For outdoor scenic railway projects, rail selection should consider vehicle weight, wheel load, operating speed, track gauge, curve radius, and supporting conditions. Surface protection can also be specified for projects exposed to rain or humid environments.
ASCE 25 Rail Customization Options
Rail Bending Solutions
Hot and cold bending services for ASCE 25 rails ensure precise control over curve radii, accommodating various industrial applications that require specific track configurations.
Surface Treatment Options
ASCE 25 rails can be treated with corrosion-resistant coatings or protective oils to enhance durability, ensuring long-lasting performance in diverse environments.
Custom Drilling Services
Custom drilling services for ASCE 25 rails are designed to meet project specifications, with tailored hole sizes and spacing to suit different fastening systems and installation conditions.
End Processing & Finishing
End processing services, including joint shaping, beveling, and slot cutting, are provided for ASCE 25 rails, ensuring accurate and secure connections during installation.
Packaging & Delivery Assurance
- We provide export-standard packaging tailored to ASCE 25 rails, ensuring secure delivery worldwide. Rails are typically strapped with steel bands, supported by wooden blocks, or wrapped in waterproof materials, depending on requirements.
- For additional protection, accessories are securely packed in wooden crates and fastened inside containers to prevent damage during transit. With experience in shipping to regions including Africa, South America, and Southeast Asia, we guarantee safe and reliable delivery from our factory to your project site. Marking and labeling can be customized according to client specifications.
Rail Components You May Need
Looking for a complete rail solution? We also supply compatible components and systems
Rail Fasteners & Clips
Weldable clips, adjustable rail clamps, rail spikes, bolts, and other fastening solutions are available for securing ASCE 25 rail to different supporting structures.
Fish Plates
Fish plates, also known as joint bars, are used to connect adjacent ASCE 25 rail sections and maintain alignment at rail joints. Matching 4-hole joint bars can be supplied in different lengths, typically around 300–500 mm, depending on the required drilling pattern and connection design.
Steel sloeplates
Steel soleplates provide a stable support surface between the rail and its supporting structure. They help distribute wheel loads, maintain rail alignment, and provide a reliable base for rail fastening.
Rubber Pads
Rubber rail pads are installed beneath the rail to reduce vibration, impact, and operating noise while providing a protective layer between the rail and its supporting structure. Different materials and thicknesses can be supplied according to track and noise-reduction requirements.
Alternative & Upgrade Rail Models
If ASCE 25 does not match your required load, rail standard, or project specifications, other rail profiles may be considered. The appropriate alternative depends on wheel load, track design, operating conditions, and applicable standards.
Higher-Capacity ASCE Option
ASCE 30 rail weighs approximately 15.2 kg/m and provides a higher-weight option within the ASCE series for applications requiring greater rail capacity than ASCE 25.
Comparable Lightweight Option
GB 12kg/m light rail is similar in weight class to ASCE 25 and can be considered for light-duty industrial, mining, and material handling tracks where a GB-standard rail is preferred.
JIS Standard Option
JIS 15kg rail is a lightweight rail option for projects requiring a Japanese Industrial Standard profile and can be considered for selected industrial and material handling applications.
Comparable Lightweight DIN Option
S14 light rail weighs approximately 14 kg/m, making it a comparable lightweight option to ASCE 25. Manufactured to DIN 5901, it can be considered for light-duty industrial, mining, and material handling tracks where a DIN-standard rail is preferred.
Frequently Asked Questions
What is ASCE 25 rail used for?
ASCE 25 rail is mainly used for light-duty track systems, including industrial tracks, temporary rail lines, mining transportation, material handling systems, and selected light crane applications.
How much does ASCE 25 rail weigh?
ASCE 25 rail is commonly specified as 25 lb/yd and has a theoretical weight of approximately 12.2kg/m.
What are the dimensions of ASCE 25 rail?
ASCE 25 rail has a rail height of 69.85 mm, base width of 69.85 mm, head width of 38.1 mm, and web thickness of 7.54 mm.
Can ASCE 25 rail be drilled or bent?
Yes. ASCE 25 rail can be customized through drilling, cutting, bending, and other end-processing services according to project drawings and installation requirements.
What accessories are used with ASCE 25 rail?
Common accessories include fish plates or joint bars, rail clips, rail clamps, spikes, bolts, steel soleplates, and rubber rail pads. Insulated joints and other customized components can also be supplied when required.
What joint bars are used with ASCE 25 rail?
ASCE 25 rail can be connected using matching fish plates, also known as rail joint bars. Four-hole configurations can be supplied, with hole spacing, bar length, and other dimensions matched to the rail and project requirements.
