A120 Crane Rail
A120 crane rail is engineered for heavy-load and high-frequency operations that surpass the limits of weight options like A100. Following DIN 536 P1:1991 standards, it comes with a 120 mm head width and a weight of 100 kg/m, providing a wider footprint for improved ground force distribution. Thanks to its high-tensile steel composition(often using U71Mn). It performs well under dynamic impact and cyclic stress. This rail is especially suited for environments such as container terminals, bulk handling facilities, and heavy manufacturing lines, where cranes must move swiftly and repeatedly without compromising track durability.
- DIN 536 P1:1991 Compliant
- Mill Test Certificate Available
- Traceable Quality Assurance
Rail Specification
| Height: 105 mm | Base Width: 220 mm |
| Head Width: 120 mm | Web Thickness: 72 mm |
| Length: 6m-12m | Material: 900A/50Mn/U71Mn |
| Weight: 100 kg/m | Standard: DIN536 P1:1991 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
A120 Crane Rail Material Grade
DIN 536 A series rails are commonly manufactured from 50Mn, 900A, or U71Mn, depending on the required mechanical properties.
| Grade | Mechanical Property | Chemical Composition (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| U71Mn | — | — | ≥880 | — | 9% | 260 | 0.65–0.76 | 0.15–0.35 | 1.10–1.40 | 0.030 | 0.030 |
A120 Crane Rail Customization Options
Rail Bending Solutions
We provide hot or cold bending tailored to layout drawings. Each rail is formed with strict tolerance for smooth alignment.Custom curvature ensures compatibility with site conditions. No shape distortion during bending enhances overall track accuracy.
Custom Drilling Services
We perform custom drilling at non-standard positions, such as web or base areas. Drilling patterns follow client drawings precisely. Smooth edges and tight tolerances ensure reliable fastening and long-term use.
Surface Treatment Options
The surface of the rail can be coated with anti-rust oil, paint or zinc coating as required. We will choose the best method for your environment. Coatings resist moisture, chemicals.
End Processing & Finishing
We offer angled cuts, beveling, and shaped joints to improve weld contact and fit. Profiles are customized for each application. All cuts follow your technical drawings.
Built Around Your Crane Track Requirements
From rail length and bending radius to drilling patterns, surface protection, and end preparation, A120 crane rail can be processed to match your project requirements. Share your drawings or specifications with our team for a tailored rail solution.
Rail Components You May Need
Looking for a complete rail solution? We also supply compatible components and systems
Rail Fasteners & Clips
Ensure rail stability and secure installation with durable spikes, bolts, and clips.
Fish Plates
Connect rail sections firmly to maintain track alignment and structural integrity.
Steel soleplates
Distribute loads evenly and protect the base structure while enhancing insulation.
Rubber Pads
Absorb vibration and noise to protect the track and extend its service life.
Why Choose A120 Crane Rail
Exceptional Strength
A120 rails deliver superior strength, ideal for supporting ultra-heavy cranes in demanding industrial and port environments, ensuring reliable performance under extreme loads.
Enhanced Durability
Made with advanced alloy materials, A120 rails resist wear and fatigue, extending service life even during continuous heavy-duty crane operations.
Optimized Load Distribution
The rail’s design ensures balanced load distribution, improving crane stability and reducing stress on infrastructure for safer, smoother operations.
Packaging & Delivery Assurance for A120 Crane Rail

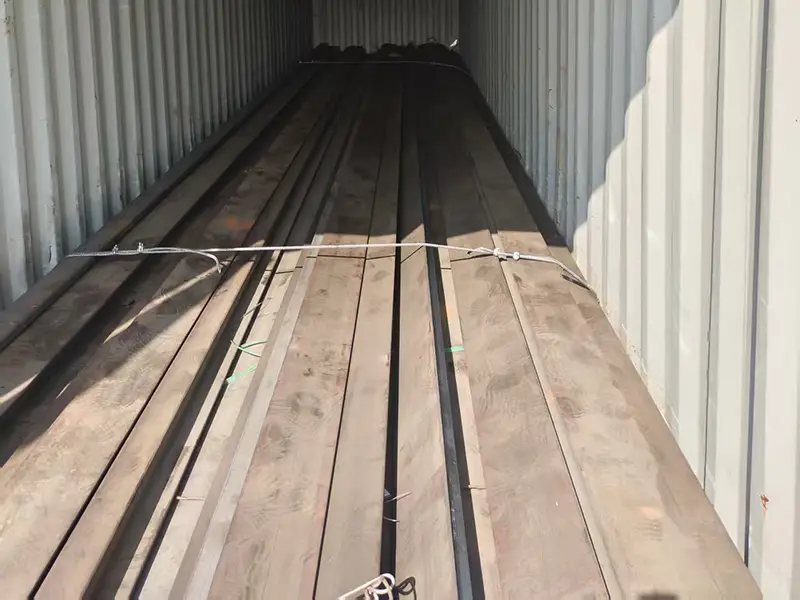

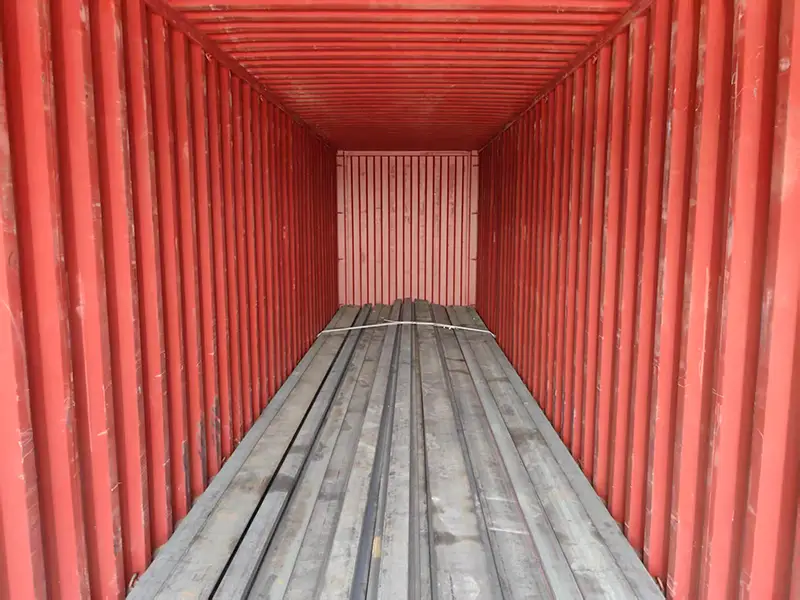

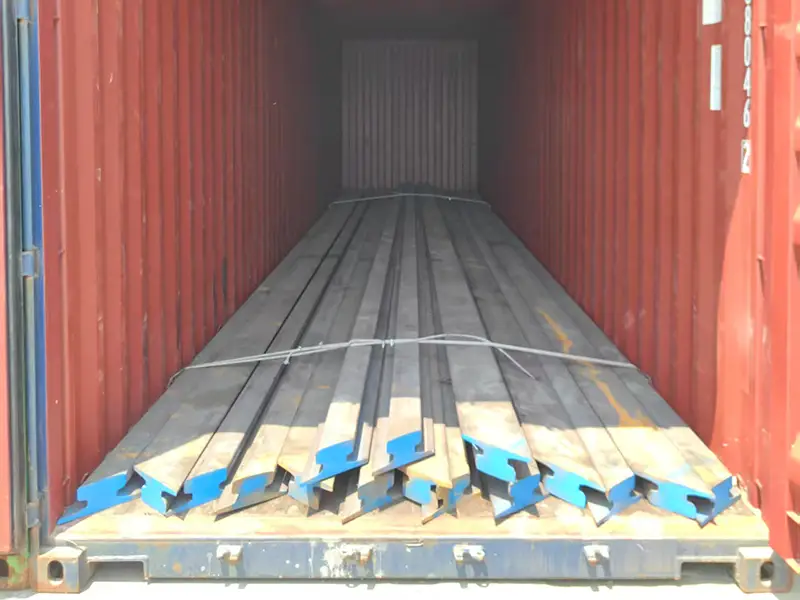

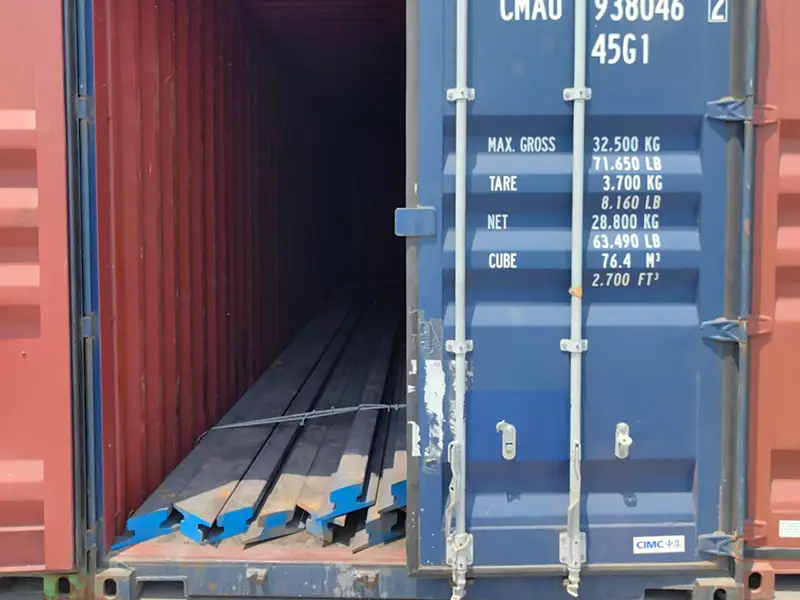

We have years of experience in international deliveries. Our rails are packed using export-standard methods, including steel strapping and wooden block support inside containers. Waterproof materials are available when requested.
Parts and accessories are placed in safe wooden boxes and held tightly to avoid movement.
Our team regularly ships to countries in Africa, America, Asia and Europe, guaranteeing your goods reach their destination safely.
Related DIN 536 Crane Rail Project Cases
FAQ—Customer Concerns for A120 Crane Rail
What is the maximum rail length you can supply?
A120 crane rail is typically supplied in 12 m standard lengths. Custom cutting is available for project-specific requirements, and shorter rail sections can also be produced according to your drawings and installation specifications.
Can A120 crane rail be bent to match a curved runway?
Yes. A120 rail can be processed for curved crane runway applications when the required bending radius and technical drawings are provided. The bending requirements should be confirmed before production.
How is A120 crane rail protected during sea transportation?
Rails are bundled and securely strapped before container loading. Depending on the project requirements, additional protection and supporting materials can be used to keep the rail bundles stable during handling and international transportation.
Can you provide A120 crane rail and fastening components as one package?
Yes. Matching rail fastening components can be supplied with A120 crane rail when required, including rail clips, bolts, rubber pads, and sole plates. The components can be selected according to the rail installation and fastening requirements.
