9116 Rail Clip
The 9116 rail clip is a low-profile welded rail fixing designed for heavy crane rails in demanding industrial applications. Compact and reliable, it can withstand a horizontal force of 55 kN (5.6 tonnes), ensuring stability and safe operation even in tight spaces. Its minimal installation height allows compatibility with cranes fitted with horizontal guide rollers.
Features of 9116 Rail Clip
Proven welded design, trusted worldwide for decades.
Integrated forging steel clip with vulcanized rubber block provides controlled clamping force while reducing vibration and noise.
Self-tightening mechanism locks clip securely via wedge structure.
Welded base design requires no access from below the steel beam.
Flexible track pressing plate allows lateral adjustment for precise crane rail alignment.
Ideal for heavy crane rails, industrial rails, and railroad applications.
Minimum assembly width – W = Rail width (F) + 100 mm
V = Rail width (F) + 16 mm
Technical Specifications & Materials
Specifications:
- Max Side Load: 55 kN (5.6 t)
- Horizontal Adjustment: 8 mm
Dimensions (mm):
- X: 37
- Y (Full Nut): 38
- Z: 24
- Weight: 0.73 kg
- With Rail Pad (S): 14 mm plan
- Without Rail Pad (H): 21 mm plan
Material:
- Forged steel clip (Q235, customizable on request)
- Vulcanized rubber block for controlled force and reduced vibration
- Weldable base for M16 captive bolts
- Surface: hot-dip galvanizing or special coatings optional
Installation of 9116 Rail Clip
The 9116 rail clip is designed for quick and secure welded installation.

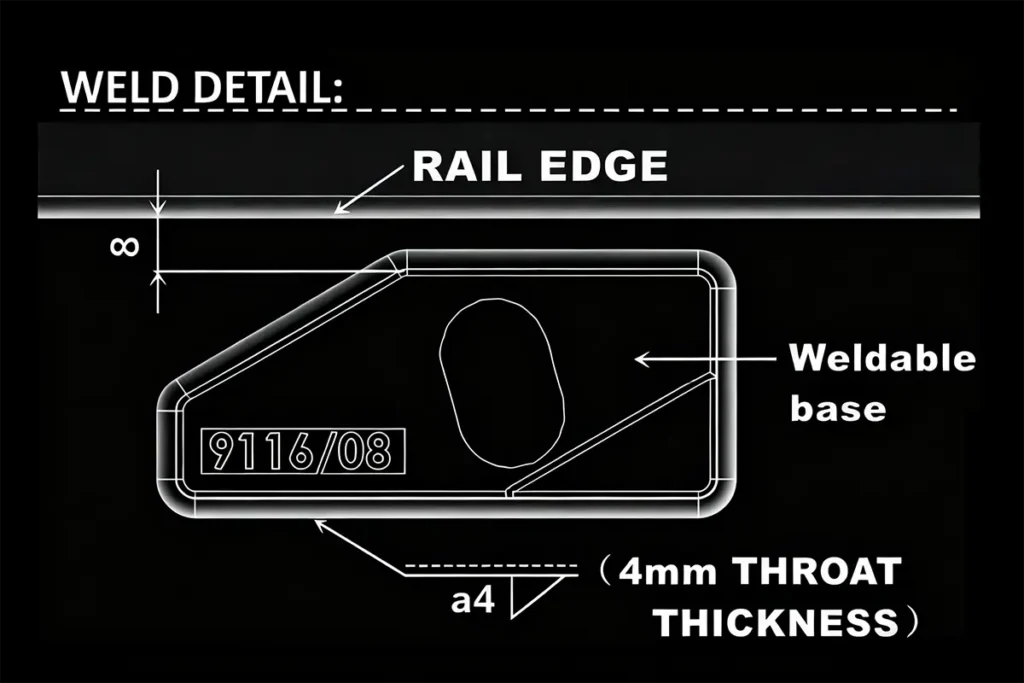

- Weld Clip Base
Align the base with the rail centerline and weld all around except the side closest to the rail (4 mm fillet weld, low-hydrogen electrodes AWS E7018/E7028). - Insert Captive Bolt
Insert M16 captive bolt into the welded base and rotate until snug. - Position Clip Top
Place the clip top with rubber nose on the rail flange, ensuring metal-to-metal contact with base. - Align & Tighten
Lightly compress the rubber nose, tap clip toward the rail for alignment, then tighten nut to 125 Nm (Grade 8.8).
Tip: For full installation guidance or alternative configurations, please consult Glory Track technical support.
Rail Compatibility of 9116 Bolted Rail Clip
The 9116/08/37 rail clip fits a wide range of heavy and industrial crane rails.
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Ref. (with pad) | Clip Ref. (without pad) |
|---|---|---|---|---|---|---|
| QU 70 | 120 | 70 | 120 | 52.8 | 9116/08/37 (S) | 9116/08/37 (H) |
| QU 80 | 130 | 80 | 130 | 63.69 | 9116/08/37 (S) | 9116/08/37 (H) |
| A 55 | 150 | 55 | 65 | 31.8 | 9116/08/37 (S) | 9116/08/37 (H) |
| A 65 | 175 | 65 | 75 | 43.1 | 9116/08/37 (S) | 9116/08/37 (H) |
| A 75 | 200 | 75 | 85 | 56.2 | 9116/08/37 (S) | 9116/08/37 (H) |
| A 100 | 200 | 100 | 95 | 74.3 | 9116/08/37 (S) | 9116/08/37 (H) |
| S 30 | 108 | 60 | 108 | 30.03 | 9116/08/37 (S) | 9116/08/37 (H) |
| S 33 | 105 | 58 | 134 | 33.47 | 9116/08/37 (S) | 9116/08/37 (H) |
| S 41 | 125 | 67 | 138 | 41.4 | 9116/08/37 (S) | 9116/08/37 (H) |
| S 49 | 125 | 67 | 149 | 49.43 | 9116/08/37 (S) | 9116/08/37 (H) |
| JIS 37 | 122 | 63 | 122 | 37.2 | 9116/08/37 (S) | 9116/08/37 (H) |
| ISCOR 48 | 127 | 68 | 150 | 47.6 | 9116/08/37 (S) | 9116/08/37 (H) |
| ISCOR 57 | 140 | 70 | 165 | 57.4 | 9116/08/37 (S) | 9116/08/37 (H) |
| ASCE 80 | 127 | 64 | 127 | 39.8 | 9116/08/37 (S) | 9116/08/37 (H) |
| ASCE 85 | 132 | 65 | 132 | 42.3 | 9116/08/37 (S) | 9116/08/37 (H) |
| 31 kg AS | 108 | 64 | 118 | 31.5 | 9116/08/37 (S) | 9116/08/37 (H) |
| 41 kg AS | 127 | 64 | 137 | 40.7 | 9116/08/37 (S) | 9116/08/37 (H) |
| 50 kg AS | 127 | 70 | 154 | 50.8 | 9116/08/37 (S) | 9116/08/37 (H) |
| UIC 54 | 140 | 70 | 159 | 54.4 | 9116/08/37 (S) | 9116/08/37 (H) |
| ISCR 60 | 105 | 60 | 105 | 40 | 9116/08/37 (S) | 9116/08/37 (H) |
| ISCR 80 | 130 | 82 | 130 | 64.4 | 9116/08/37 (S) | 9116/08/37 (H) |
If your rail profile is not listed, please contact Glory Track for confirmation.
