A75 Crane Rail
A75 crane rail is a reliable option for medium-duty crane systems that require both strength and efficiency. Designed in accordance with DIN 536 P1:1991, it features a 75 mm head width and weighs 56.2 kg per meter. Its wide base and low height offer stable load distribution, making it well-suited for gantry cranes and bridge cranes operating in factories, depots, and maintenance yards. A75 delivers consistent performance under regular use while minimizing installation and upkeep demands.
- DIN 536 P1:1991 Compliant
- Mill Test Certificate Available
- Traceable Quality Assurance

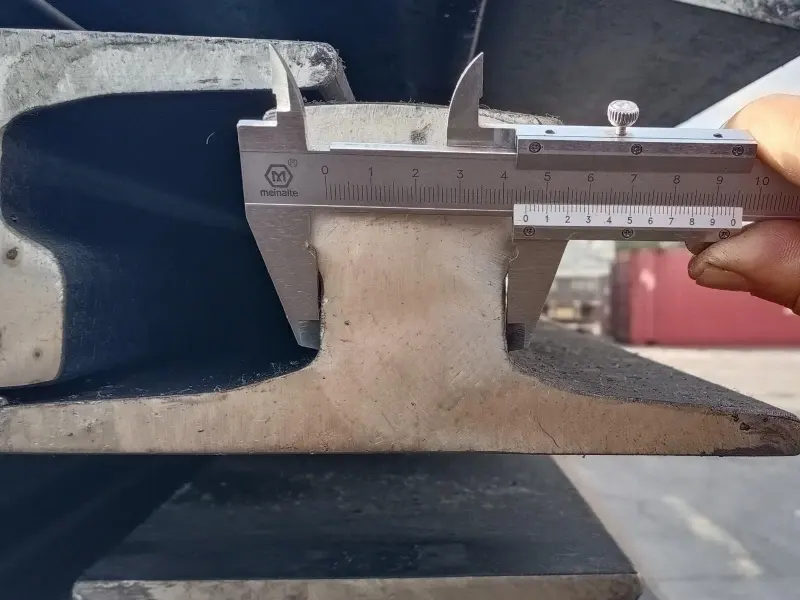

Rail Specification
| Height: 85 mm | Base Width: 200 mm |
| Head Width: 75 mm | Web Thickness: 45 mm |
| Length: 6m-12m | Material: 900A/50Mn/U71Mn |
| Weight: 56.2 kg/m | Standard: DIN536 P1:1991 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
A75 Crane Rail Material Grade
DIN 536 A series rails are commonly manufactured from 50Mn, 900A, or U71Mn, depending on the required mechanical properties.
| Grade | Mechanical Property | Chemical Composition (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| U71Mn | — | — | ≥880 | — | 9% | 260 | 0.65–0.76 | 0.15–0.35 | 1.10–1.40 | 0.030 | 0.030 |
A75 Crane Rail Customization Options

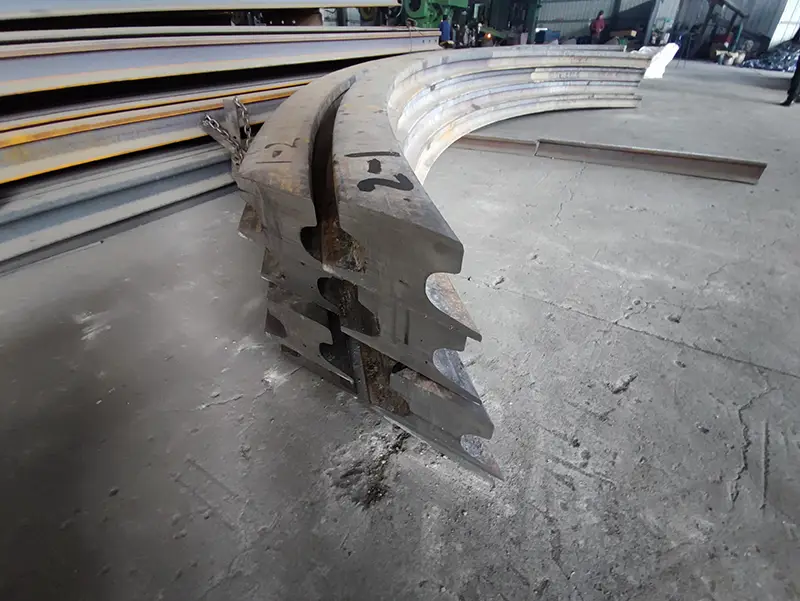

Rail Bending Solutions
We provide hot or cold bending tailored to layout drawings. Each rail is formed with strict tolerance for smooth alignment.Custom curvature ensures compatibility with site conditions. No shape distortion during bending enhances overall track accuracy.

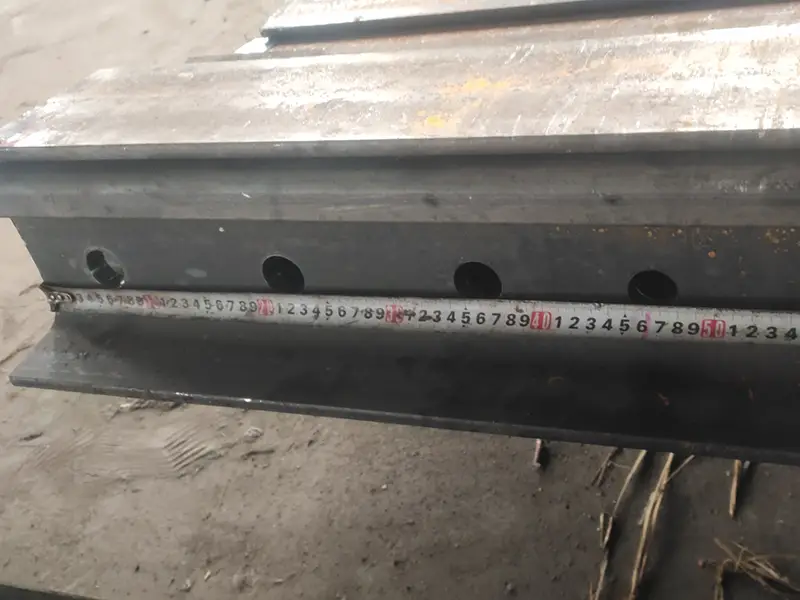

Custom Drilling Services
We perform custom drilling at non-standard positions, such as web or base areas. Drilling patterns follow client drawings precisely. Smooth edges and tight tolerances ensure reliable fastening and long-term use.
Surface Treatment Options
The surface of the rail can be coated with anti-rust oil, paint or zinc coating as required. We will choose the best method for your environment. Coatings resist moisture, chemicals.
End Processing & Finishing
We offer angled cuts, beveling, and shaped joints to improve weld contact and fit. Profiles are customized for each application. All cuts follow your technical drawings.
Get a Quote for A75 Crane Rail
Tell us your required quantity, rail length, grade, machining requirements, and delivery destination. Get a project-specific quotation for A75 crane rail and matching components.
Rail Components You May Need
Looking for a complete rail solution? We also supply compatible components and systems
Rail Fasteners & Clips
Ensure rail stability and secure installation with durable spikes, bolts, and clips.
Fish Plates
Connect rail sections firmly to maintain track alignment and structural integrity.
Steel soleplates
Distribute loads evenly and protect the base structure while enhancing insulation.
Rubber Pads
Absorb vibration and noise to protect the track and extend its service life.
Why Choose A75 Crane Rail?
A75 Vs A65
A75 provides improved dimensional stability and greater load tolerance than A65, making it better suited for larger gantry cranes or bridge cranes in medium-load industrial settings. It also reduces long-term track deformation.
A75 Vs A100
A75 is lighter and more economical than A100, while still supporting mid-duty cranes reliably. It’s ideal where load requirements are moderate but cost-efficiency and long-term wear resistance remain key considerations.
Fit Range
A75 strikes a practical balance between strength and affordability, widely used in logistics zones, medium-scale ports, and fabrication workshops with moderate crane demands. An excellent choice for flexible, high-traffic environments.

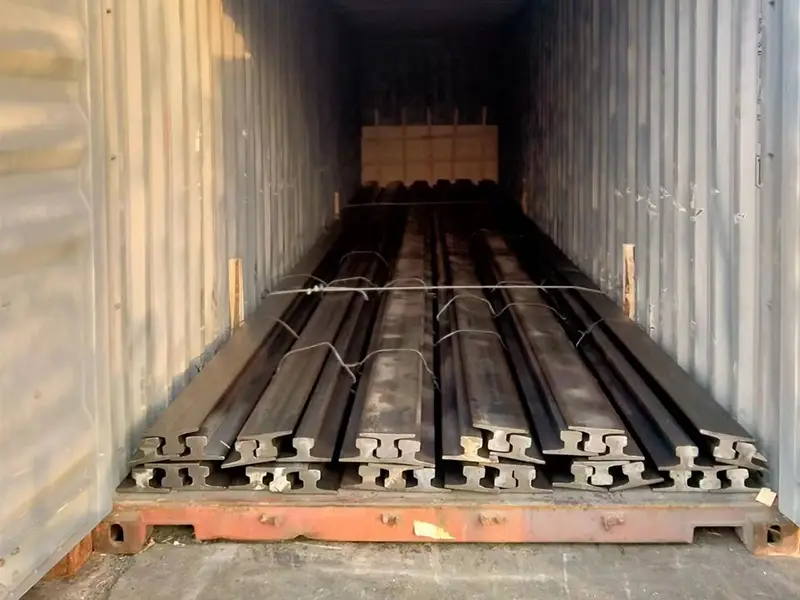

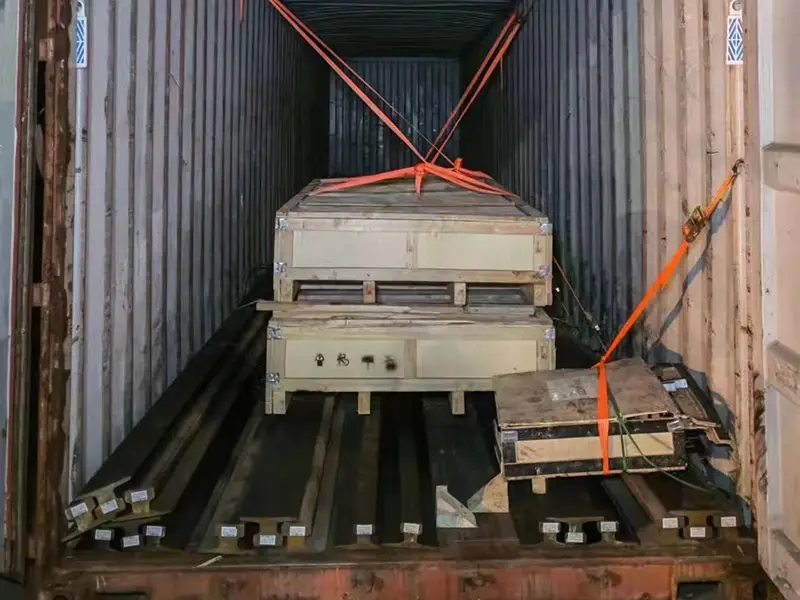

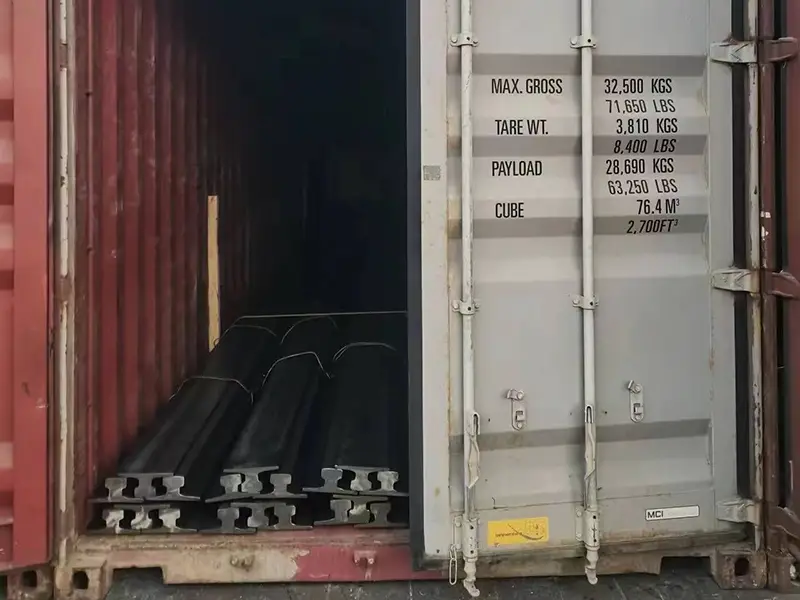

Packaging & Delivery Assurance for A75 Rail
To protect your order during global shipping, we use secure export packaging. Rails are strapped with steel and supported by wood blocks to keep them stable. Waterproof layers can be added when needed.

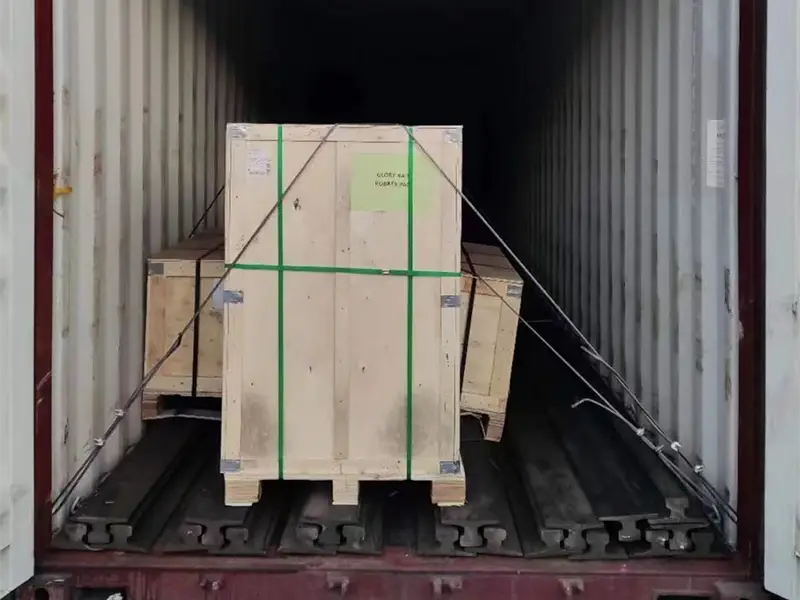

Accessories are packed in wooden crates and fixed firmly in the container.
With experience in shipping to Africa, America, Asia and Europe, we make sure your products arrive safely and on schedule.
Related DIN 536 Crane Rail Project Cases
FAQ—Customer Concerns for A75 Crane Rail
Which rail clips and fastening systems are compatible with A75 rail?
A75 crane rail can be installed with either bolted or welded rail clips. For bolted fastening, Type 3120 or Type 3220 rail clips can be used, while Type 9116 is available for welded fastening. The appropriate fastening system should be selected based on the A75 rail profile, crane wheel loads, runway structure, and installation requirements.
What steel grade is used for A75 crane rail?
A75 crane rail can be supplied in steel grades specified according to the applicable standard and project requirements. Common specifications include U71Mn/900A-type rail steel for applications requiring high strength and wear resistance. The required grade should be confirmed according to the project specification, crane wheel loads, operating conditions, and applicable standard.
What quality documents are available for A75 crane rail?
Quality documentation can include dimensional inspection records, material test results, and a Mill Test Certificate (MTC), depending on the project requirements. Third-party inspection such as SGS can also be arranged when required. Customers can specify inspection, certification, and documentation requirements when requesting a quotation.
What information should I provide when requesting an A75 crane rail quotation?
To quote A75 crane rail accurately, provide the required quantity, rail length, steel grade or standard, machining requirements, fastening components if needed, and delivery destination. If available, also provide crane wheel loads, rail layout drawings, or project specifications. Glory Track can review these details and recommend a suitable rail and fastening solution.
