3220 Rail Clip
The 3220 rail clip is a heavy-duty adjustable crane rail fixing clip designed to secure light and medium rails in demanding industrial applications. With a proven bolted design, it withstands horizontal forces up to 150 kN (15.2 tonnes). Its compact, low-profile structure makes it suitable for cranes fitted with guide rollers, ensuring safe and efficient rail operations. This rail fixing clip is trusted worldwide for crane systems, industrial tracks, and rail projects requiring reliable performance.
Features of 3220 Rail Clip
Proven adjustable rail fixing clip design, used successfully worldwide.
Forged steel clip with vulcanized rubber block applies controlled force to reduce rail wear.
Special washer ensures correct load distribution and secure clamping.
Bolted connection for stable installation, with options for fixing bolts or welded studs.
Ideal for use as a rail clamp for crane rails, industrial rail systems, and heavy-duty tracks.
Technical Specifications & Materials
Specifications:
- Max Side Load: 150 kN
- Horizontal Adjustment: 17 mm
Dimensions (mm):
- X: 38
- Y (Full Nut): 43
- Y (Thin Nut): 38
- Z: 21
- Weight: 1.56 kg
- With Rail Pad (S): 14 mm plan
- Without Rail Pad (H): 21 mm plan
Material:
- Forged steel (Q355 grade custom materials)
- Vulcanized rubber block for controlled force
- Surface finish options include hot-dip galvanizing, or special coatings on request, making the 3220 rail clamp suitable for harsh industrial environments.

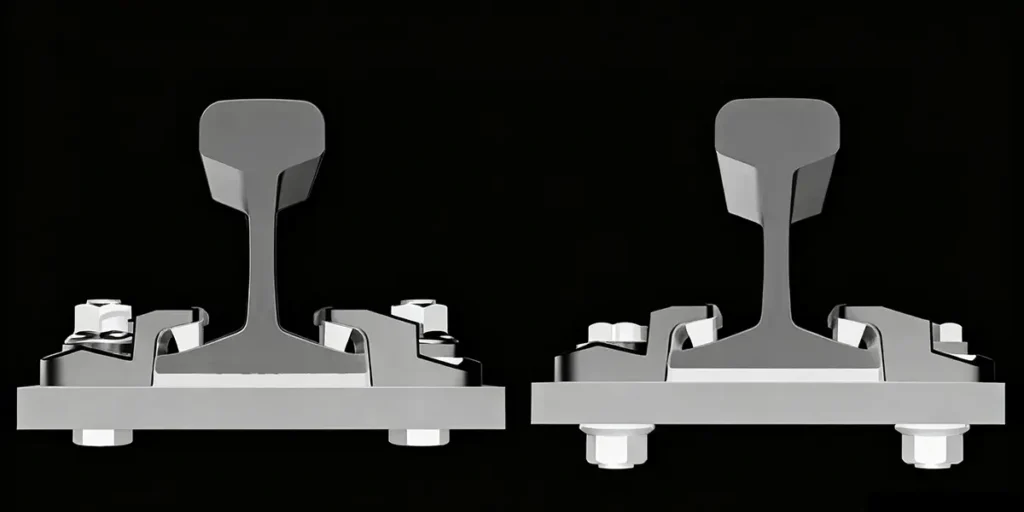

Installation Guide for 3220 Rail Clamp
Installing the 3220 rail clamp is straightforward and follows three key steps:
- Insert & Position
Place the fixing bolt through the rail support and position the forged clip with the rubber block against the rail flange. - Initial Tightening & Alignment
Lightly tighten until the rubber block compresses and the clip contacts the base. Align the clip by tapping toward the rail. - Final Tightening
Tighten the nut to the specified torque, locking the assembly securely. - If welded stud fixing is required, please consult Glory Track, your trusted rail clamp supplier.
Torque Specifications:
- Grade 8.8 bolt: 200 Nm
- Grade 10.9 bolt: 300 Nm
Rail Compatibility of 3220 Rail Clip
The 3220 rail clip is designed for use with crane rails and industrial tracks. It supports both rail installations with pads and without pads, making it adaptable to different crane runway requirements. The table below shows the specific rail profiles compatible with the 3220 clip.
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Ref. (with pad) | Clip Ref. (without pad) |
|---|---|---|---|---|---|---|
| QU 70 | 120 | 70 | 120 | 52.8 | 3120/17/38 (S) | 3120/17/38 (H) |
| QU 80 | 130 | 80 | 130 | 63.69 | 3120/17/38 (S) | 3120/17/38 (H) |
| P 50 | 132 | 70 | 152 | 51.514 | 3120/17/38 (S) | 3120/17/38 (H) |
| JIS 37 | 122 | 63 | 122 | 37.2 | 3120/17/38 (S) | 3120/17/38 (H) |
| UIC 54 | 140 | 70 | 159 | 54.43 | 3120/17/38 (S) | 3120/17/38 (H) |
| UIC 60 | 150 | 72 | 172 | 60.21 | 3120/17/38 (S) | 3120/17/38 (H) |
| 56 E1 | 140 | 70 | 159 | 56.27 | 3120/17/38 (S) | 3120/17/38 (H) |
| S 33 | 105 | 58 | 134 | 33.47 | 3120/17/38 (S) | 3120/17/38 (H) |
| S 41 | 125 | 67 | 138 | 41.4 | 3120/17/38 (S) | 3120/17/38 (H) |
| S 49 | 125 | 67 | 149 | 49.43 | 3120/17/38 (S) | 3120/17/38 (H) |
| S 54 | 125 | 67 | 154 | 54.5 | 3120/17/38 (S) | 3120/17/38 (H) |
| A 65 | 175 | 65 | 75 | 43.1 | 3120/17/38 (S) | 3120/17/38 (H) |
| A 75 | 200 | 75 | 85 | 56.2 | 3120/17/38 (S) | 3120/17/38 (H) |
| A 100 | 200 | 100 | 95 | 74.3 | 3120/17/38 (S) | 3120/17/38 (H) |
| 41 kg AS | 127 | 65 | 136.5 | 40.7 | 3120/17/38 (S) | 3120/17/38 (H) |
| 50 kg AS | 127 | 70 | 154 | 50.8 | 3120/17/38 (S) | 3120/17/38 (H) |
| 53 kg AS | 146 | 70 | 157 | 53 | 3120/17/38 (S) | 3120/17/38 (H) |
| ISCR 60 | 105 | 60 | 105 | 40 | 3120/17/38 (S) | 3120/17/38 (H) |
| ISCR 80 | 130 | 82 | 130 | 64.4 | 3120/17/38 (S) | 3120/17/38 (H) |
| AFNOR 46 | 134 | 62 | 145 | 46.36 | 3120/17/38 (S) | 3120/17/38 (H) |
| BV50 – SJ50 | 133 | 70 | 155 | 50 | 3120/17/38 (S) | 3120/17/38 (H) |
If your rail profile is not listed, please contact Glory Track — your rail clamp supplier — for confirmation and custom solutions.
Why Partner with Glory Track?
① Manufacturing Excellence
Strict quality control and precision forging guarantee consistent clip performance.
② Global Experience
Our rail clamps and crane rail fixing clips are used in railways, ports, and industrial crane systems worldwide.
③ Technical Expertise
We provide expert guidance to select the right rail clamp for crane rails and offer tailored supply solutions.
Get Your Custom Quote
Looking for a reliable rail clamp supplier for heavy-duty crane rail systems?
The 3220 rail clip offers proven performance, adjustable design, and long service life. Contact Glory Track today for a competitive quote and expert support.
