JIS 12kg Rail
The JIS 12kg rail is a light-duty track section manufactured under the JIS E1101-2001 standard, with a nominal weight of 12.2kg per meter. Made from Q235B steel, it features equal height and base width of 69.85mm, offering a stable and balanced profile. This rail is well-suited for applications such as temporary mining lines, construction material handling, factory logistics, and light-duty agricultural or tourism tracks. It delivers cost-effective durability for projects requiring compact and versatile rail systems.
Rail Specification
| Height: 69.85mm | Base Width: 69.85 mm |
| Head Width: 38.1 mm | Web Thickness:7.54 mm |
| Length: 6m-10m | Material: Q235B |
| Weight: 12.2 kg/m | Standard: JIS E 1101-2001 |
Need other steel grades or specific lengths? Contact us for tailored production options.

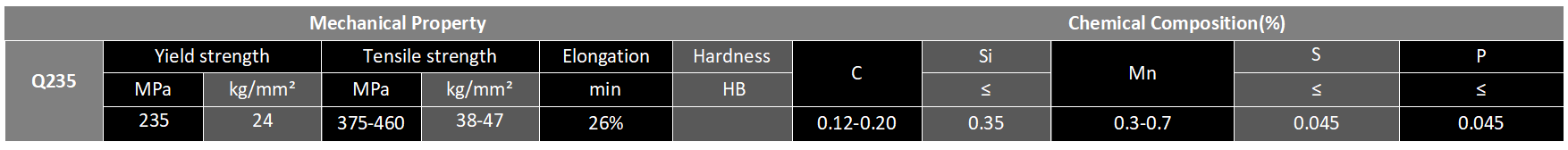

JIS 12kg Rail Material Specifications
JIS light rail is produced using Q235B steel, See the detailed material and mechanical properties in the table below.
Custom Processing Options for JIS 12kg Rail
To accommodate diverse track layouts and ensure quick installation, we provide comprehensive customization services for JIS 12kg rails. Whether for compact industrial setups or temporary track solutions, our experienced team delivers precise manufacturing tailored to your specific project requirements.
- Accurate cutting to your specified lengths

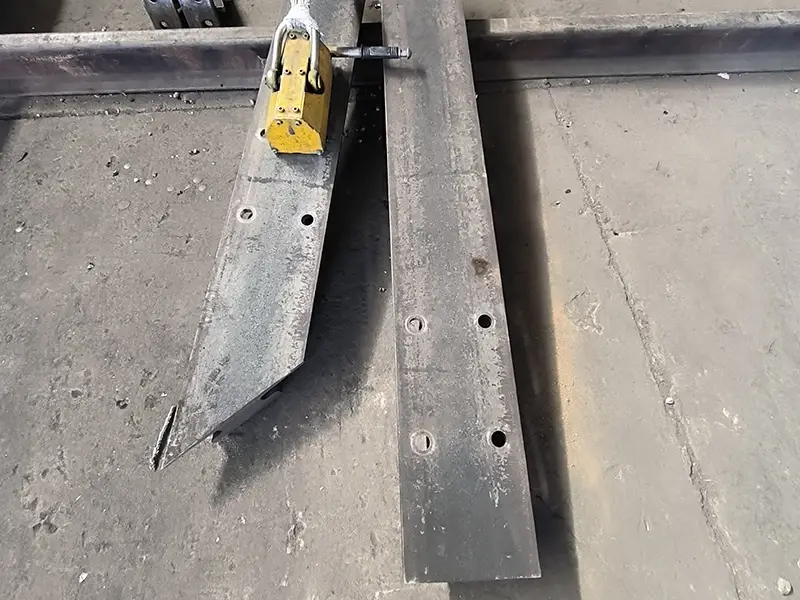

- Drilling holes for easy fastener installation
- Protective anti-corrosion coatings
- End finishing and beveling for seamless assembly
Applications. Advantages. Why Glory Track.
Lifting Use
Ideal for small gantry cranes and overhead rails in workshops or warehouses, 12kg rail supports low-load hoisting tasks like moving lightweight components.
Easy to Adapt
Hot-rolled for better plasticity and formability, this rail is easy to weld and shape—suitable for curves, angled layouts, and site-specific rail design.
Trusted Supply
ISO 9001-certified. 15+ years of rail production. Reliable delivery backed by in-house equipment, strict quality control, and global project experience.
FAQ
Is 12kg rail strong enough for light crane or hoist systems?
→ Yes. 12kg rail offers a balanced strength-to-weight ratio, making it suitable for low-load lifting applications such as small gantry cranes or workshop hoists. For special load conditions, we also offer higher-strength steel grades.
Can you customize the rail to fit curves or tight installation spaces?
→ Absolutely. We provide rail bending, drilling, and cutting services based on your layout drawings. 12kg rail has excellent plasticity, making it ideal for curved tracks or angled layouts.
How long does it take to process and deliver custom JIS rails?
→ Lead time depends on order quantity and processing needs, but small-batch customization is usually completed within 7–10 days. We offer fast shipping options for global delivery.
Request a Quote For JIS 12kg Rail
Planning a low-load rail line in your facility or site?
Need precise cutting or layout-specific customization?
Want fast delivery and clear pricing?
👉 Contact our team for technical support and a personalized quotation.
