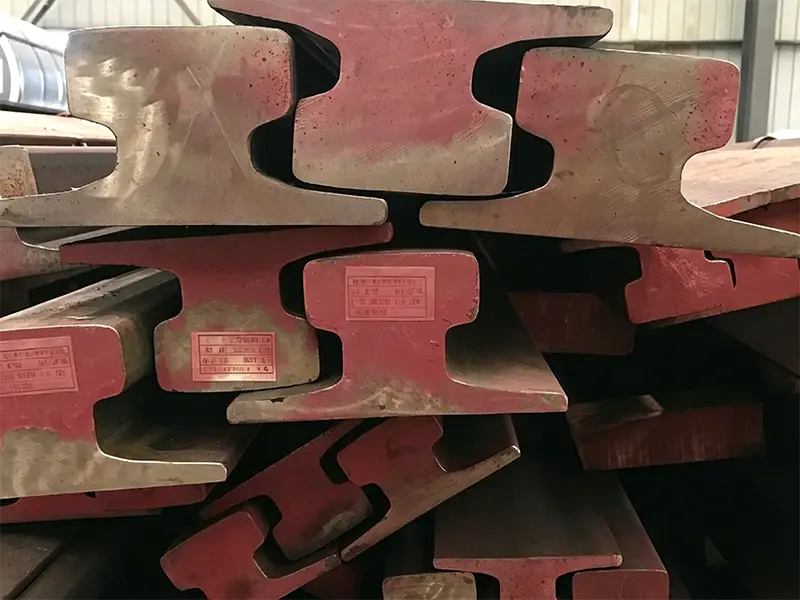

A100 Crane Rail
A100 crane rail offers a substantial upgrade in strength and stability over lighter models like A45 or A65, making it a preferred choice for high-duty crane applications. The wider base of the A100 ensures excellent resistance to deformation under heavy loads. It is commonly installed in steel plants, shipyards, and port terminals where large overhead or gantry cranes operate continuously. The rail’s robust build enhances alignment over time and reduces the need for frequent maintenance, even in demanding work cycles.
- DIN 536 P1:1991 Compliant
- Mill Test Certificate Available
- Traceable Quality Assurance
Rail Specification
| Height: 95 mm | Base Width: 200 mm |
| Head Width: 100 mm | Web Thickness: 60 mm |
| Length: 6m-12m | Material: 900A/50Mn/U71Mn |
| Weight: 74.3 kg/m | Standard: DIN536 P1:1991 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
A100 Crane Rail Material Grade
DIN 536 A series rails are commonly manufactured from 50Mn, 900A, or U71Mn, depending on the required mechanical properties.
| Grade | Mechanical Property | Chemical Composition (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| U71Mn | — | — | ≥880 | — | 9% | 260 | 0.65–0.76 | 0.15–0.35 | 1.10–1.40 | 0.030 | 0.030 |
A100 Crane Rail Customization Options
Rail Bending Solutions
We provide hot or cold bending tailored to layout drawings. Each rail is formed with strict tolerance for smooth alignment.Custom curvature ensures compatibility with site conditions. No shape distortion during bending enhances overall track accuracy.
Custom Drilling Services
We perform custom drilling at non-standard positions, such as web or base areas. Drilling patterns follow client drawings precisely. Smooth edges and tight tolerances ensure reliable fastening and long-term use.
Surface Treatment Options
The surface of the rail can be coated with anti-rust oil, paint or zinc coating as required. We will choose the best method for your environment. Coatings resist moisture, chemicals.
End Processing & Finishing
We offer angled cuts, beveling, and shaped joints to improve weld contact and fit. Profiles are customized for each application. All cuts follow your technical drawings.
Get a Quote for A100 Crane Rail
Tell us your required quantity, rail length, steel grade, machining requirements, and delivery destination. Get a project-specific quotation for A100 crane rail and matching components.
Rail Components You May Need
Looking for a complete rail solution? We also supply compatible components and systems
Rail Fasteners & Clips
Ensure rail stability and secure installation with durable spikes, bolts, and clips.
Fish Plates
Connect rail sections firmly to maintain track alignment and structural integrity.
Steel soleplates
Distribute loads evenly and protect the base structure while enhancing insulation.
Rubber Pads
Absorb vibration and noise to protect the track and extend its service life.
Packaging & Delivery Assurance for A100 Crane Rail

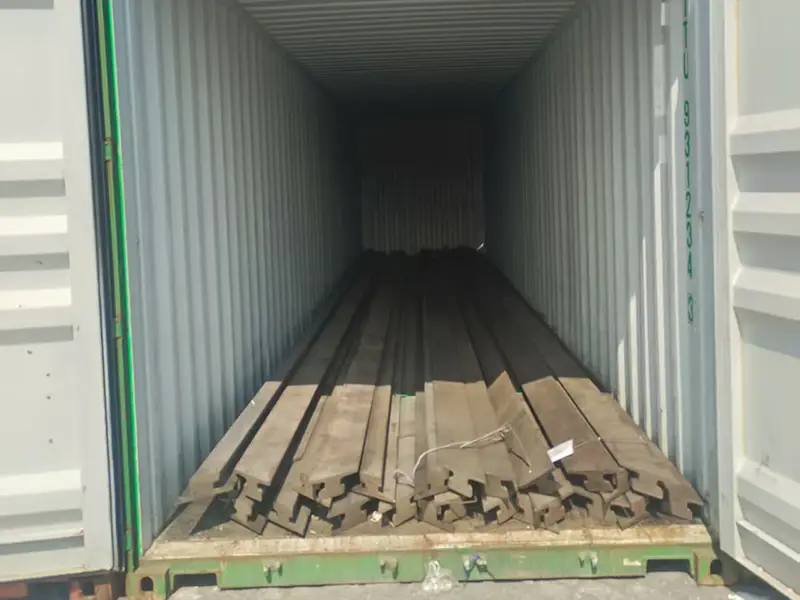

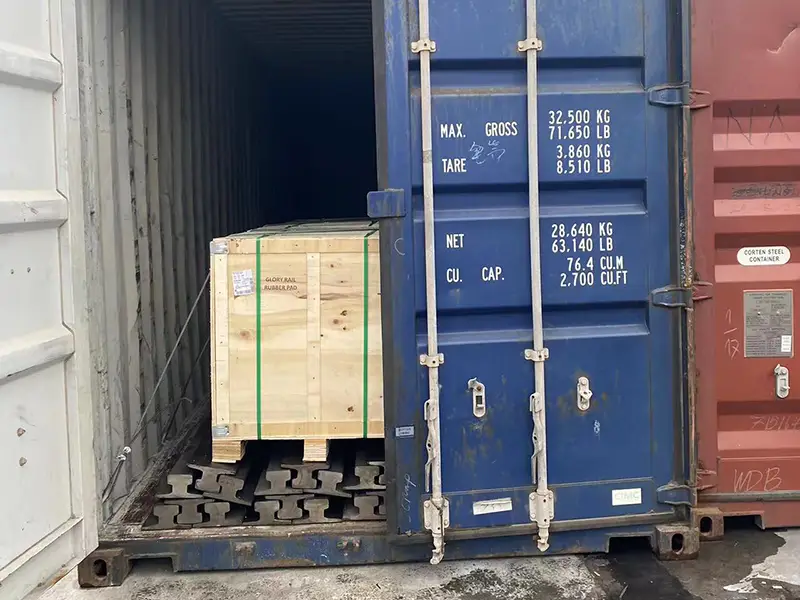

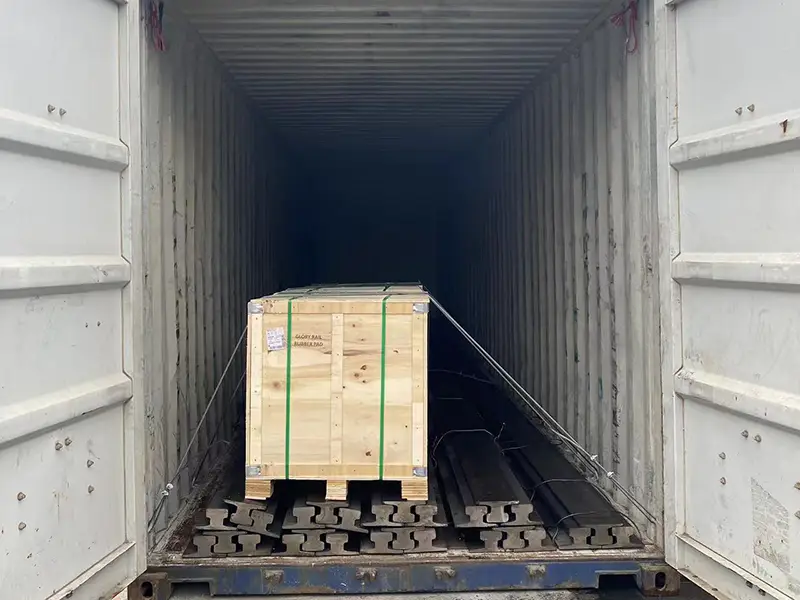

Each shipment is carefully packed to handle long-distance transport. Rails are bundled with steel belts and locked in place with wooden blocks. If there’s a risk of moisture, we can also add waterproof wrapping.

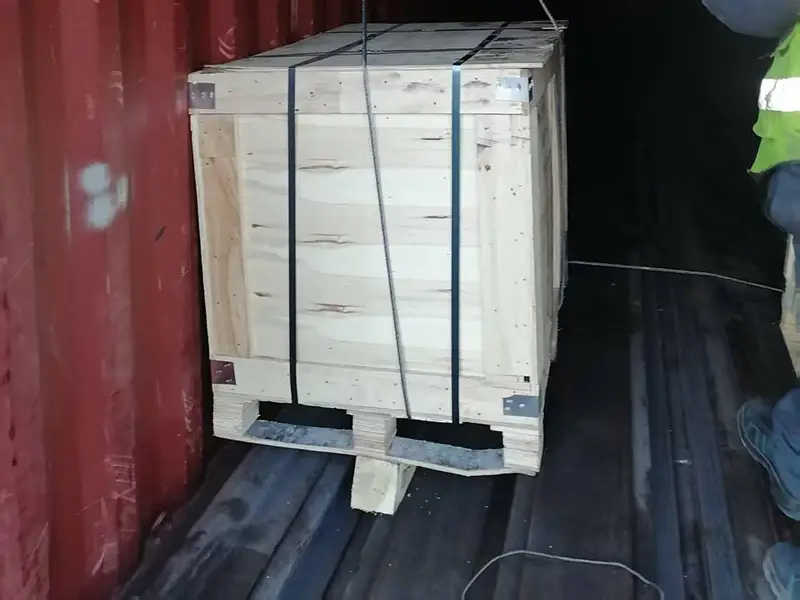

Small components and fittings go into wooden cases, which are secured to prevent shifting during shipping.
We’ve delivered to many project sites in Africa, America, Asia and Europe, always ensuring reliable arrival.
Related DIN 536 Crane Rail Project Cases
FAQ—Customer Concerns for A100 Crane Rail
How do I know if A100 crane rail is suitable for my crane?
A100 is typically considered for crane systems with high wheel loads and demanding operating conditions. Suitability should not be determined by crane lifting capacity alone. Crane wheel load, wheel diameter, crane span, operating frequency, runway structure, and rail support conditions should all be reviewed before selecting the rail profile.
Can I buy A100 crane rail together with the fastening components?
Yes. A100 crane rail can be supplied together with matching fastening components, such as rail clips, rubber pads, soleplates, and anchor bolts. Supplying the rail and matching components together can simplify procurement and ensure better compatibility.
Can you process A100 crane rail according to my drawings?
Project-specific processing can be arranged for A100 crane rail, including cut-to-length sections, drilling, end preparation, and other machining requirements. If the rail requires special processing, provide the relevant drawing or dimensional requirements when requesting a quotation so the processing details can be reviewed before production.
How can I verify the A100 crane rail before shipment?
A100 crane rail can be inspected for dimensions, surface condition, straightness, material properties, and other specified requirements before shipment. Quality documents such as inspection records and a Mill Test Certificate (MTC) can be provided according to the project requirements. Third-party inspection can also be arranged when required.
