ISCOR 22kg Rail

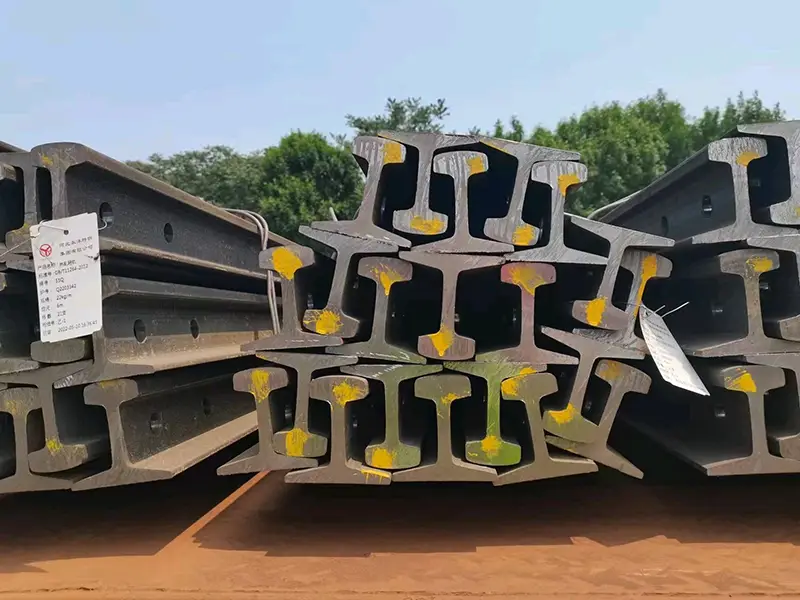

ISCOR 22 kg Rail, named for its 22.54 kg/m theoretical weight under original ISCOR South African SABS industrial rail standards (also referred to as ISCOR 22kg Light Rail or Type 22 ISCOR Rail), is a narrow-gauge industrial rail hot-rolled from Grade 700 / 900A carbon manganese steel to balance tensile strength and wear resistance. With symmetrical equal height & base width profile and solid thick web, it withstands moderate haulage wheel loads and frequent track impacts. The ISCOR 22 kg rail weighs 22.54 kg per meter. They are suitable for medium-light industrial transport loads, such as underground & open-pit mine haulage lines, port yard feeder tracks, factory internal narrow-gauge transit rails, and small industrial mine trolley sidings across Southern Africa.

Specifications of ISCOR 22kg Rail

Height: 95.3 mm	Base Width: 95.3 mm
Head Width: 50 mm	Web Thickness: 9.9 mm
Length: 6m-12m	Material: Grade 700
Weight: 22.54 kg/m	Standard: ISCOR

If you have special requirements for length or higher strength materials, please contact us for special custom production.

ISCOR 22kg Rail Steel Grade & Material

ISCOR 22 kg rail is hot-rolled from Grade 700 manganese steel per ISCOR material standards, with verified chemical and mechanical performance for low-to-medium load narrow gauge lines.

Grade 700	Mechanical Property						Chemical Composition (%)
	Yield Strength		Tensile Strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HB				≤	≤
	≥ 350	≥ 35	≥ 700	≥ 71	≥ 10%	220-260	0.50-0.70	0.15-0.35	0.80-1.30	0.04	0.04

Applications of 22kg Rail

Mining & Quarry Transport

Ideal for 1067mm Cape gauge narrow lines across Southern African mines. It handles light ore trolleys and small haulage vehicles, resisting dust, impact and frequent short-distance transport in open-pit and underground mining sites.

Port & Logistics Yard Tracks

Perfect for container feeder rails, light gantry trolley routes and bulk cargo transfer sidings in African terminals. Its symmetrical wide base delivers stable load bearing under repeated low-speed wheel pressure.

Factory & Industrial Internal Lines

Suited for steel mills, cement plants and workshop transit tracks. This lightweight ISCOR rail serves small material transfer carts and in-plant industrial sidings with easy installation and long service life.

Processing Options for ISCOR 22kg Rail

ISCOR 22 kg rail can be processed in multiple ways to match different project requirements, ensuring easy installation, reliable rail joints, and long-lasting performance in mining, industrial, and light railway systems.

Our processing services help improve installation efficiency and ensure stable track operation under different working conditions.

Our Services Include:

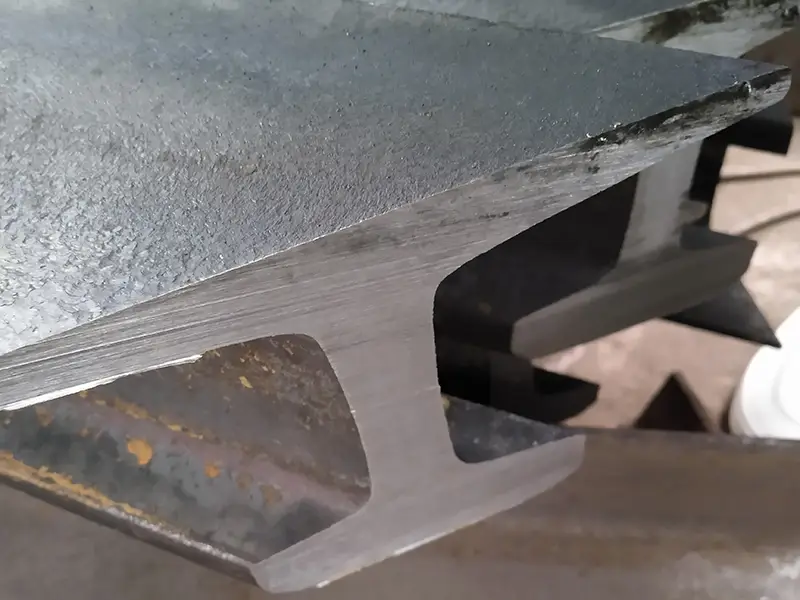

Rail Cutting: Rail can be cut to required lengths.
Drilling & Bolt Holes: Pre-drilled holes available for fishplate connections.
Welding Preparation: Square or beveled rail ends available.

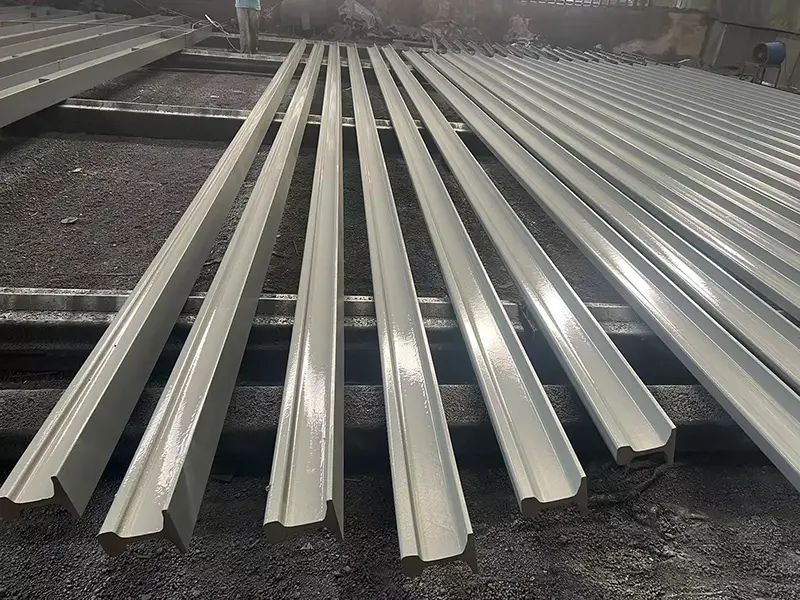

Protective Coating: Anti-rust oil, paint, or galvanized coating.
Short Rail Fabrication: Custom short-length rails available.

ISCOR 22kg Rail Export and Container Loading

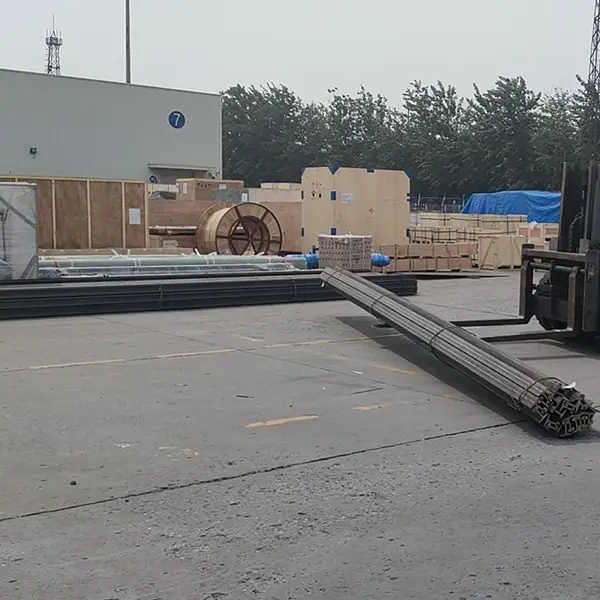

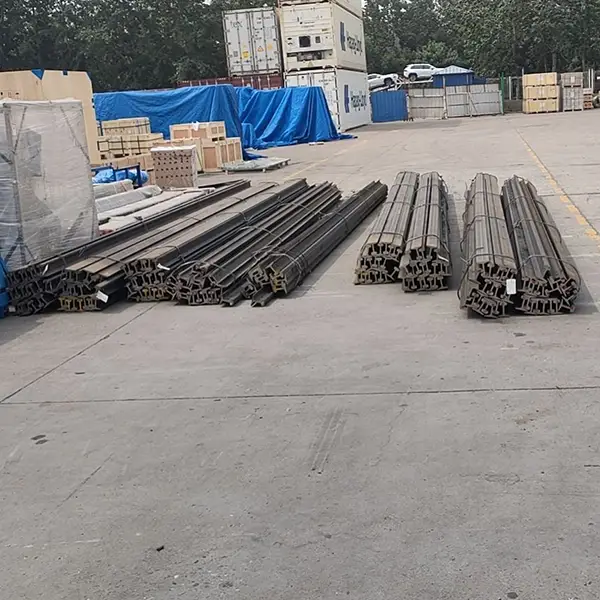

ISCOR 22 kg rail is professionally packed and prepared for international shipment to ensure safe handling and stable transportation. Each bundle is securely strapped and protected to prevent movement and surface damage during long-distance sea freight.

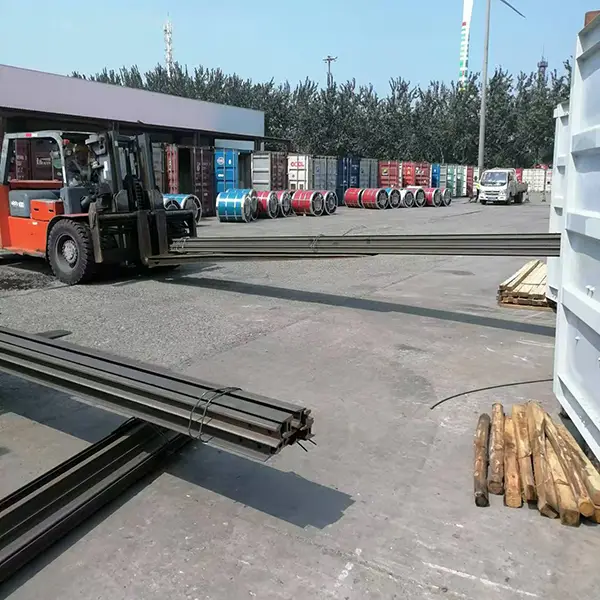

For container loading, rails are efficiently arranged in 20ft or 40ft containers according to length and weight. Proper stacking and reinforcement are applied to maximize space utilization and ensure safe delivery to ports, mining sites, and industrial projects worldwide.

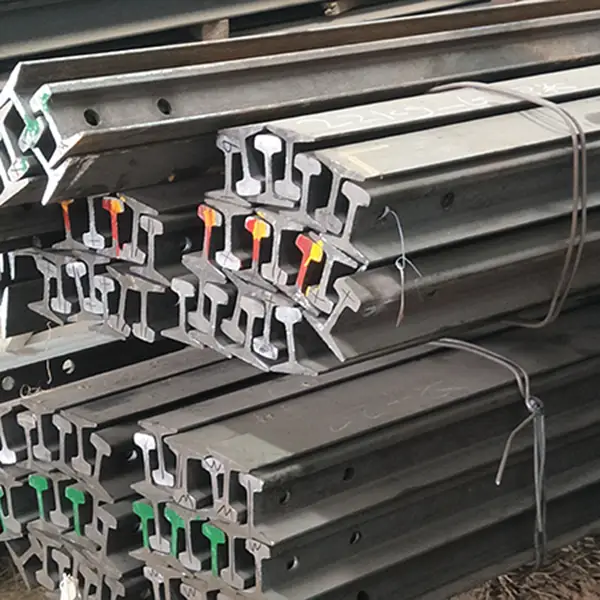

ISCOR 22kg Rail for Sale

ISCOR 22 kg rail is available for global supply, suitable for mining, industrial, and light railway applications. It is manufactured to ensure stable quality, reliable performance, and long service life under different working conditions.

Glory Track provides competitive pricing, flexible customization, and worldwide shipment support. For project inquiries, technical drawings, or quotations, our rail team is ready to assist with fast response and professional solutions.
