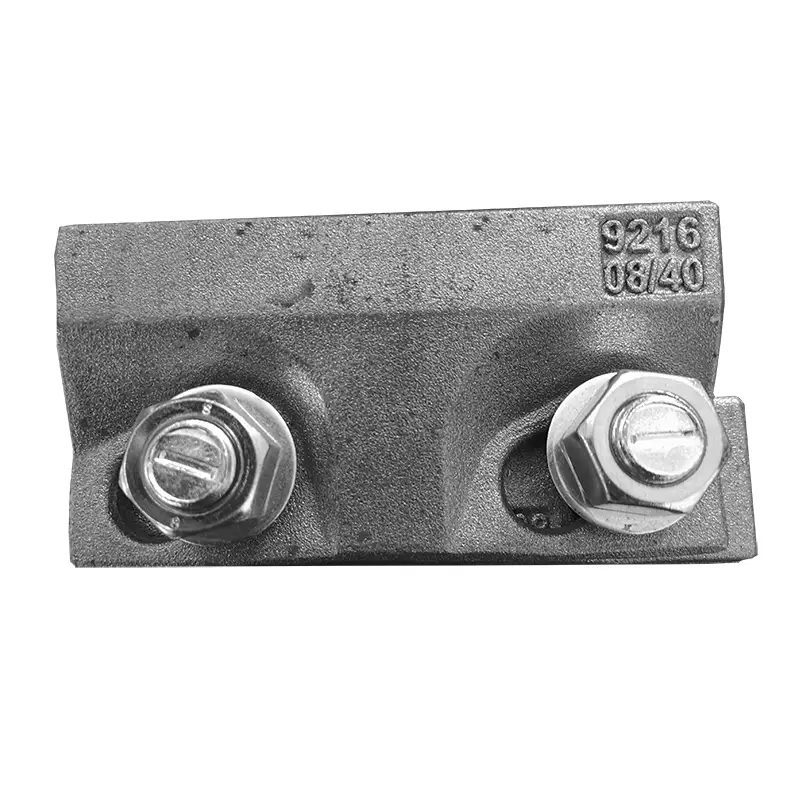

9216 Rail Clip
The Glory Track 9216 rail clip is a double-bolt welded base fixing designed for heavy-duty rail systems. Its twin-bolt structure provides superior clamping stability and distributes load evenly across the rail flange—ideal for high-capacity crane rails, steel mill tracks, and industrial railways.
With a maximum side load of 165 kN (16.8 tonnes), this low-profile rail clip ensures safe and durable fastening even under intense vibration and lateral stress. The vulcanized rubber block delivers controlled pressure, reducing noise and wear while maintaining firm, precise rail positioning.
Features of 9216 Rail Clip
Double-bolt stability — Twin M16 captive bolts enhance load distribution and resistance to lateral movement.
Low-profile structure — Suitable for cranes fitted with horizontal guide rollers and limited vertical space.
Welded base design — Provides a permanent, vibration-resistant connection with no underside access required.
Vulcanized rubber block — Applies consistent pressure, reduces wear and dampens noise.
Self-locking mechanism — Forged body locks automatically as the bolts are tightened for long-term stability.
Technical Specifications & Materials
Specifications:
- Max Side Load: 165 kN (16.8 t)
- Horizontal Adjustment: 8 mm
- Bolt Type: Dual M16 Captive Bolts
Dimensions (mm):
- X: 40
- Y (Full Nut): 46
- Y (Thin Nut): 41
- Z: 28
- Weight: 1.52 kg
- With Rail Pad (S): 14 mm plan
- Without Rail Pad (H): 21 mm plan
Material:
- Q235 (weldable grade steel), alternative grades by request
- Vulcanized rubber block for controlled force
- Surface treatment: hot-dip galvanizing or special coatings available upon request
Installation of 9216 Rail Clip
- Weld Base

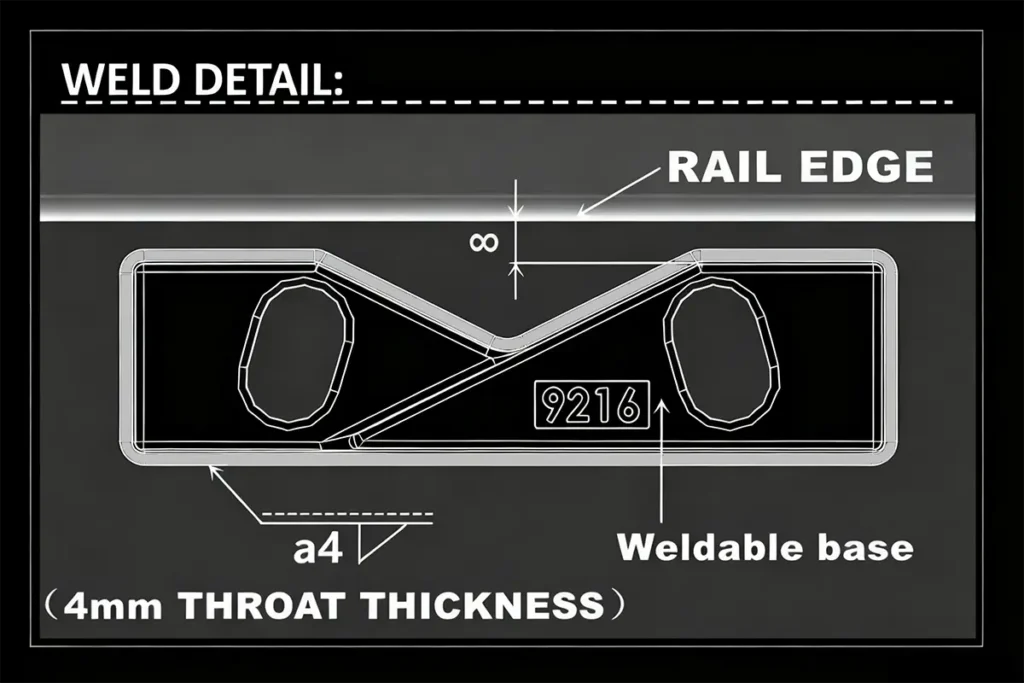

Weld the clip base on all sides except the one parallel to the rail, using 4 mm fillet weld (low-hydrogen electrodes AWS E7018/E7028). - Position Clip
Place the forged clip with vulcanized rubber so the rubber nose presses firmly against the rail flange. - Insert and Tighten Bolts
Insert both M16 captive bolts and washers, tighten lightly until full contact is achieved. - Final Adjustment
Tap clips toward the rail for alignment, then torque both nuts to 125 Nm.
For detailed welding layout or torque charts, contact Glory Track technical support.
Rail Compatibility of 9216 Rail Clip
The 9216 rail clip is designed for heavy and extra-heavy crane rails, accommodating variations in pad thickness and beam alignment. Suitable for applications requiring precise lateral adjustment and enhanced holding strength on wide steel girders. Please refer to the rail compatibility table or consult Glory Track engineers for the most suitable configuration.
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Reference for Rail with Pad | Clip Reference for Rail without Pad |
|---|---|---|---|---|---|---|
| QU 70 | 120 | 70 | 120 | 52.8 | 9216/08/40 (S) | 9216/08/40 (H) |
| QU 80 | 130 | 80 | 130 | 63.69 | 9216/08/40 (S) | 9216/08/40 (H) |
| QU 100 | 150 | 100 | 150 | 89 | 9216/08/40 (S) | 9216/08/40 (H) |
| QU 120 | 170 | 120 | 170 | 118.2 | 9216/08/40 (S) | 9216/08/40 (H) |
| A 75 | 200 | 75 | 85 | 56.2 | 9216/08/40 (S) | 9216/08/40 (H) |
| A 100 | 200 | 100 | 95 | 74.3 | 9216/08/40 (S) | 9216/08/40 (H) |
| A 120 | 220 | 120 | 105 | 100 | 9216/08/40 (S) | 9216/08/40 (H) |
| ISCR 80 | 130 | 82 | 130 | 64.4 | 9216/08/40 (S) | 9216/08/40 (H) |
| ISCR 100 | 150 | 102 | 150 | 89 | 9216/08/40 (S) | 9216/08/40 (H) |
| ISCR 120 | 170 | 120 | 170 | 118.5 | 9216/08/40 (S) | 9216/08/40 (H) |
| GCR 183 | 280 | 75 | 120 | 183.06 | 9216/08/40 (S) | 9216/08/40 (H) |
| CR 73 | 140 | 100 | 135 | 73.3 | 9216/08/40 (S) | 9216/08/40 (H) |
| CR 100 | 155 | 120 | 150 | 100.2 | 9216/08/40 (S) | 9216/08/40 (H) |
| JIS 50 N | 127 | 64 | 153 | 50.4 | 9216/08/40 (S) | 9216/08/40 (H) |
| JIS 60 | 145 | 64 | 174 | 60.8 | 9216/08/40 (S) | 9216/08/40 (H) |
| S 49 | 125 | 67 | 149 | 49.43 | 9216/08/40 (S) | 9216/08/40 (H) |
| S 54 | 125 | 67 | 154 | 54.5 | 9216/08/40 (S) | 9216/08/40 (H) |
| MRS 67 (135CR) | 132 | 79 | 146 | 67 | 9216/08/40 (S) | 9216/08/40 (H) |
| MRS 86 | 165 | 102 | 102 | 85.5 | 9216/08/40 (S) | 9216/08/40 (H) |
| 56 E 1 | 140 | 70 | 159 | 56.27 | 9216/08/40 (S) | 9216/08/40 (H) |
| 89 kg CR | 178 | 102 | 114 | 89.8 | 9216/08/40 (S) | 9216/08/40 (H) |
