9220 Rail Clip
The 9220 rail clip is a dual-bolt welded base type designed for securing heavy-duty crane rails and industrial tracks under extreme loads. Manufactured by Glory Track, a leading rail clip supplier in China, this model ensures strong clamping force, long service life, and reliable performance in demanding rail systems.
Its double M20 captive bolts and welded base fixing provide exceptional stability for crane rail installations exposed to high vibration or side loads.
Features of 9220 Rail Clip
The 9220/20/45 welded base rail clip low-profile design makes it suitable for cranes fitted with guide rollers or systems requiring limited vertical space.
This crane rail clip is designed for long-term use in harsh working environments. The base is welded to the supporting steel structure or soleplate, and the upper parts are hot-dip galvanized for corrosion resistance.
If customers order steel soleplates, Glory Track can pre-weld and galvanize the complete assembly based on customer drawings and project needs.
(If you’re looking for other welded base models, check also our 9216 rail clip and 9120 rail clip for different load capacities.)
Technical Specifications & Materials
Specifications:
- Max Side Load: 235 kN (24.6 t)
- Horizontal Adjustment: 20 mm
- Bolt Type: Dual M20 captive bolts
Dimensions (mm):
- X: 45
- Y (Full Nut): 54
- Y (Thin Nut): 49
- Z: 33
- Weight: 2.67 kg
- With Rail Pad (S): 14 mm plan
- Without Rail Pad (H): 21 mm plan
Material:
- Q235 (weldable grade steel), alternative grades by request
- Vulcanized rubber block for controlled force
- Surface treatment: hot-dip galvanizing or special coatings available upon request
Installation of 9220 Rail Clip
- Weld Base

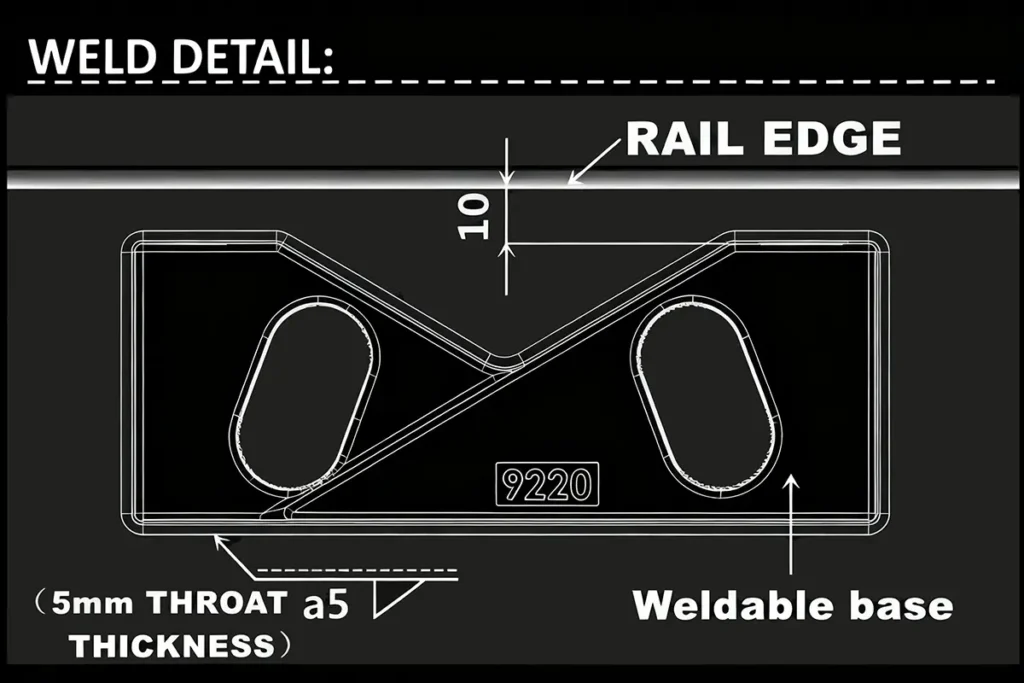

Weld the clip base firmly onto the support beam using a 5 mm fillet weld, leaving the edge parallel to the rail unwelded.
Use low-hydrogen electrodes (AWS E7018 or E7028) to ensure strong bonding and prevent weld cracking. - Position Clip
After positioning the rail, place the 9220 rail clip so that the vulcanized rubber block firmly presses against the rail flange. - Insert and Tighten Bolts
Lightly tighten both captive bolts until the rubber block is compressed and the forged clip makes full contact with the base. - Final Torque
Torque both bolts to 350 Nm to achieve a firm, vibration-resistant, and long-lasting rail fixing.
For detailed welding layout or torque chart, please contact Glory Track technical support.
Rail Compatibility of 9220 Rail Clip
The 9220 rail clip suits heavy crane rails and industrial rail sections, particularly where strong horizontal load resistance is required. It can be used with or without rail pads and easily adapts to various rail widths and beam tolerances. For specific compatibility, please refer to the Glory Track rail dimension chart or contact us for project-based recommendations.
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Reference for Rail with Pad | Clip Reference for Rail without Pad |
|---|---|---|---|---|---|---|
| QU 100 | 150 | 100 | 150 | 89 | 9220/20/45 (S) | 9220/20/45 (H) |
| QU 120 | 170 | 120 | 170 | 118.5 | 9220/20/45 (S) | 9220/20/45 (H) |
| A 100 | 200 | 100 | 95 | 74.3 | 9220/20/45 (S) | 9220/20/45 (H) |
| A 120 | 220 | 120 | 105 | 100 | 9220/20/45 (S) | 9220/20/45 (H) |
| A 150 | 220 | 150 | 150 | 150.3 | 9220/20/45 (S) | 9220/20/45 (H) |
| ISCR 100 | 150 | 102 | 150 | 89 | 9220/20/45 (S) | 9220/20/45 (H) |
| ISCR 120 | 170 | 120 | 170 | 118.5 | 9220/20/45 (S) | 9220/20/45 (H) |
| ISCR 140 | 170 | 140 | 170 | 146 | 9220/20/45 (S) | 9220/20/45 (H) |
| GCR 183 | 280 | 75 | 120 | 183.06 | 9220/20/45 (S) | 9220/20/45 (H) |
| CR 73 | 140 | 100 | 135 | 73.3 | 9220/20/45 (S) | 9220/20/45 (H) |
| CR 100 | 155 | 120 | 150 | 100.2 | 9220/20/45 (S) | 9220/20/45 (H) |
| 73 kg AS | 146 | 70 | 157 | 73.6 | 9220/20/45 (S) | 9220/20/45 (H) |
| 86 kg AS | 165 | 102 | 102 | 85.5 | 9220/20/45 (S) | 9220/20/45 (H) |
| MRS 67 (135CR) | 132 | 79 | 146 | 67 | 9220/20/45 (S) | 9220/20/45 (H) |
| MRS 86 | 165 | 102 | 102 | 85.5 | 9220/20/45 (S) | 9220/20/45 (H) |
| MRS 87 A (PRI85R) | 152 | 102 | 152 | 86.8 | 9220/20/45 (S) | 9220/20/45 (H) |
| MRS 125 | 180 | 120 | 180 | 125 | 9220/20/45 (S) | 9220/20/45 (H) |
| MRS 221 | 220 | 220 | 160 | 221.4 | 9220/20/45 (S) | 9220/20/45 (H) |
| 68 kg AS | 152 | 73 | 186 | 67.6 | 9220/20/45 (S) | 9220/20/45 (H) |
| 89 kg CR | 178 | 102 | 114 | 89.8 | 9220/20/45 (S) | 9220/20/45 (H) |
