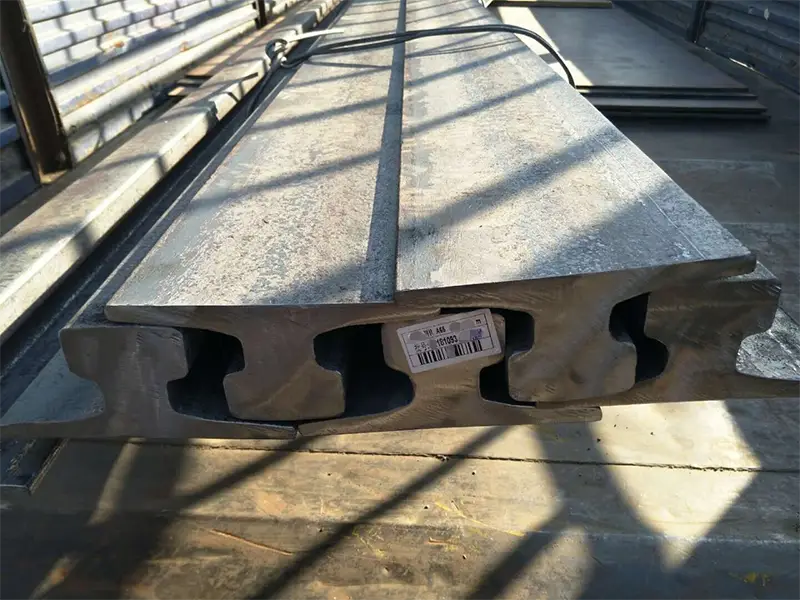

A65 Crane Rail
A65 crane rail is a DIN 536 crane rail profile designed for crane runways, overhead cranes, gantry cranes, and other industrial material-handling systems. With a 65 mm rail head, 175 mm base width, and 43.1 kg/m nominal weight, it provides a stable rail section for medium-load crane applications. Glory Track supplies A65 rail in standard and customized lengths, with matching fastening components and project-specific processing available.
- DIN 536 P1:1991 Compliant
- Mill Test Certificate Available
- Traceable Quality Assurance
Rail Specification
| Height: 75 mm | Base Width: 175 mm |
| Head Width: 65 mm | Web Thickness: 38 mm |
| Length: 6m-12m | Material: 900A/50Mn/U71Mn |
| Weight: 43.1 kg/m | Standard: DIN536 P1:1991 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
A65 Crane Rail Material Grade
DIN 536 A series rails are commonly manufactured from 50Mn, 900A, or U71Mn, depending on the required mechanical properties.
| Grade | Mechanical Property | Chemical Composition (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ||||
| U71Mn | — | — | ≥880 | — | 9% | 260 | 0.65–0.76 | 0.15–0.35 | 1.10–1.40 | 0.030 | 0.030 |
A65 Crane Rail Customization Options
Standard A65 crane rail is available in 12 m lengths. Glory Track also supports project-specific machining, rail-end preparation, hole drilling, straightening, and other processing requirements based on drawings and installation needs.
- Cut-to-Length Rails
A65 rail can be supplied in standard or project-specific lengths. Short rail sections are available for trolley tracks, transfer systems, and compact crane runways. - Rail End Machining
Rail ends can be machined for accurate joint fit and installation. End milling, facing, chamfering, and other end-finishing requirements can be prepared according to project specifications. - Surface Protection
Anti-rust oil, paint, or zinc-based coating can be applied when additional corrosion protection is required. The treatment can be specified according to storage, transportation, or service conditions. - Rail Straightening
- Straightening is available when project requirements call for controlled rail alignment before installation. Processing can be carried out according to specified straightness and dimensional requirements.
Need A65 Rail Processed to Your Specifications?
Send your drawings, required lengths, hole layout, end-processing details, or surface-treatment requirements. Glory Track will review the specifications and provide a suitable processing solution and quotation.
Rail Components You May Need
Looking for a complete rail solution? We also supply compatible components and systems
Rail Fasteners & Clips
Ensure rail stability and secure installation with durable spikes, bolts, and clips.
Fish Plates
Connect rail sections firmly to maintain track alignment and structural integrity.
Steel soleplates
Distribute loads evenly and protect the base structure while enhancing insulation.
Rubber Pads
Absorb vibration and noise to protect the track and extend its service life.
A65 Crane Rail Project Applications
Medium Cranes
Supports medium-tonnage cranes in factories and workshops, providing strong load capacity and reliable stability for regular lifting tasks under moderate to heavy conditions.
Manufacturing Lines
Widely used in production lines, A65 rails ensure smooth, continuous crane operations, enhancing efficiency while maintaining precision and safety.
Logistics Centers
Ideal for medium-weight cargo handling in logistics hubs, often integrated with automated systems to improve material flow and operational speed.
Packaging & Delivery Assurance

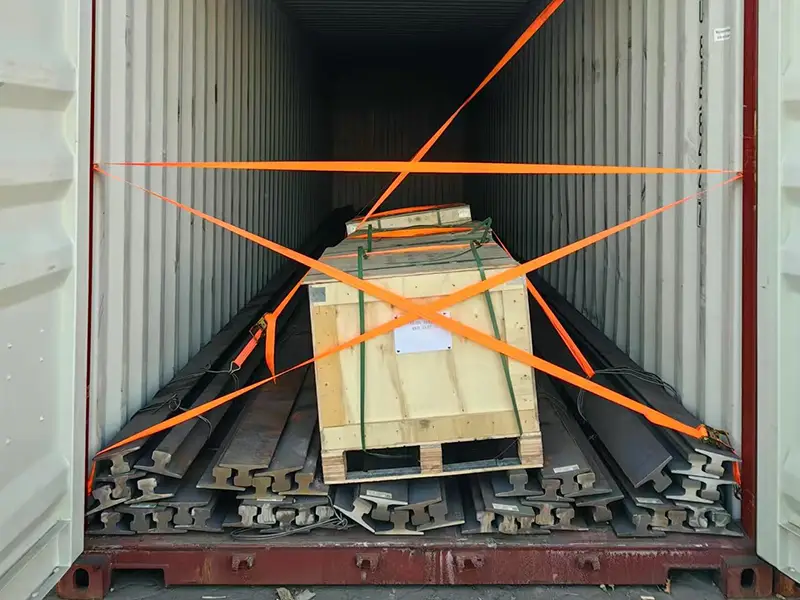

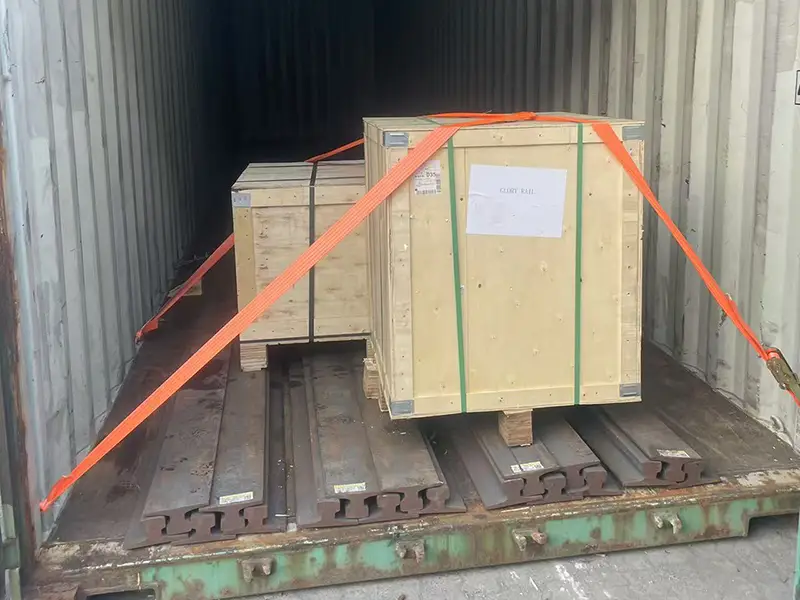

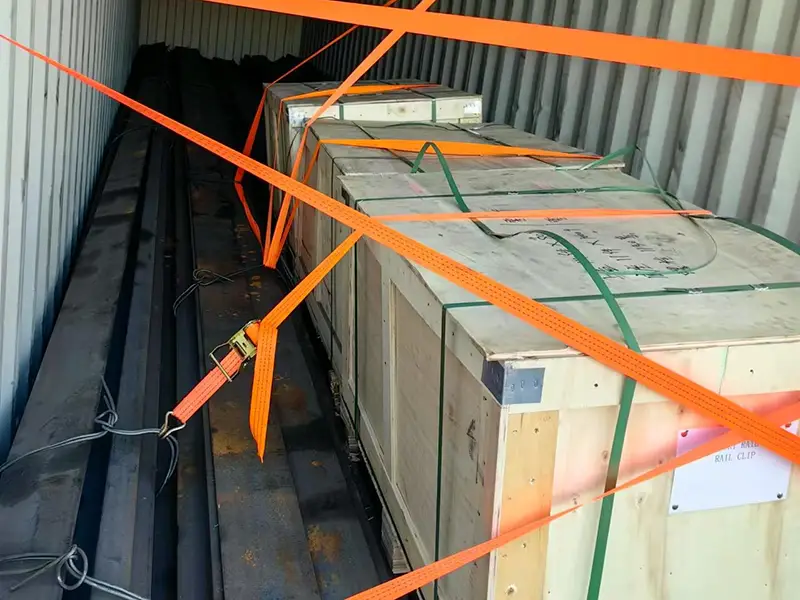

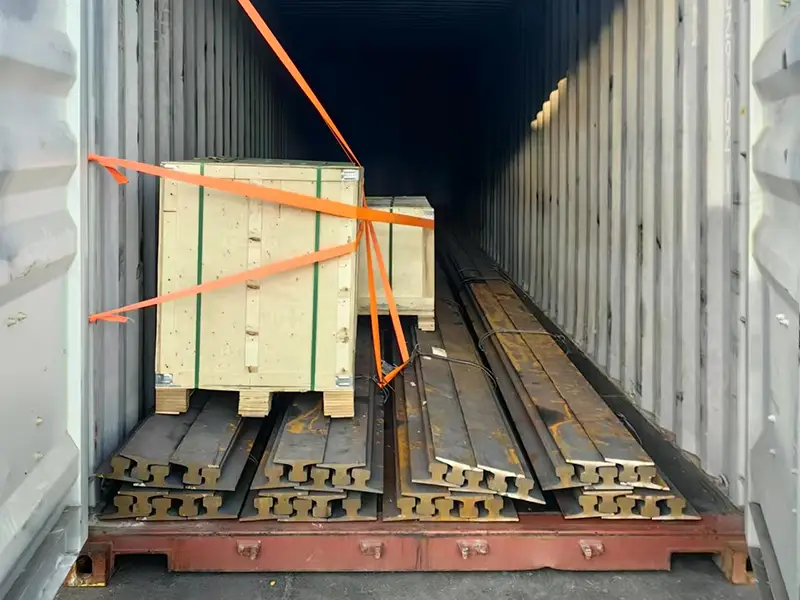

Your product’s safety is our priority. We pack rails using strong steel straps and wooden supports inside containers. If required, waterproof material can be used for extra protection.
All parts and accessories are packed in wooden boxes and are tightly fixed to prevent damage.
With our shipping experience in Africa, South America, and Central Asia, we ensure smooth and timely delivery.
Related DIN 536 Crane Rail Project Cases
FAQ—Customer Concerns for A65 Crane Rail
Can A65 rail be installed on a steel structure?
Yes. A65 crane rail can be installed on steel runway beams or other supporting structures using a suitable fastening arrangement. Rail clips, pads, soleplates, and leveling components can be selected according to the support structure and installation method.
Does A65 crane rail require a rubber rail pad?
A rubber rail pad is not required for every A65 installation, but it can be used between the rail and supporting structure to help distribute contact pressure, accommodate minor surface irregularities, and reduce vibration. The pad specification should match the rail base and runway design.
Does A65 crane rail require corrosion protection for outdoor use?
Not necessarily. A65 rail can be used outdoors without additional corrosion protection in moderate environments, but protective treatment can help extend service life. For highly corrosive conditions, such as coastal areas, humid environments, or chemical plants, hot-dip galvanizing or protective paint can be considered. Hot-dip galvanizing generally provides more durable corrosion protection, while paint systems can be selected according to the required environment and service conditions.
Can A65 crane rail be supplied as a complete runway package?
Yes. Glory Track can supply A65 crane rail together with compatible fastening and joint components, including rail clips, rubber pads, soleplates, fishplates, and bolts. Custom cutting, drilling, end preparation, and other processing can also be arranged for a more complete crane runway supply solution.
