W20-221 Rail Clip

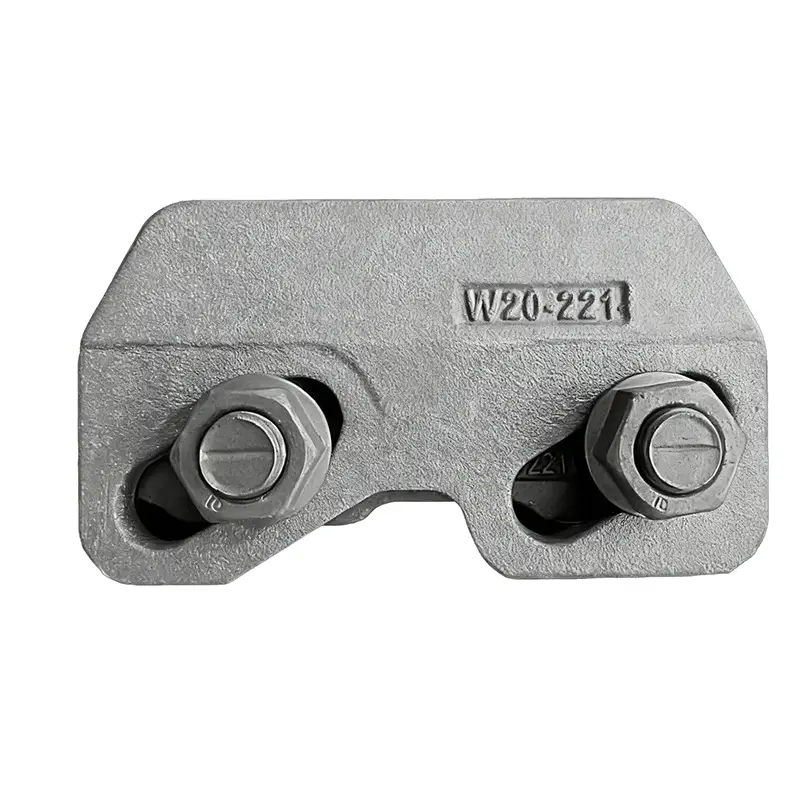

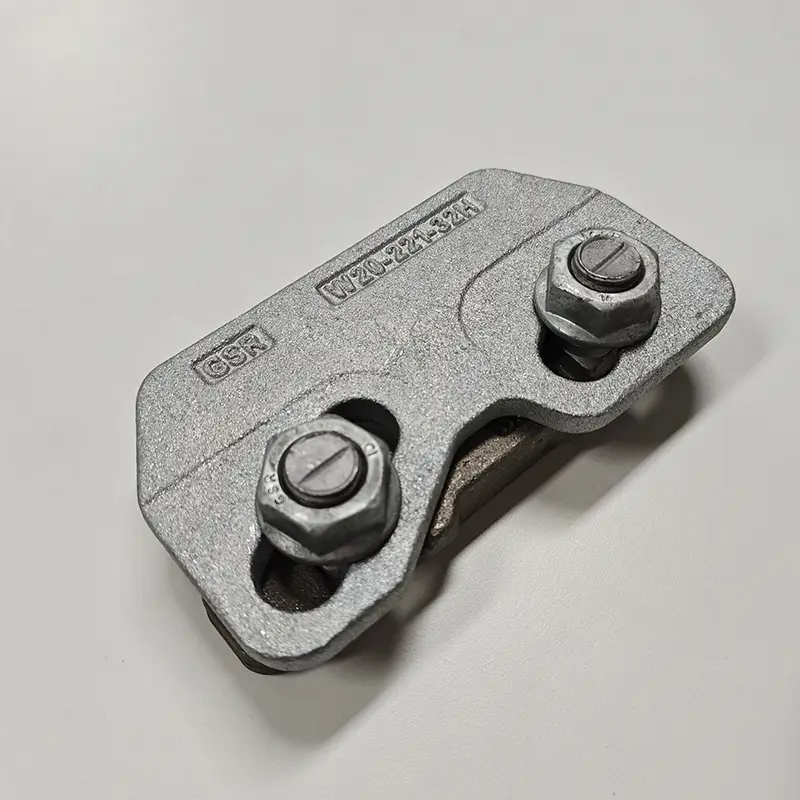

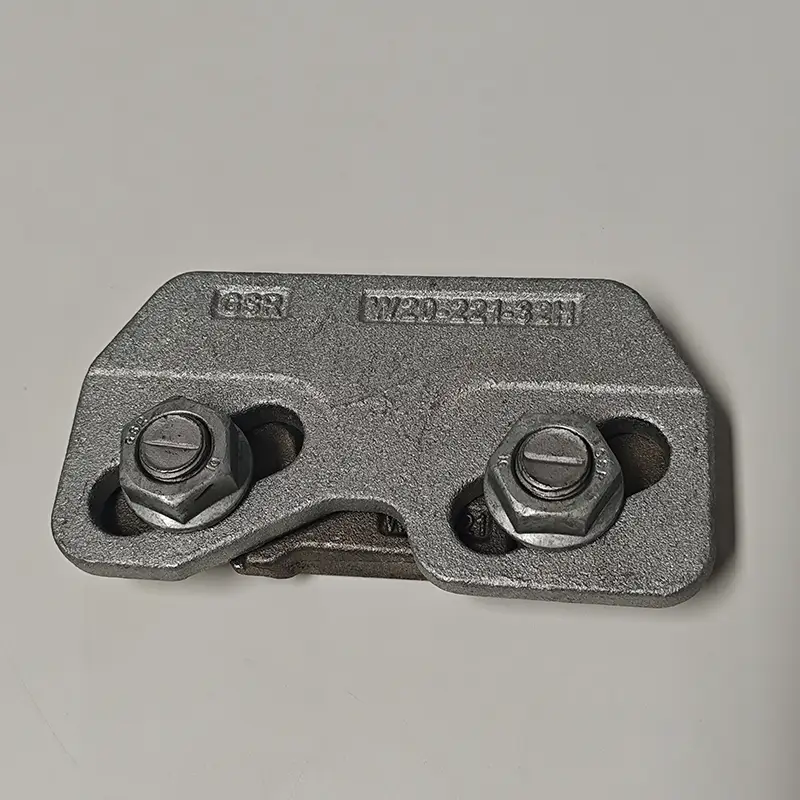

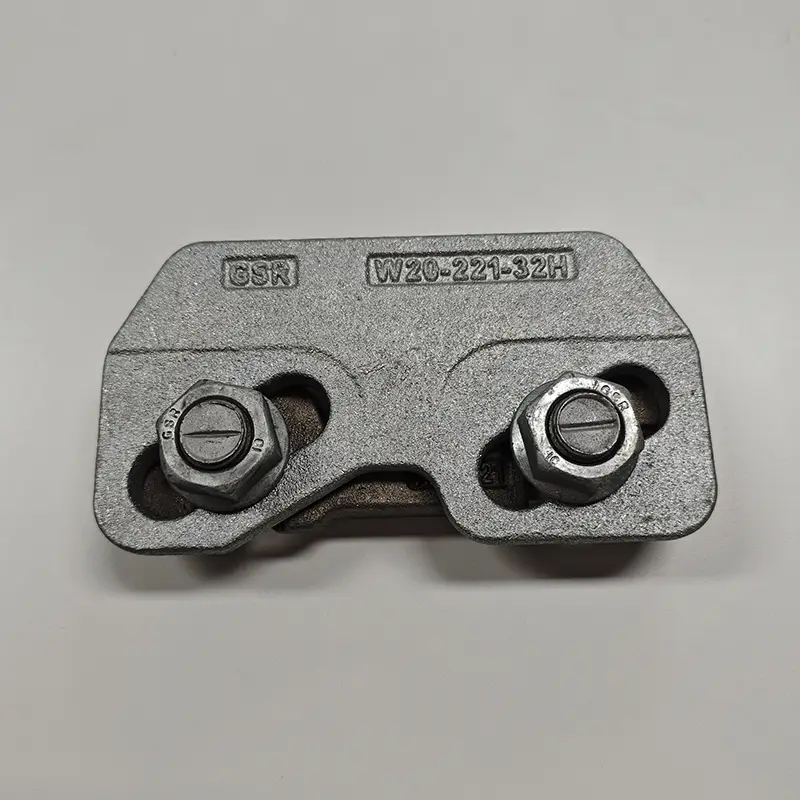

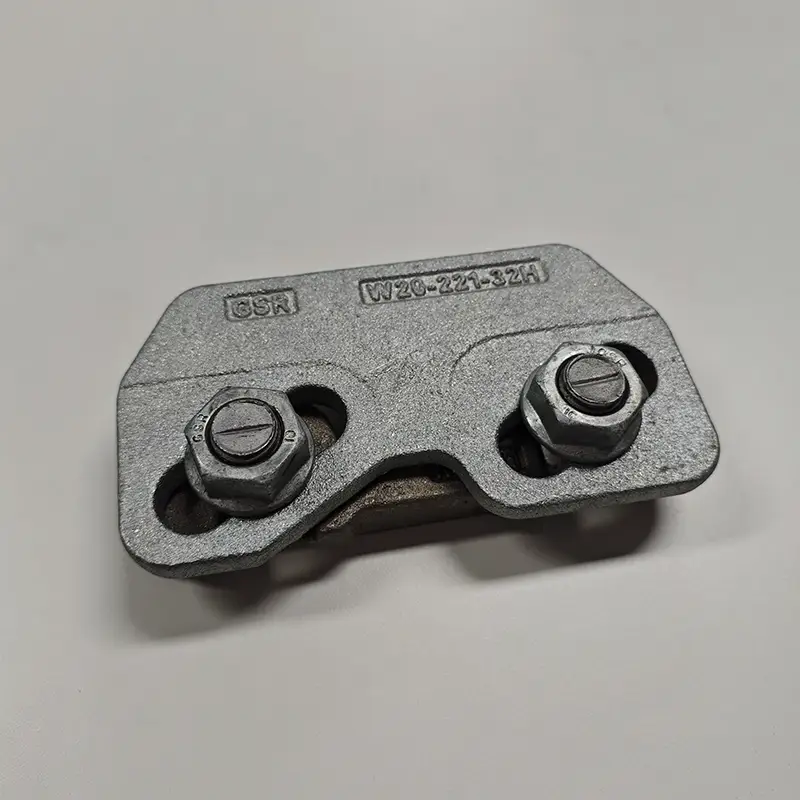

The W20-221 Rail Clip from Glory Track is a welded-base crane rail clip engineered for high-load and vibration-intensive environments. With the M20 bolts and compact low-profile design, it provides a robust and permanent rail fixing solution where space is limited or access from below is not possible.
This rail clip for cranes is widely applied in ship-to-shore cranes, gantry tracks, and industrial rail systems, offering stable side load resistance and long-term performance under dynamic stress.
Each W20-221 rail fixing clip is precisely machined to maintain rail alignment and minimize lateral movement, making it a reliable choice among crane rail clips in China and abroad.
Features of W20-221 Rail Clip
- Permanent Welded Fixing
The welded-base design provides a long-term, maintenance-free connection between the rail and support structure — ideal where bolted solutions aren’t feasible. - Precision Alignment Capability
The clip’s 21 mm horizontal adjustment range ensures accurate rail positioning during installation, reducing downtime and alignment errors. - Optimized for Compact Spaces
Its low, compact form allows use in guide roller cranes and tight-track layouts without interference or obstruction. - Self-Locking Stability
Once torqued, the upper and lower sections interlock, creating a self-tightening mechanism that prevents loosening under cyclic loading.
Technical Specifications & Materials
Specifications:
- Type: W20-221
- Max Side Load: 305 kN
- Horizontal Adjustment: 21 mm

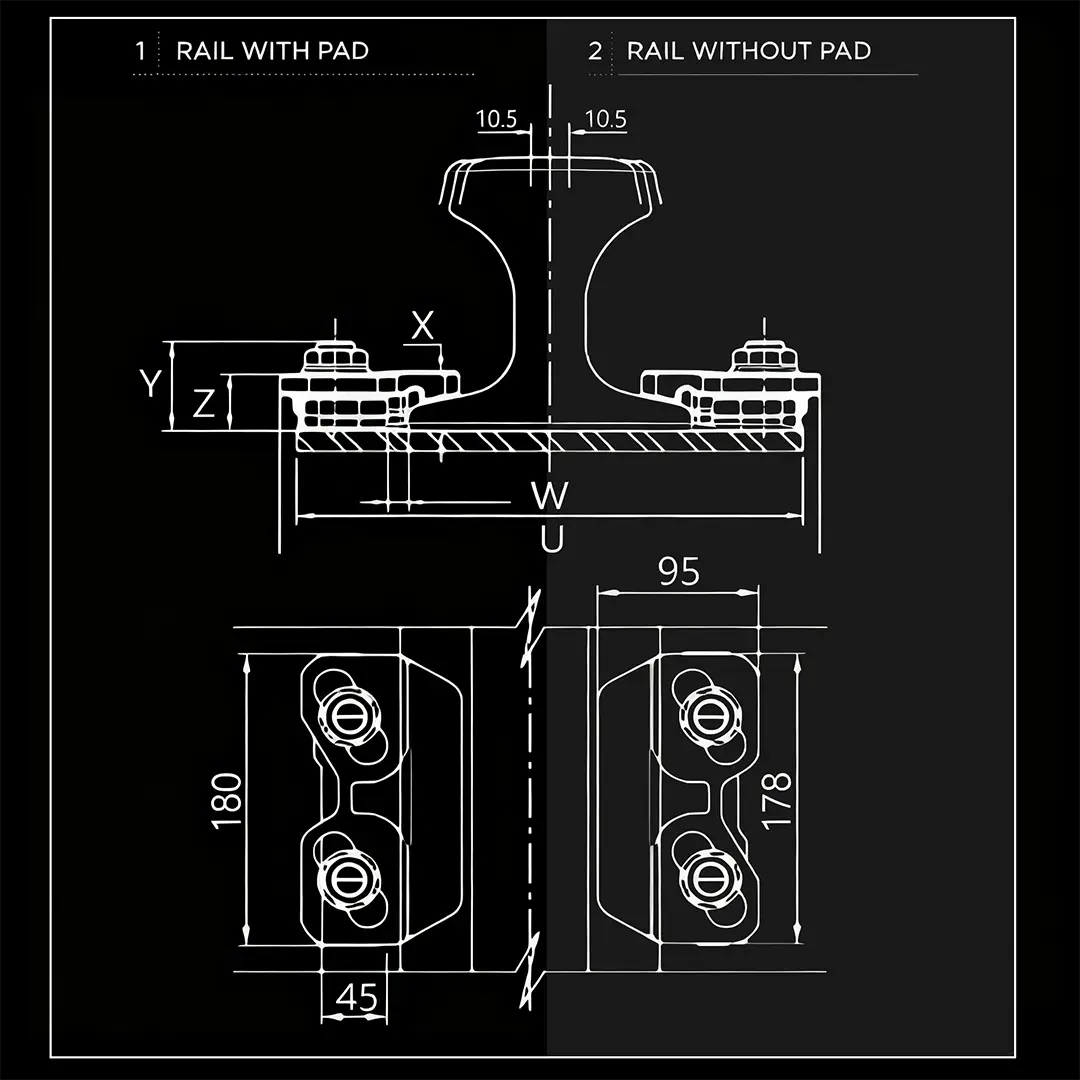

Dimensions (mm):
- X: 32
- Y : 52
- Z: 18
- Weight: 2.64 kg
- Bolt M20 (Grade 8.8)
Material:
- Base Material Weldable grade carbon steel(Q235 grade or custom materials)
- Vulcanized rubber block for controlled force
- Surface treatment: Surface Treatment Hot-dip galvanized
Installation of W20-221 Rail Clip
- Step 1 – Weld the Base

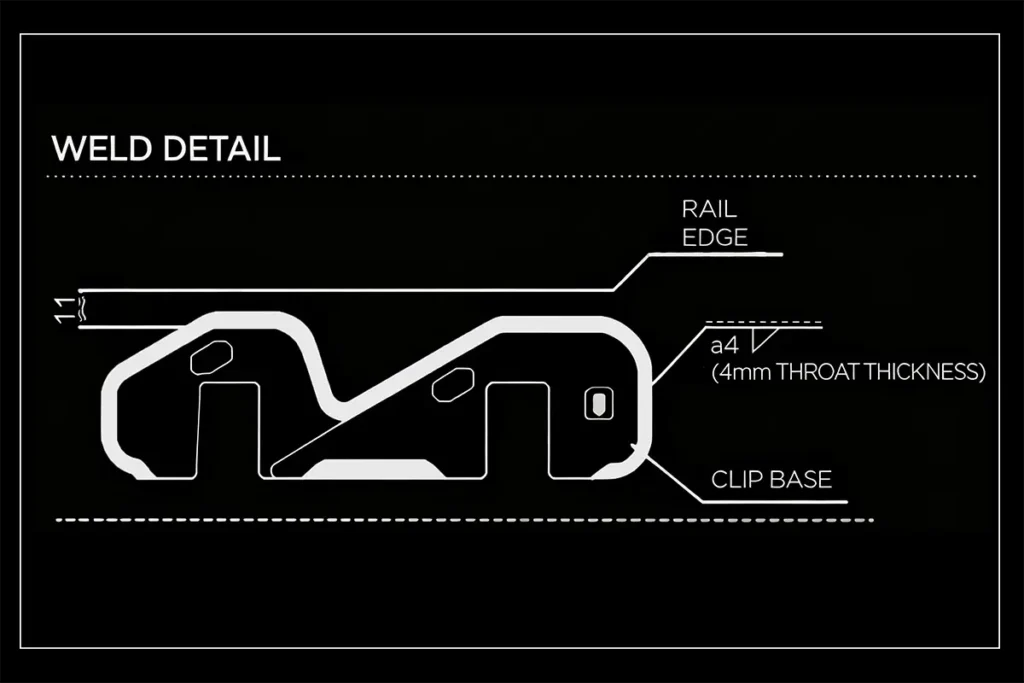

Position the clip base on the supporting beam and weld using 4 mm fillet welds, leaving the rail-side edge unwelded. Use low-hydrogen electrodes (AWS E7018 / E7028) for high-strength bonding. - Step 2 – Fit the Clip
Place the forged upper clip and ensure the rubber block presses firmly against the rail flange for vibration damping. - Step 3 – Insert and Tighten Bolt
Insert the M20 bolt and washer, lightly tighten until the clip contacts the rail uniformly. - Step 4 – Final Torque
Align the clip precisely by tapping it into position, then torque the bolt to 350 Nm for a secure and stable fixing.
For welding layout drawings or torque charts, please contact Glory Track Technical Support.
Rail Compatibility of W20-221 Rail Clip
W20-221 rail clips are compatible with a wide range of crane rails and railway profiles. They can be adapted for DINA-series, QU-series, other standard rails depending on your structural design.
For custom fitment or special soleplate configurations, consult Glory Track engineers for guidance.
Why Partner with Glory Track?
① Global Applications
For over 15 years, Glory Track has supplied rail fixing clips for projects across Europe, the Middle East, and Asia — from port crane rails to railroad track systems requiring high lateral resistance.
② Precision Manufacturing
Each clip is machined in our 12,000 m² facility, utilizing advanced forging, CNC processing, and load testing to ensure consistent quality and dimensional accuracy.
③ Comprehensive clip Range
Beyond W20-221, we also provide bolted rail clips like 9116 and welded options such as W116 and W216, allowing clients to select the best system for their crane rail or industrial track applications.
Get Your Custom Quote
Contact Glory Track today to request a quote or engineering consultation — our team will recommend the right crane rail clip based on your rail type and load requirements.
