Project Overview
Glory Track supplied a complete fertilizer conveyor rail system for a rail replacement project at a fertilizer production plant in Pakistan.
This project was carried out through a local engineering service company, which was responsible for fabrication and installation. The end user was a fertilizer manufacturer requiring replacement of the existing conveyor rails.
The original rails installed in the facility were previously purchased from Germany. To improve the reliability of the material conveying system, the customer selected new A75 rails together with matching fastening components from Glory Track.
Project Information
| Item | Details |
|---|---|
| Project Location | Pakistan |
| End User | Fertilizer Production Company |
| Contractor | Engineering Service & Construction Company |
| Application | Fertilizer Conveyor System |
| Project Type | Rail Replacement |
| Rail Type | A75 Rail |
| Supplied Length | 228 m |
| Installation | Completed by Local Engineering Team |
Fertilizer Conveyor Rail System Supplied by Glory Track
For this project, Glory Track provided a complete A75 fertilizer conveyor rail system, including rails and related fastening components.
The supplied products included:
- A75 rails
- Hot-dip galvanized anchor bolts
- Hot-dip galvanized hex bolts
- Steel sole plates
- Bolted rail clamps
The A75 rails were processed with diagonal cutting according to the customer’s installation requirements. The rail layout was designed with a 6-meter center-to-center distance to match the existing conveyor system structure.
To enhance corrosion protection for long-term industrial operation, the rails were sandblasted before delivery. The customer completed the final painting process after receiving the rails.
Quality Inspection Support Before Production
During the production period, Glory Track provided A75 rail samples for SGS inspection arranged by the customer’s engineering team.
By supplying samples in advance, the customer was able to verify the rail quality and confirm compliance before mass production.
This inspection support helped ensure smooth production and delivery for the fertilizer conveyor rail system replacement project.
Replacement of Existing Conveyor Rails
Before the upgrade, the fertilizer conveying system was equipped with old rails originally supplied from Germany.
After years of operation, the existing rails required replacement to maintain stable equipment movement and improve the reliability of the conveyor system.

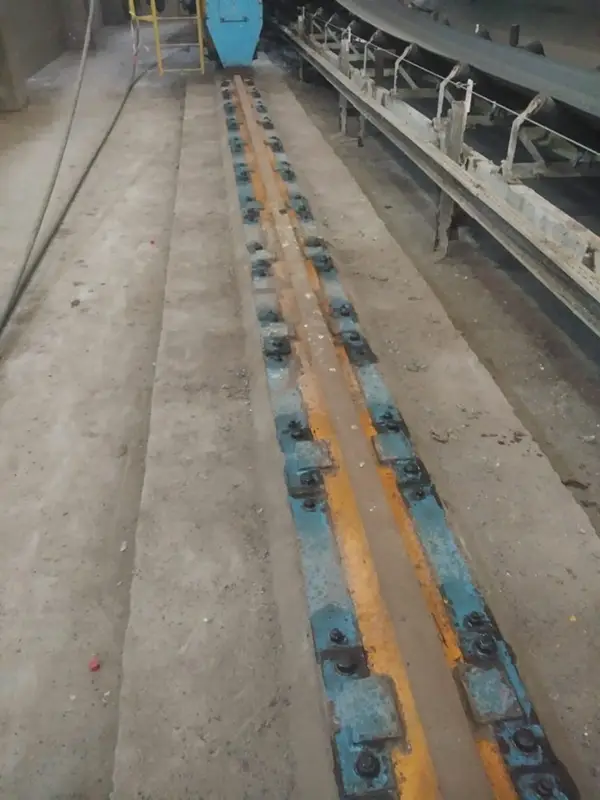

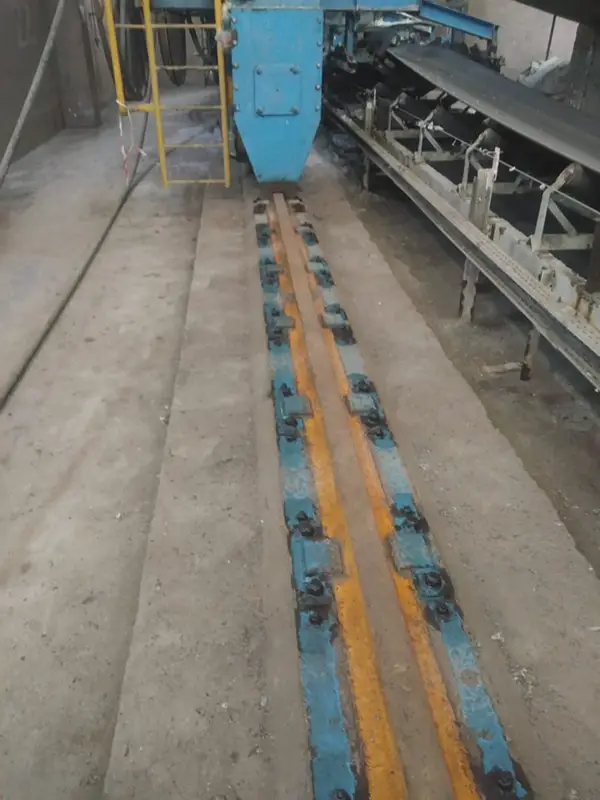

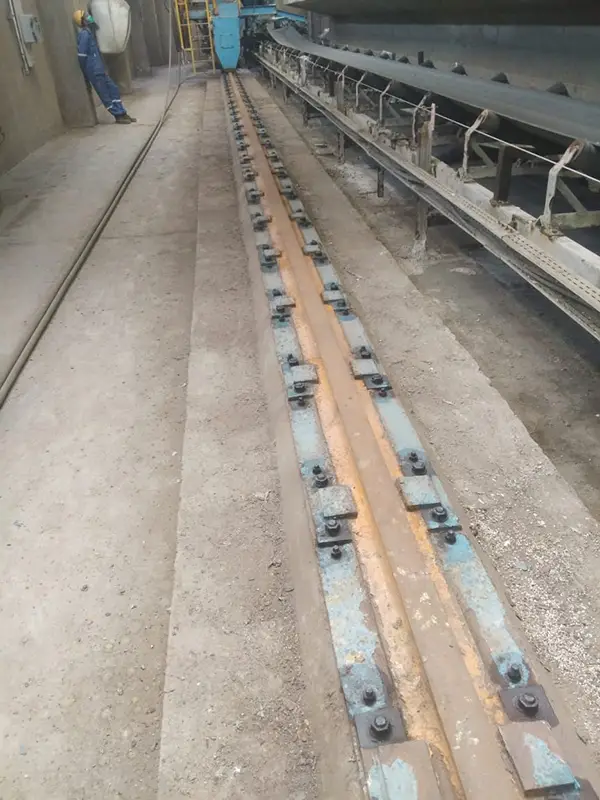

Existing rails before replacement:

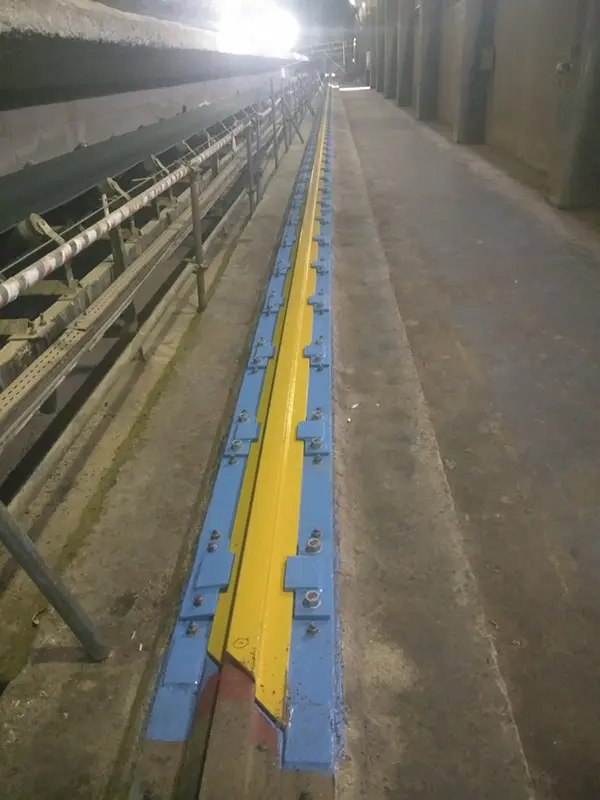

New A75 Fertilizer Conveyor Rail System Installation
After production and delivery, the new A75 rails and fastening components were installed by the local engineering team.
The upgraded fertilizer conveyor rail system provides a stable running track for material transportation equipment, supporting continuous operation in the fertilizer production process.
The complete system includes A75 rails, steel sole plates, and fastening components, ensuring reliable connection and alignment during operation.

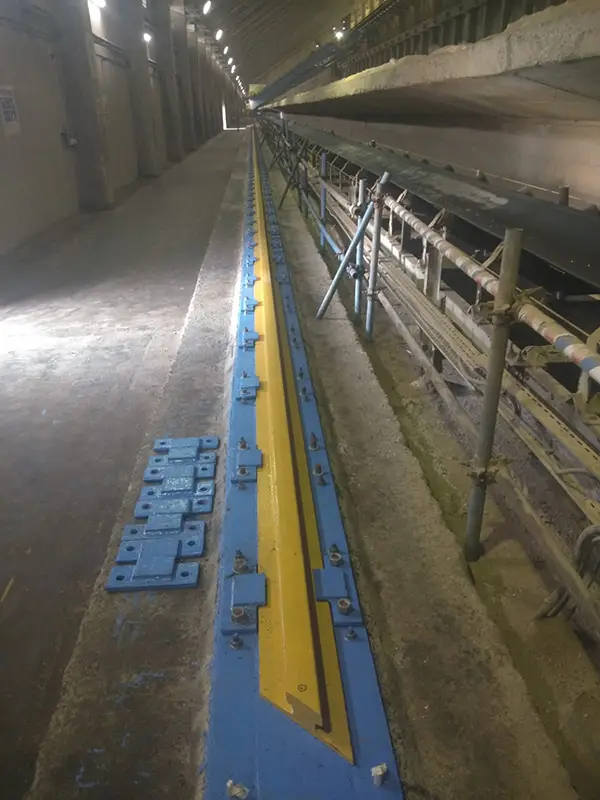

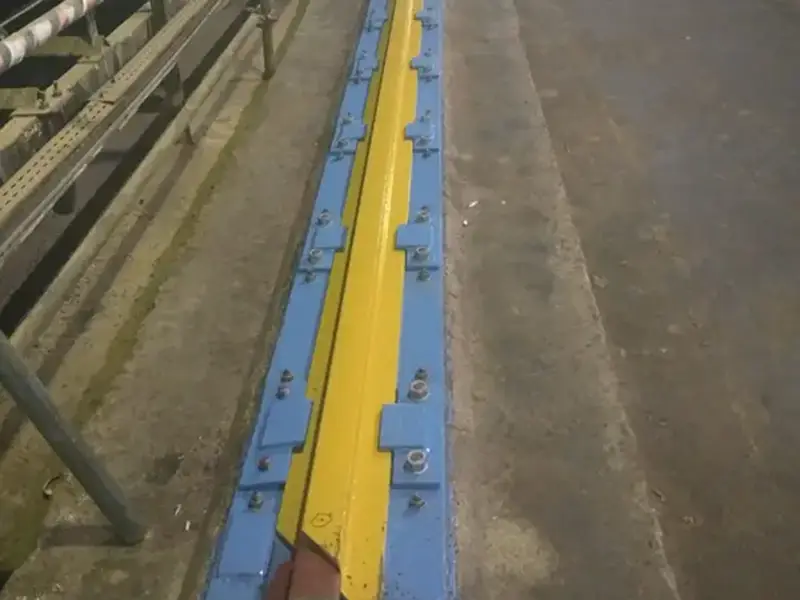

New rails after installation:
Why Choose Glory Track
Complete Conveyor Rail System Supply
Glory Track supplied not only A75 rails but also matching fastening components, including steel sole plates, anchor bolts, and rail clamps.
The complete supply package helped the customer simplify procurement and ensured compatibility between all rail system components.
Support for Industrial Rail Projects
From rail selection and sample inspection to production and delivery, Glory Track provides customized rail solutions for industrial applications, including conveyor systems, crane systems, and heavy-duty equipment.
Project Results
Through complete fertilizer conveyor rail system supply and technical support, Glory Track successfully provided a reliable rail replacement solution for a fertilizer production facility in Pakistan.
The new A75 rail system replaced the previous German-supplied rails and provides improved support for the plant’s continuous material conveying operations.
