Introduction
A Saudi Arabian heavy equipment integrator required a customized S49 Rail System for one of its industrial projects. The project involved the supply of S49 rails together with matching rail clips and fishplates to ensure proper installation and connection between all components.
During the technical review, Glory Track identified a potential fitting issue in the customer’s original fishplate design and provided an optimized drawing before production. By improving the fishplate slope to match the rail profile, the final S49 rail system achieved better component alignment and installation compatibility.
This project demonstrates Glory Track’s ability to provide customized rail system solutions through engineering support, component optimization, and quality-controlled manufacturing.
Customer Background
The customer is a Saudi Arabian heavy equipment integrator that has developed from an early metal fabrication workshop into a comprehensive industrial solution provider.
The company specializes in heavy equipment manufacturing, industrial storage and conveying systems, electrical automation integration, and industrial component supply. With experience in designing and manufacturing customized equipment, the customer required rail components that could meet specific installation requirements for their project.
Project Requirements: S49 Rail System Components
For this project, the customer required a complete set of S49 rail system components, including:
- S49 rail: 12 meters × 11 pieces
- Customized rail clips: 340 pieces
- Customized four-hole fishplates: 11 sets with bolts and nuts
The rail clips and fishplates were manufactured according to the customer’s requirements to ensure compatibility with the S49 rails.
S49 Rail System Fishplate Design Review and Optimization

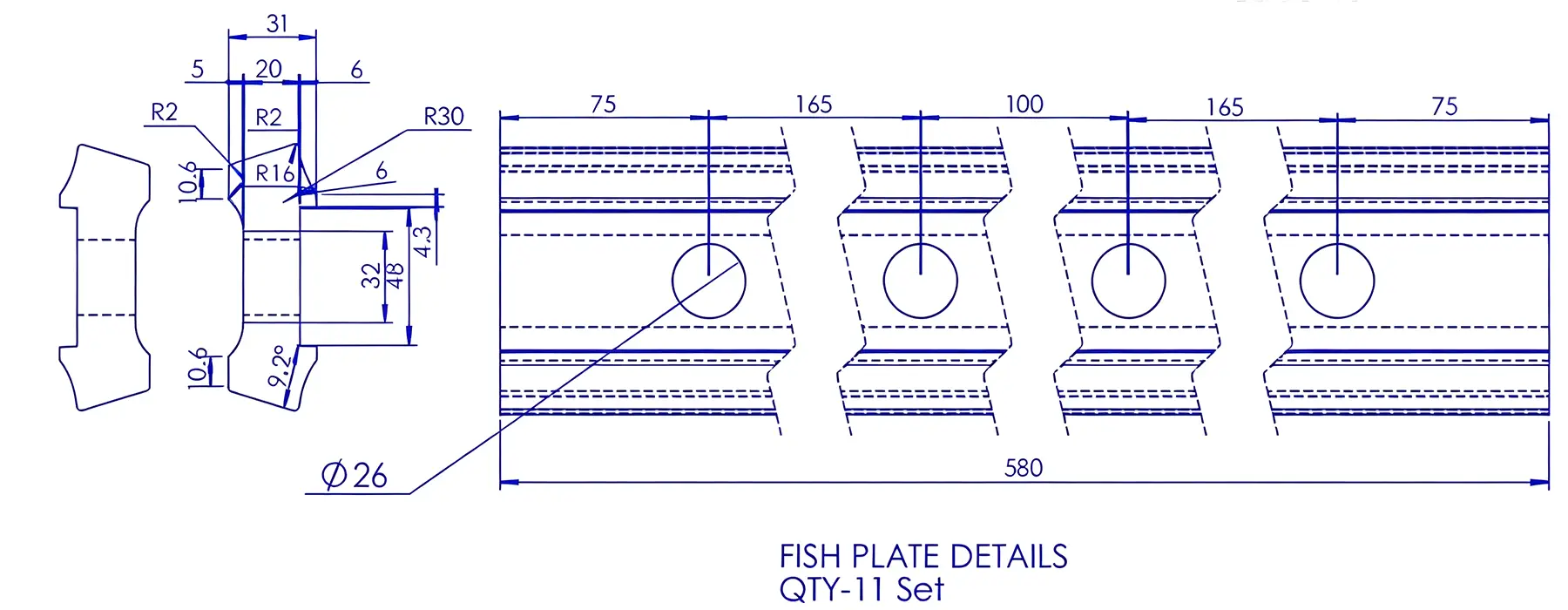

Before production, the customer provided their original fishplate drawing for manufacturing reference.
During the drawing review, Glory Track’s engineering team noticed that producing the fishplates exactly according to the original design would result in a slight gap between the fishplate slope and the rail profile.
Although the gap would not affect normal operation, we informed the customer of the potential issue and recommended improving the design. For a better fit, the slope of the fishplate should be consistent with the rail profile.
Instead of directly proceeding with production, Glory Track provided a revised drawing for the customer’s confirmation.
Customized Fishplate Solution for Better Rail Alignment

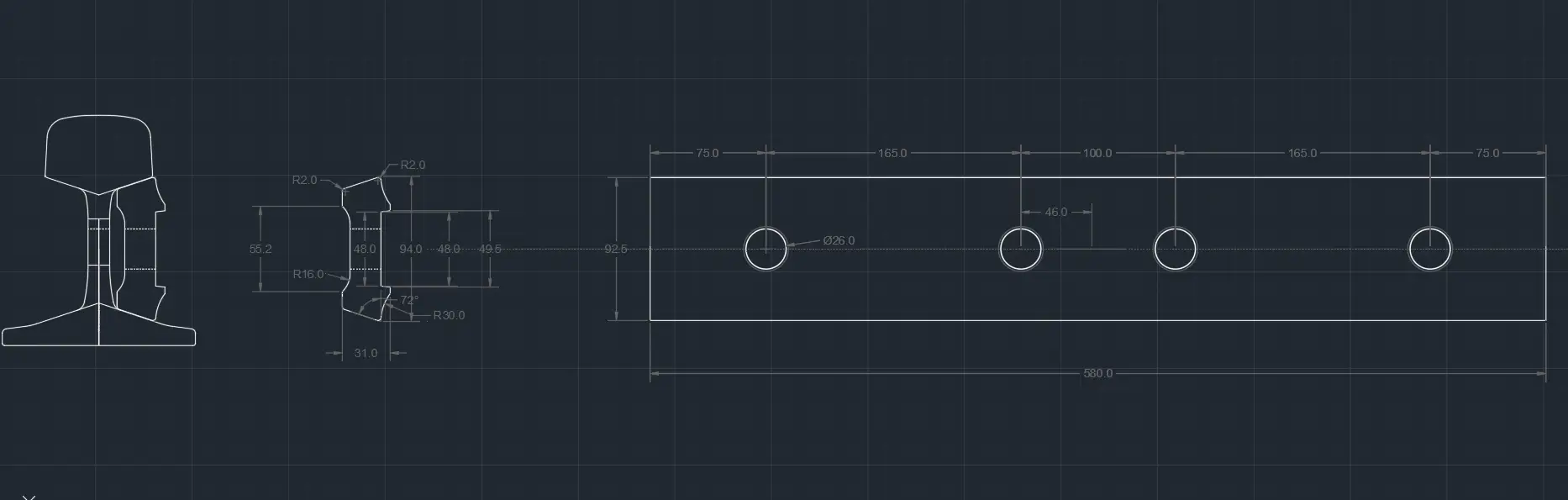

Based on the technical discussion, our engineering team modified the fishplate design to match the S49 rail slope.
The customer reviewed and accepted the updated design, confirming that the fishplates should be manufactured according to the revised drawing.

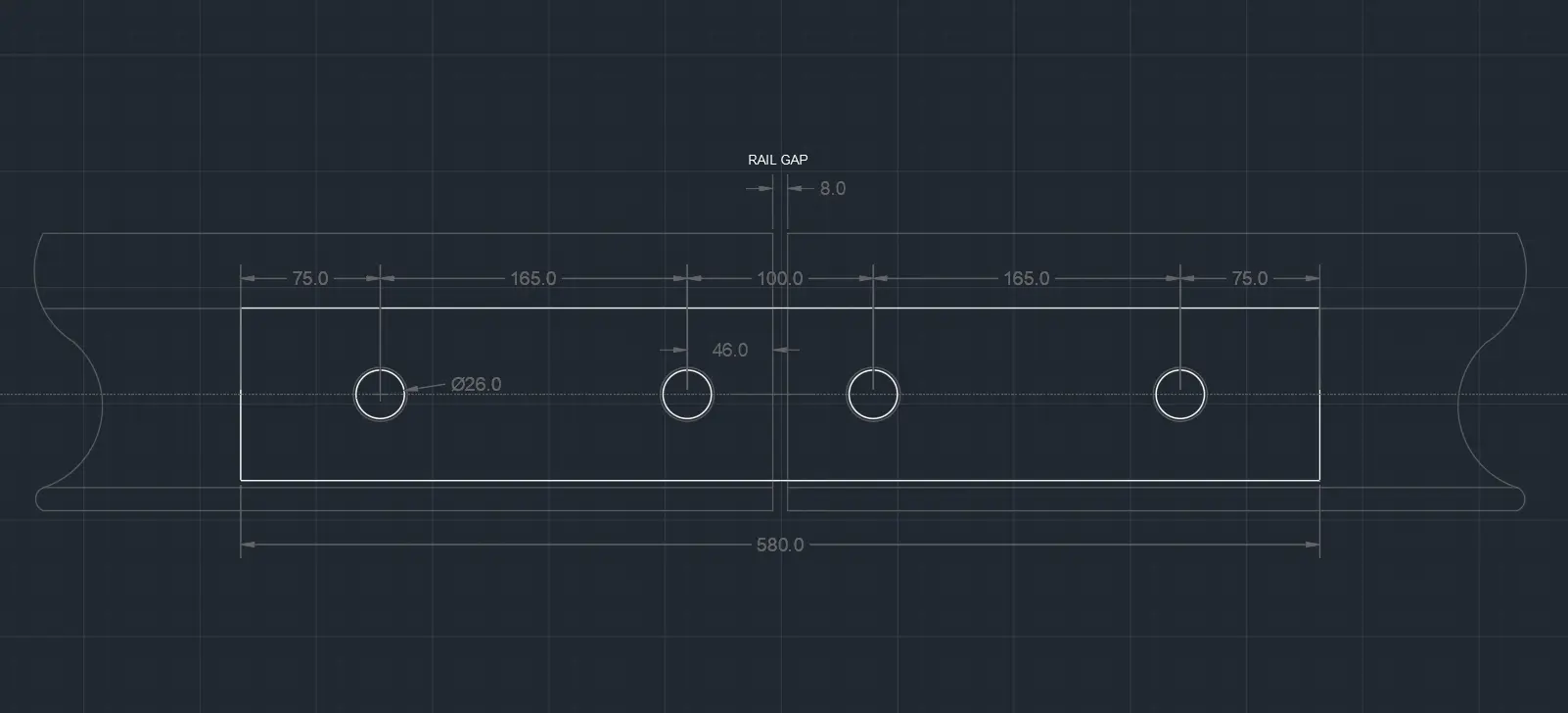

During the same technical communication process, we also discussed the hole positioning at both ends of the rails. Since the customer planned to complete the drilling process at their own facility, the rails were supplied without pre-drilled holes.
This communication ensured that the final components matched the customer’s installation plan before manufacturing started.
Manufacturing and Dimensional Inspection
After production, Glory Track conducted dimensional inspections on the main components of the S49 rail system before shipment.
The inspection process included:

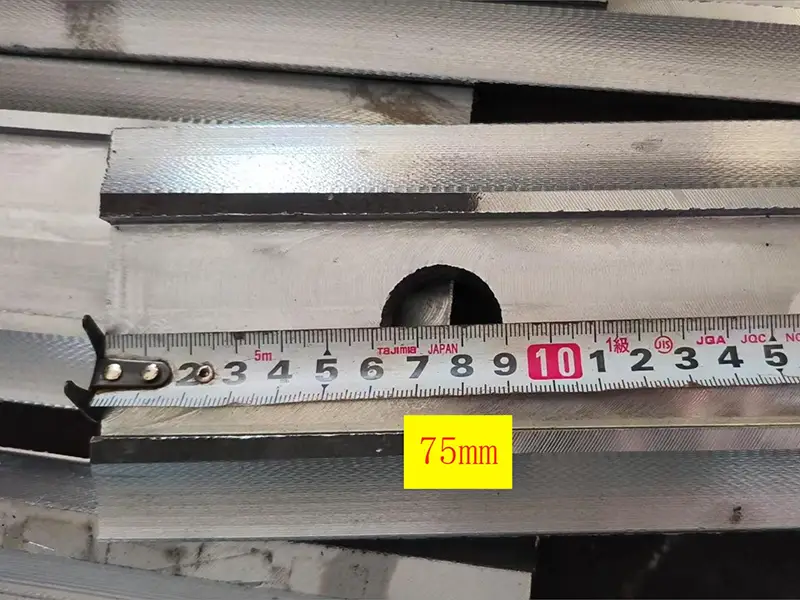

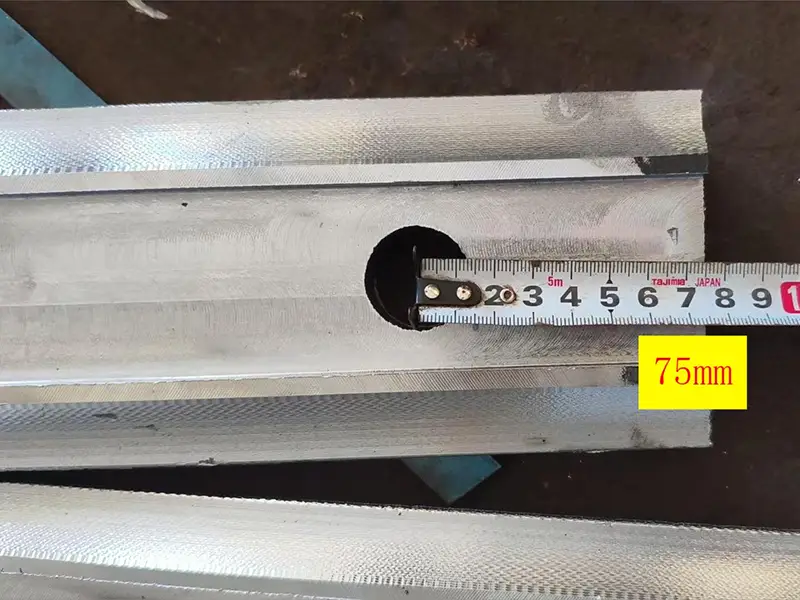

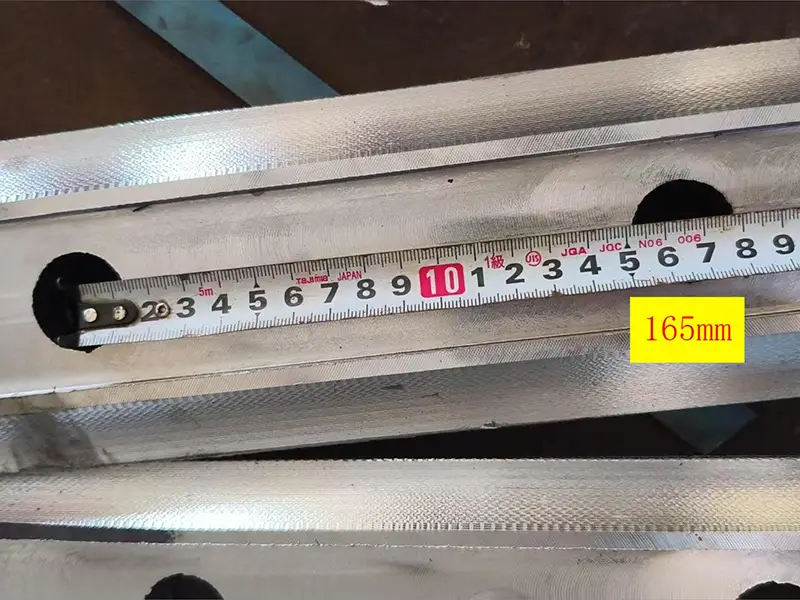

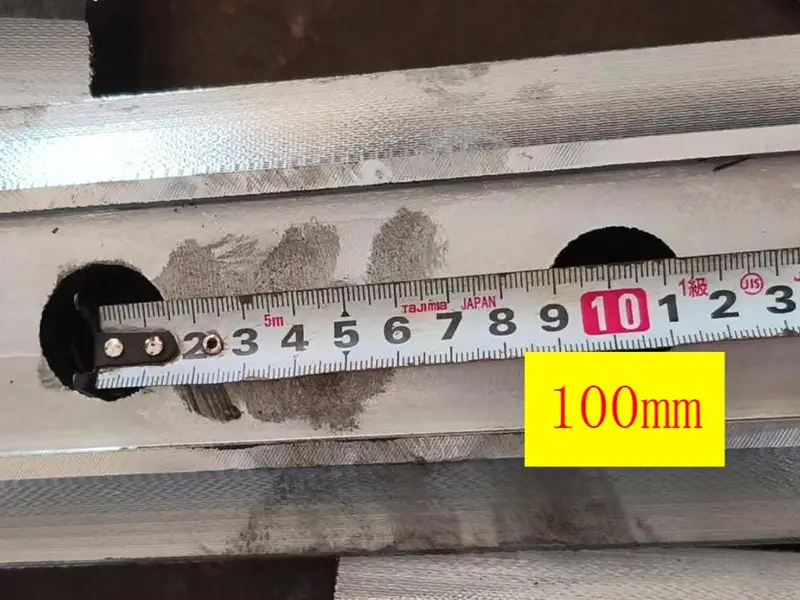

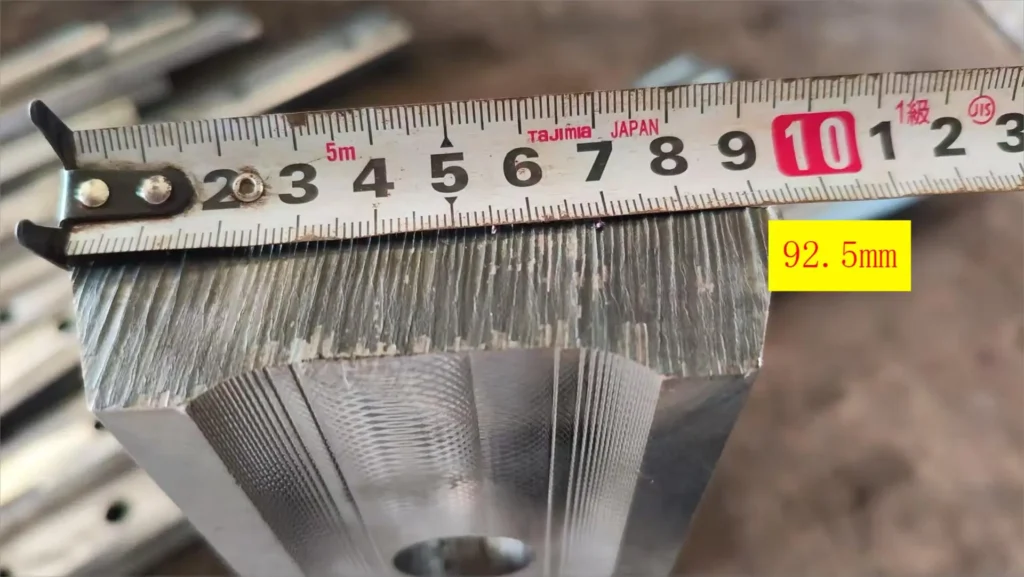

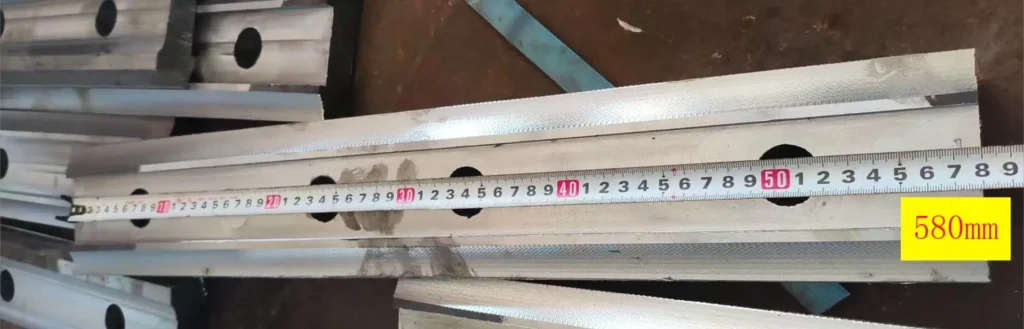

Fishplate hole distance, length, and width measurement

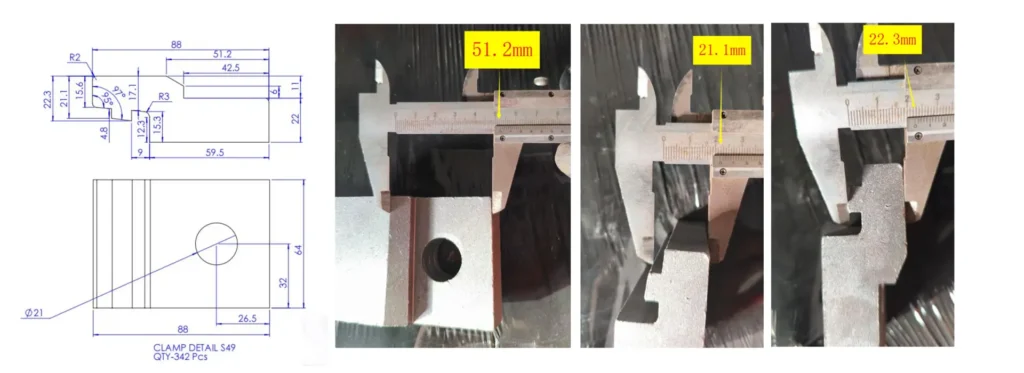

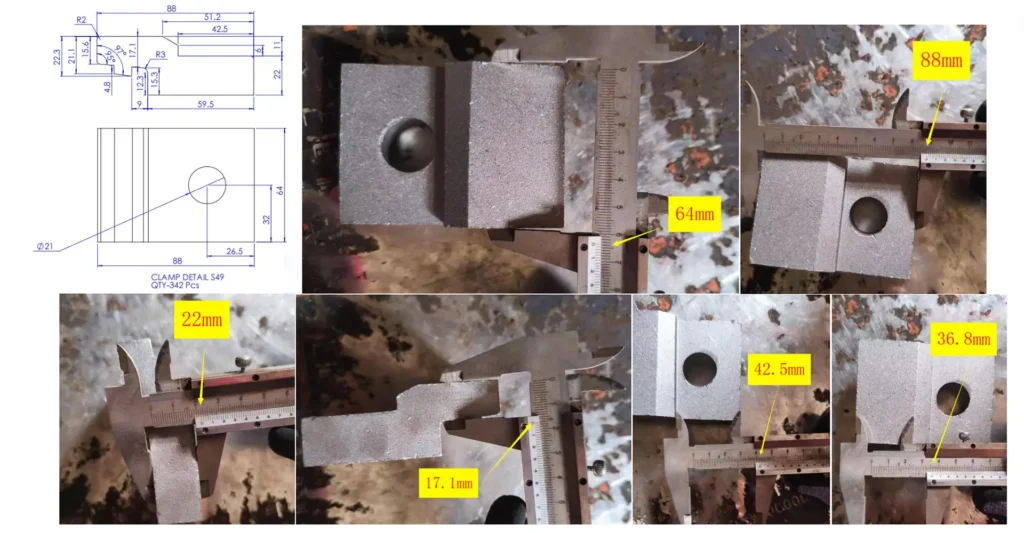

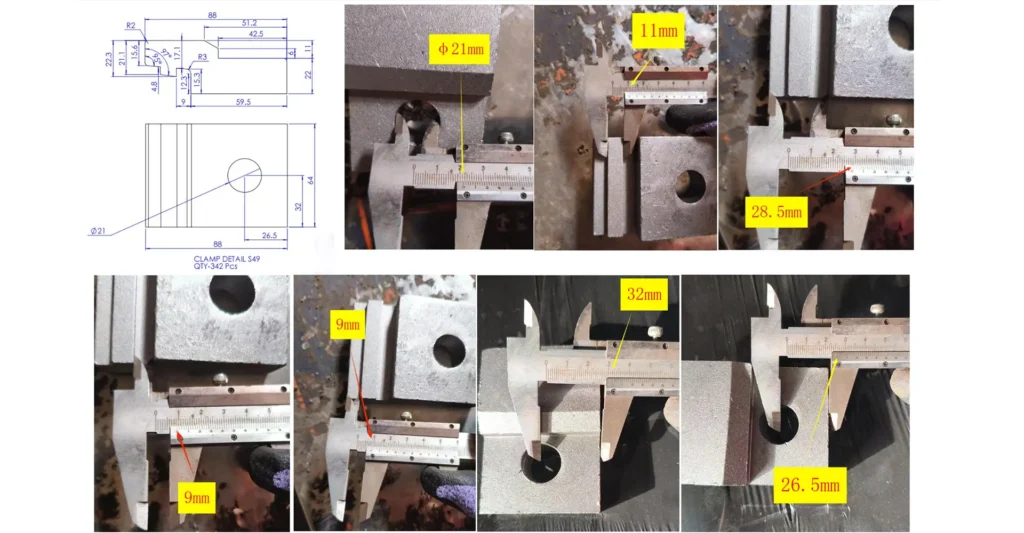

Rail clip dimension checking

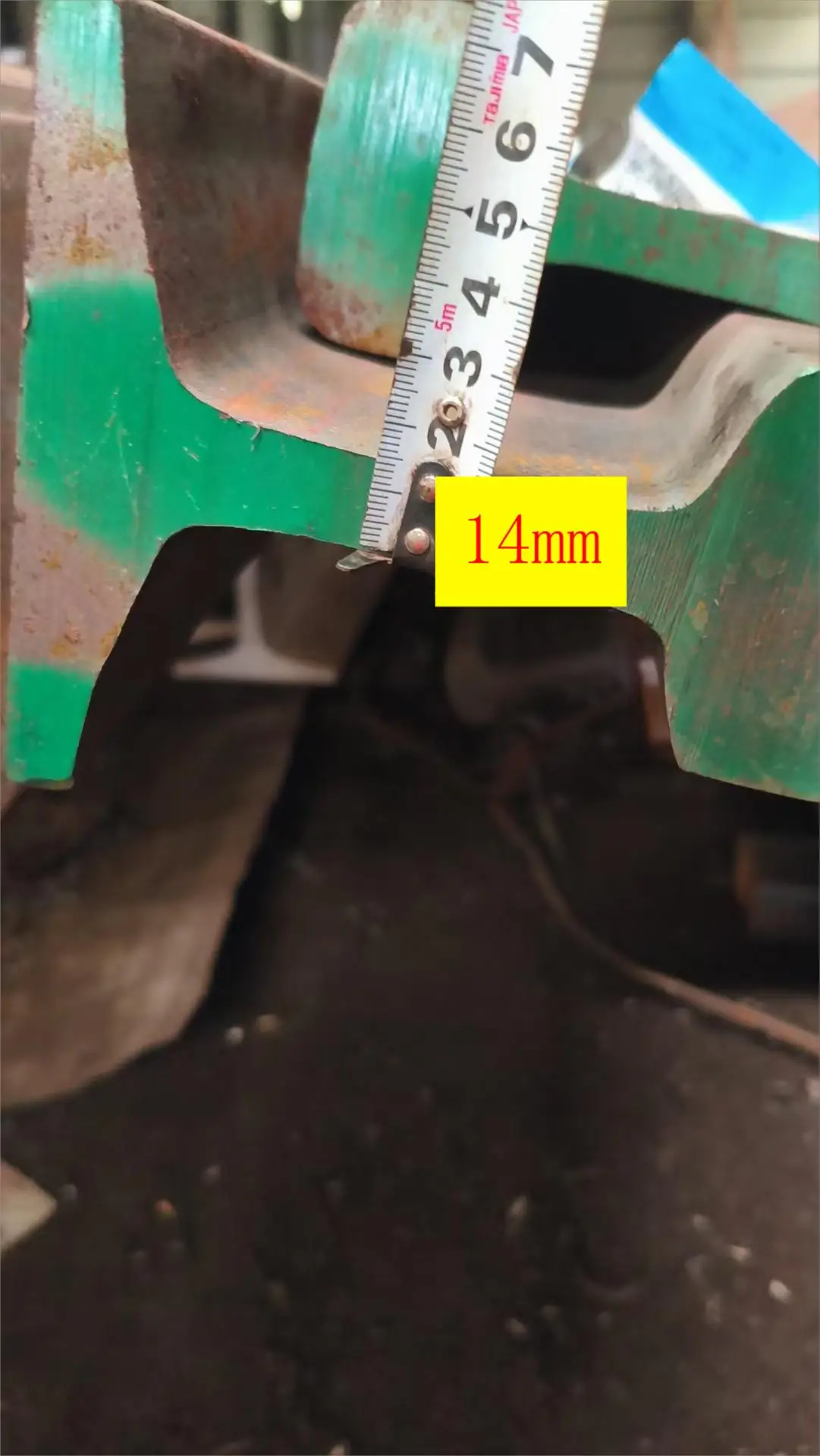

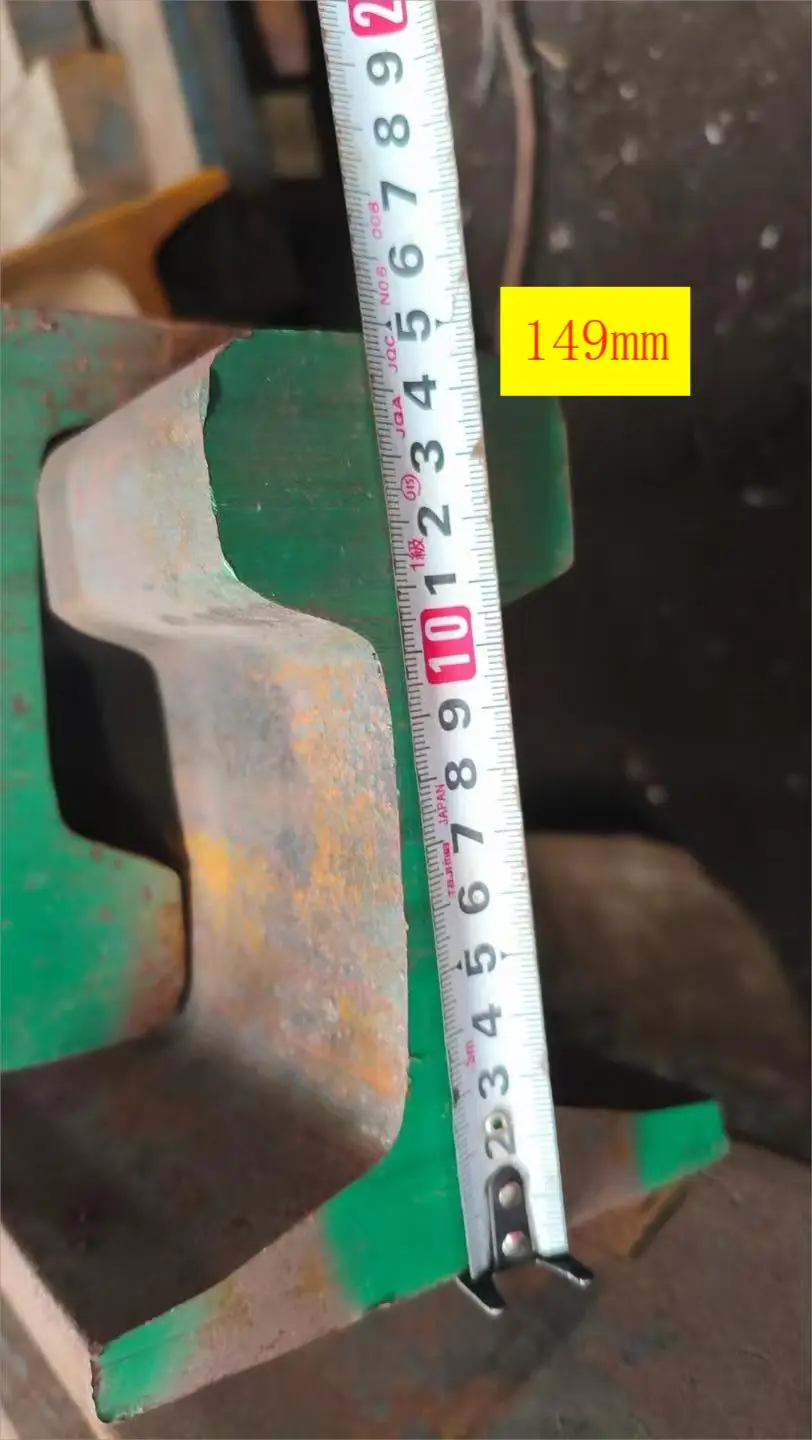

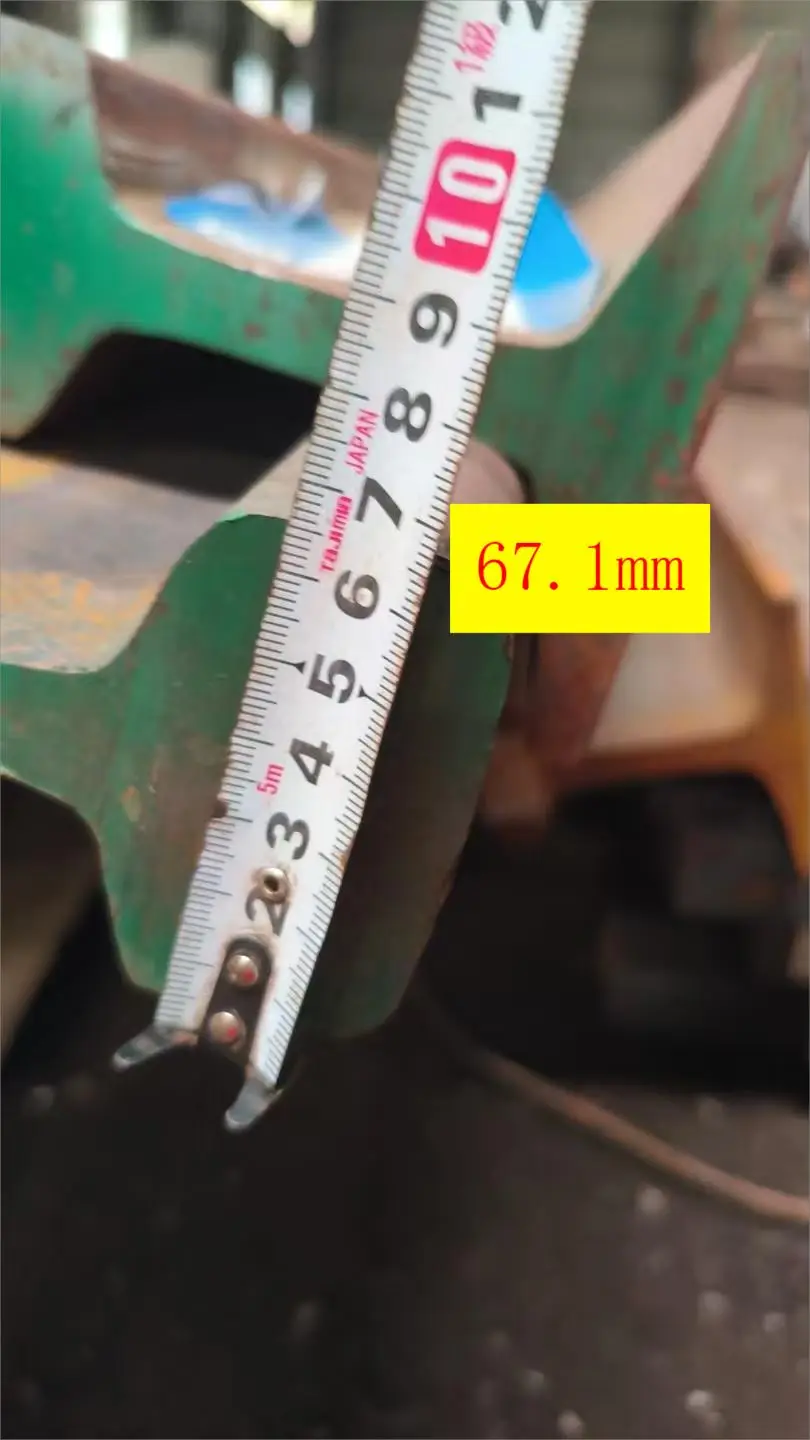

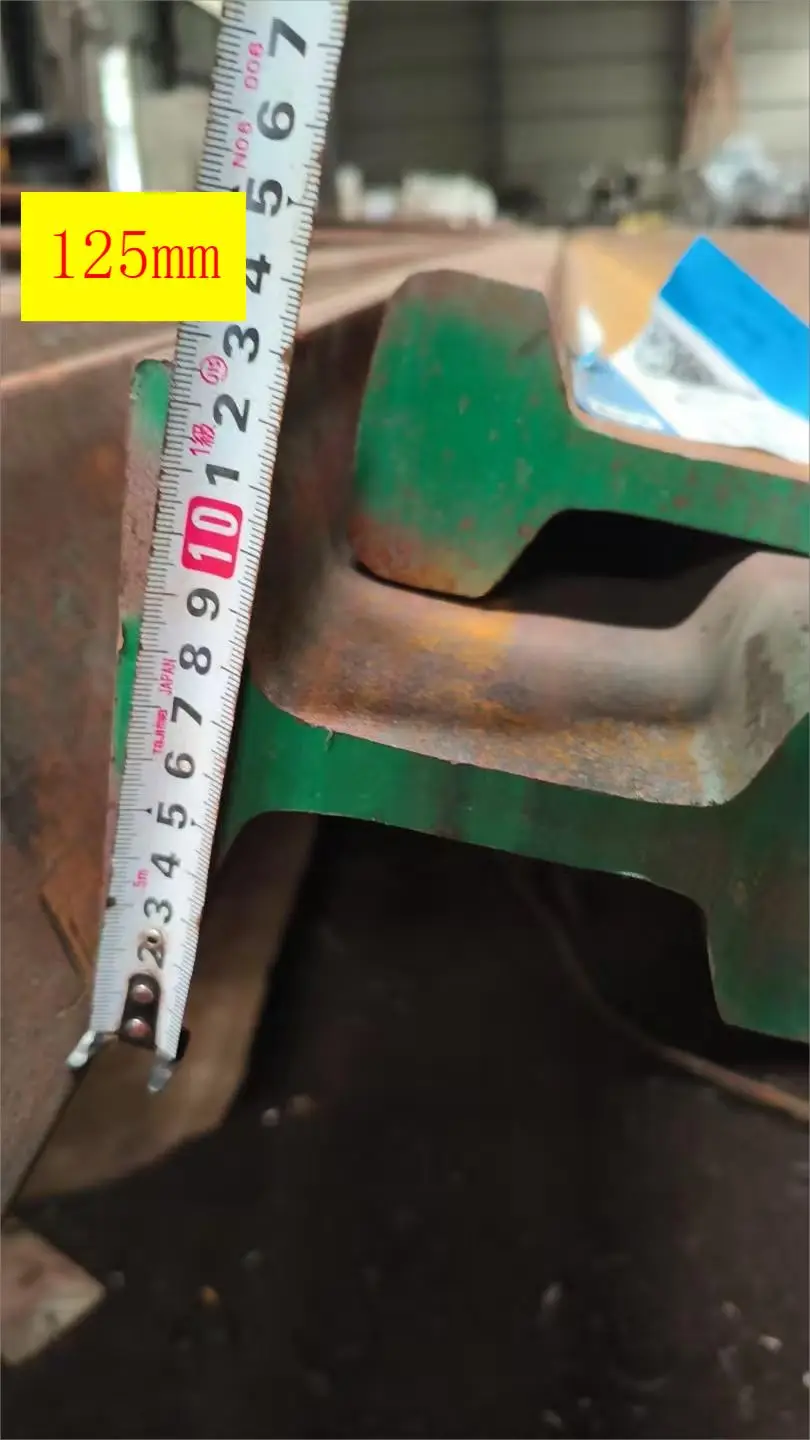

S49 rail profile measurement, including rail height, head width, base width, and web thickness
These inspections helped verify that the manufactured components met the confirmed drawings and project requirements.
Shipment from Tianjin Port to Saudi Arabia

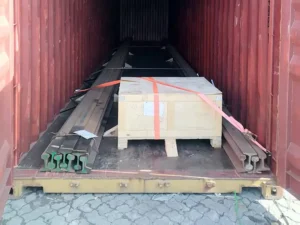

After completion of manufacturing and inspection, the S49 rail system was prepared for export shipment from Tianjin Port to Dammam, Saudi Arabia.
For additional quality control, the customer arranged a third-party inspection company to supervise the container loading process at the port yard.
The supervision process provided an additional check on packing quality and ensured that all components were safely prepared for international transportation.
Conclusion
This Saudi Arabia project shows how Glory Track supports customers with more than standard rail supply. By combining customized manufacturing capability with engineering communication, the team helped optimize the fishplate design and provide a complete S49 rail system solution for a heavy equipment application.
From drawing review and component adjustment to dimensional inspection and shipment preparation, Glory Track worked closely with the customer to ensure every part matched the final installation requirements.
