MK2 Rail Rubber Pad (Individual Crane Rail Pad)

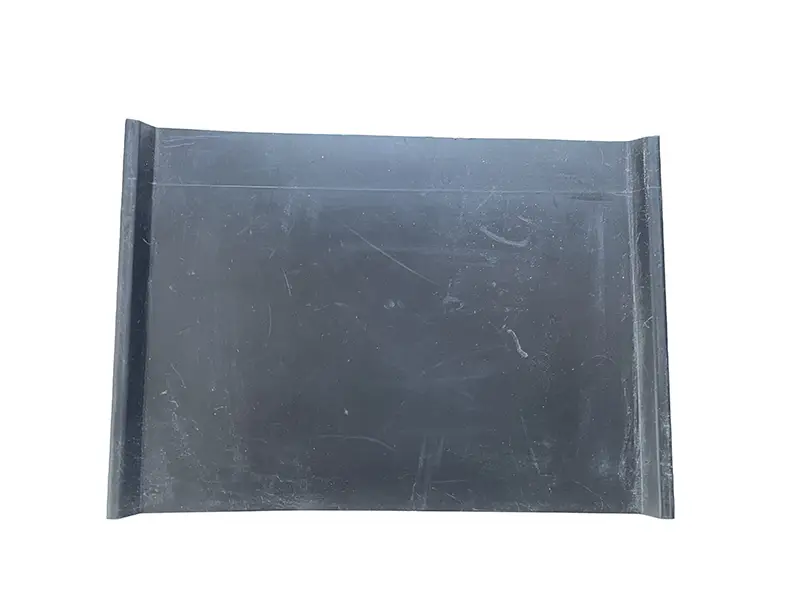

Glory Track Mk 2 rail rubber pad is engineered for discontinuous rail support systems where rails are mounted on individual sole plates.
This design is specially developed for rail systems where continuous support is not possible. Each rail pad fits precisely under the rail base, while the front and rear lips prevent movement during operation.
These crane rail rubber pads are made of wear-resistant and durable EVA material, making them ideal for high-intensity working conditions. They provide elastic support, absorb vibrations, and evenly distribute wheel loads, thereby ensuring rail stability.
MK2 Rail Rubber Pad Dimensions
The MK2 rail rubber pad is available in multiple sizes to accommodate various rail types and load requirements. Soleplate width must match pad “L’ dimension from table below.
| Part No. | L (mm) | W (mm) |
|---|---|---|
| MK2-110 | 110 | Rail foot width – 5 mm |
| MK2-120 | 120 | Rail foot width – 5 mm |
| MK2-165 | 165 | Rail foot width – 5 mm |
| MK2-205 | 205 | Rail foot width – 5 mm |
| MK2-220 | 220 | Rail foot width – 5 mm |
| MK2-250 | 250 | Rail foot width – 5 mm |
| MK2-320 | 320 | Rail foot width – 5 mm |
MK2 Rail Rubber Pad Technical Spec
Our MK2 rail rubber pads are designed to meet the demanding requirements of industrial crane applications with precise engineering and high-quality EVA materials.
| Property | Specification |
|---|---|
| Material | EVA copolymer |
| Temperature Range | –25°C to +75°C |
| Recommended Max. Compressive Stress (Compressive stress is installation related and should be reduced above 50°C) | 15 N/mm² |
| Tensile Strength (ISO R 527) | 16 MPa |
| Elastic Modulus (ISO R 527) | 100 MPa |
| Elongation at Break (ISO R 527) | 750% |
| Shore Hardness (ISO 868 A scale) | 95 |
MK2 Individual Rail Pad Key Features
The MK2 Rail Rubber Pad is engineered to deliver reliable elastic support and long-term performance for crane rail systems. When installed with Glory Track adjustable rail clips, the pad effectively reduces stress in the rail, grout, and concrete beneath the sole plate. It allows slight rail rotation to match the crane wheel profile, ensuring even wheel load distribution and enhanced track stability.
Key Advantages of MK2 EVA Rail Pad:
- Minimizes load concentrations and fatigue stress in the rail seat.
- Extends the life of rails, wheels, bearings, and axles.
- Prevents fretting corrosion between the rail pad and the supporting surface.
- Provides superior vibration absorption for smoother crane operation.
Our MK2 rail pads are made from durable EVA material, offering excellent wear resistance and elasticity. They are unaffected by oil, grease, or UV exposure and fully recover after repeated loading. The tapered leading and trailing edges reduce edge loading on the sole plate and grout when the crane wheel passes between sole plates, making them ideal crane rail pads for discontinuous support conditions.
Typical Arrangements for Discontinuous Soleplates
The MK2 rail rubber pad is specifically designed for installations where rails are mounted on individual sole plates rather than continuous support structures.
Recommended Rail Types
- Light applications: Standard railway rails
- Heavier wheel loads: QU70, ISCR100 and MRS87A taller rails
- Not recommended: DIN 536 A-section rails (weak in vertical bending)
Typical Load Capacities with Glory Track Clips ：
Get Your Custom Quote
Glory Track provides customized MK2 rail rubber pads to match different crane rail models and load requirements. Contact us for technical support or a tailored quotation.
