Rail Lubricator
Insufficient lubrication of crane rails often results in accelerated rail and wheel wear, excessive noise, higher energy consumption, and even costly downtime. Left unresolved, these issues shorten equipment life and increase the risk of derailment. A rail lubricator offers the proven solution—delivering automated, precise, and consistent lubrication that reduces friction, lowers operating costs, and keeps crane systems running safely and efficiently.
What is a Rail Lubricator?

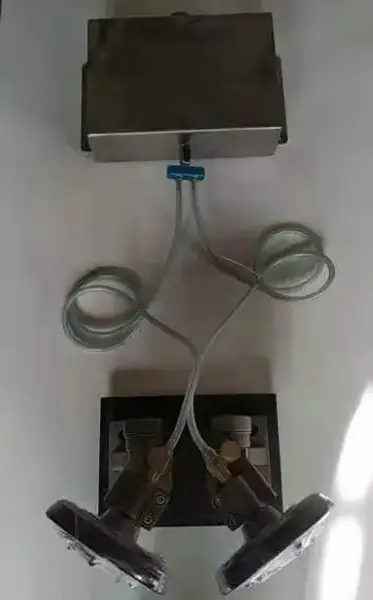

A rail lubricator is a specialized device installed near the crane wheels to apply lubricant directly to the side of the rail (gauge face). Using intelligent controls and a built-in pump system, it dispenses small, accurate amounts of grease or oil exactly when needed. The system operates only while the crane is moving, ensuring continuous lubrication without waste, and automatically stops when the crane halts, preventing leakage and over-lubrication.
Rail Lubricator Performance & Advantages
- Extended Service Life: Reduces wear of rails and wheels by more than 70%, extending wheel lifespan by 3–4 times.
- Lower Maintenance Costs: Eliminates frequent manual lubrication, saving labor and avoiding expensive repairs.
- Energy Savings: Laboratory tests show starting torque reduced by 16–19% and running power by 20–30%.
- Safety & Reliability: Prevents derailment and unexpected downtime by keeping friction under control.
- Noise & Vibration Reduction: Smooth operation minimizes operational noise, creating a safer workplace.
- Automation & Smart Control: No manual intervention needed—lubrication is always on time and accurate.

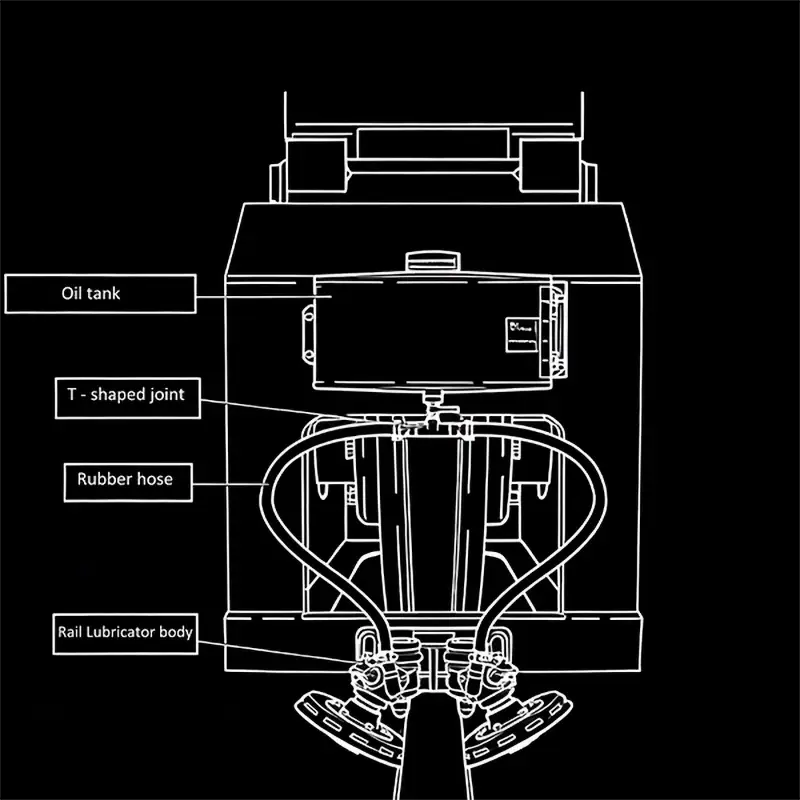

How the Rail Lubricator Works
Unlike manual greasing, a crane rail lubricator operates automatically to deliver precise lubrication exactly where it’s needed. The system is mounted directly on the crane and uses a lubrication wheel that presses against the side of the rail.
As the crane moves, the wheel rotates and drives the built-in oil pump.
The pump delivers a controlled, micro-quantity of lubricant, which is evenly applied to the gauge face (side of the rail)—not the rail head, preventing wheel slip.
Lubrication is applied during both forward and reverse travel, ensuring full coverage.
When the crane stops, the pump automatically shuts off, preventing leakage or waste.
This simple yet effective mechanism keeps the rail surface clean, ensures optimal friction control, and supports long-term crane reliability.
Rail Lubricator Performance & Advantages
FAQ
Will lubrication cause crane wheels to slip on the rails?
→No. The rail lubricator applies grease only to the rail side, not the top surface. Wheel grip remains secure.
How much rail can one lubricator cover?
→ Since it moves with the crane, it ensures continuous lubrication along the entire travel path.
Can it be used in extreme environments?
→ Yes. Different grease types are available for both high-temperature and low-temperature applications.
Does installation require downtime?
→ Installation is straightforward. In most cases, it can be done with minimal downtime.
Contact Us Today
Upgrade your crane system with a rail lubricator to extend service life, cut maintenance costs, and ensure safe, efficient operation.
