46E2 Rail
46E2 rail, also known as U33 rail, is a rugged flat-bottom steel rail engineered to excel in demanding mining, tunneling, and industrial transport environments. Manufactured to EN13674-1 standards, it combines high load-bearing capacity with wear resistance and dimensional accuracy, making it ideal for mining railways, heavy transport lines, and industrial rail networks.
46E2 Rail Dimensions
| Height: 145 mm | Base Width: 134 mm |
| Head Width: 62 mm | Web Thickness: 15 mm |
| Length: 6m-24m | Material: R200/R260/R260Mn/R350HT |
| Weight: 46.27 kg/m | Standard: EN13674-1 |
Need specific length or steel grade for your track system? Contact us for tailored production options.

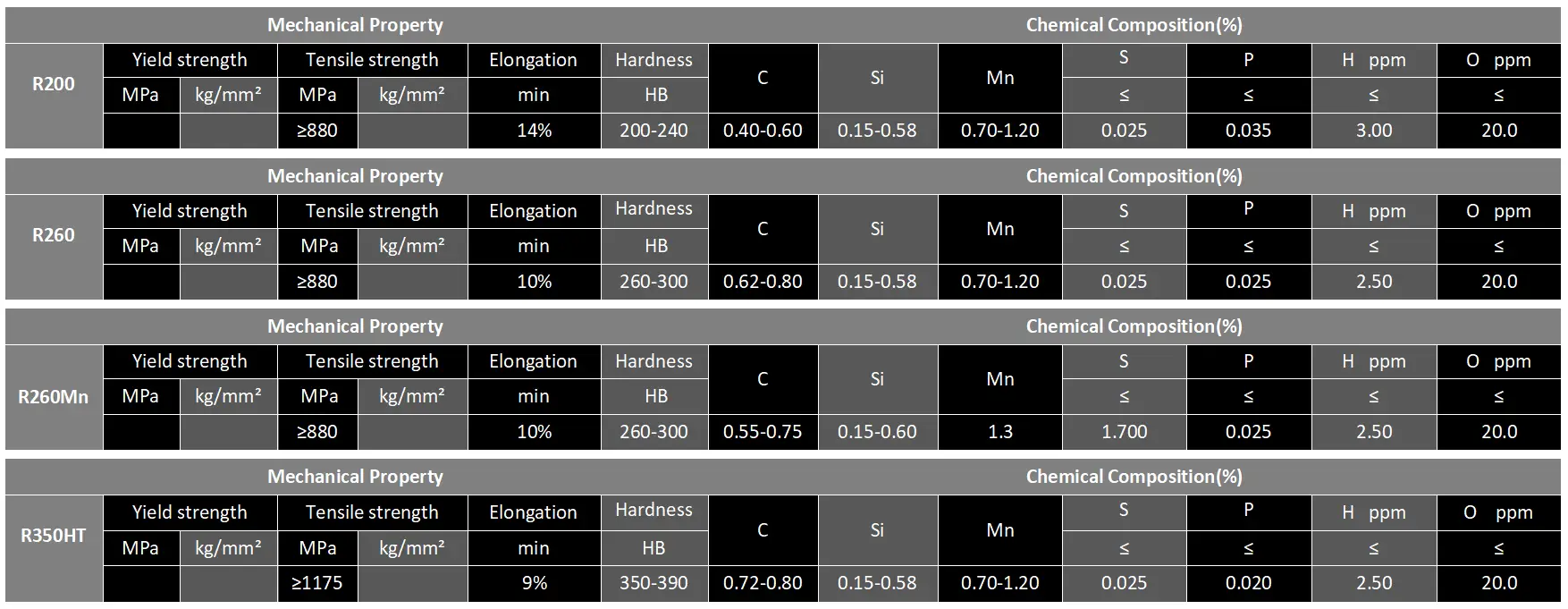

46E2 Rail Material Composition
The 46E2 rail is available in multiple steel grades, including R260 and R350HT, offering enhanced mechanical properties for various operational needs. These grades ensure optimal performance in harsh mining conditions, industrial transport, and medium-duty railway systems, balancing toughness and durability.
Custom Processing Services for 46E2 rails
Glory Track provides full customization for 46E2 rails, ensuring perfect fit and function for your project.
Our Services Include:

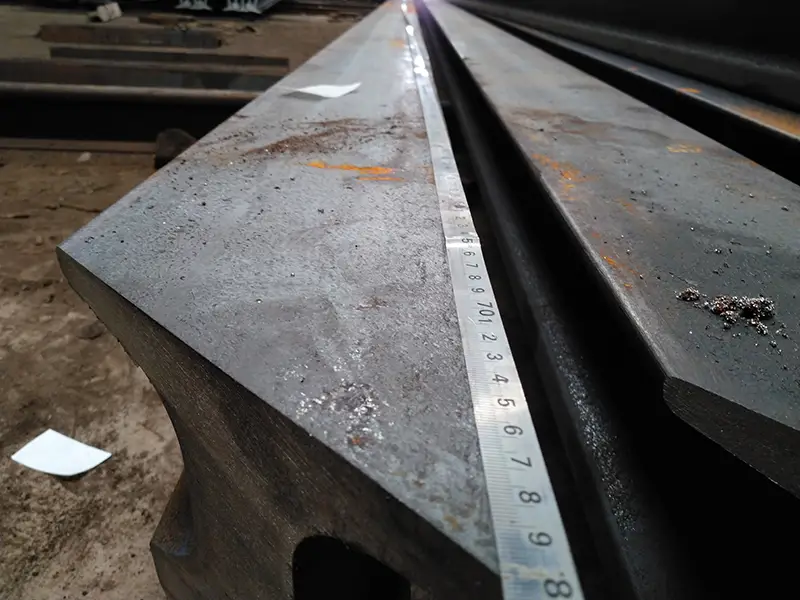

- Precision cutting to any length (1–25 m)

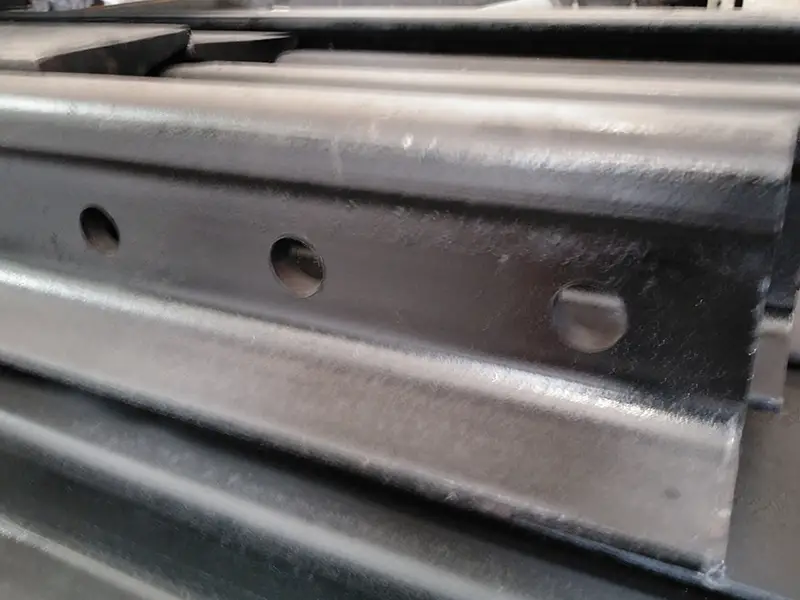

- Drilling for joint bars and fastening systems

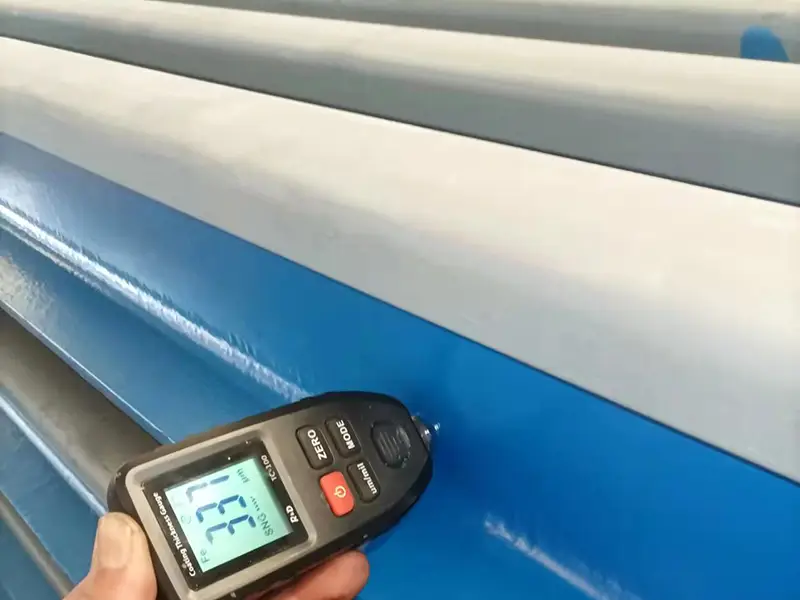

- Anti-corrosion coatings such as galvanization or painting
- End finishing and deburring
These customized options minimize on-site adjustments and maximize operational efficiency for mining, railway, and industrial applications.
Applications of 46E2 Rail
Mining Rail Systems
Supports continuous underground haulage of ore and waste. U33 rail is widely used in underground mines due to its load resilience and precise geometry, ensuring safe and stable operations for mining trolleys and locomotives.
Tunnel Segment Transport
Ideal for TBM projects and shield-driven tunneling logistics. Its robustness and compatibility with custom-length fabrication make it a preferred choice for transporting precast tunnel segments on temporary rail lines
Industrial Rail Logistics
Customized for heavy-duty factory or port track systems. From steel plants to freight terminals, 46E2 rail excels in handling constant axle loads with minimal wear—supporting long service life in tough working environments.
Request a Quote for 46E2 Rail
Send us your project details to get a customized quotation tailored to your rail requirements:
- Required lengths and quantities
- Preferred steel grades (R260, R350HT, etc.)
- Intended application (mining, transport, industrial, etc.)
- Special processing needs (cutting, drilling, coating)
Email: info@glorytrack.com
Our expert team will respond within 24 hours with technical support and pricing.
