49E2 rail
49E2 rail is a heavy-duty steel rail designed for use in demanding railway and industrial transport environments. Built in compliance with EN 13674-1 standards, this rail profile delivers a strong balance of dimensional precision, structural integrity, and long-term reliability. Weighing 49.1 kg/m and featuring a 148 mm height, the 49E2 rail supports stable operations even under high axle loads and frequent service cycles—making it ideal for mining lines, freight systems, and industrial logistics.

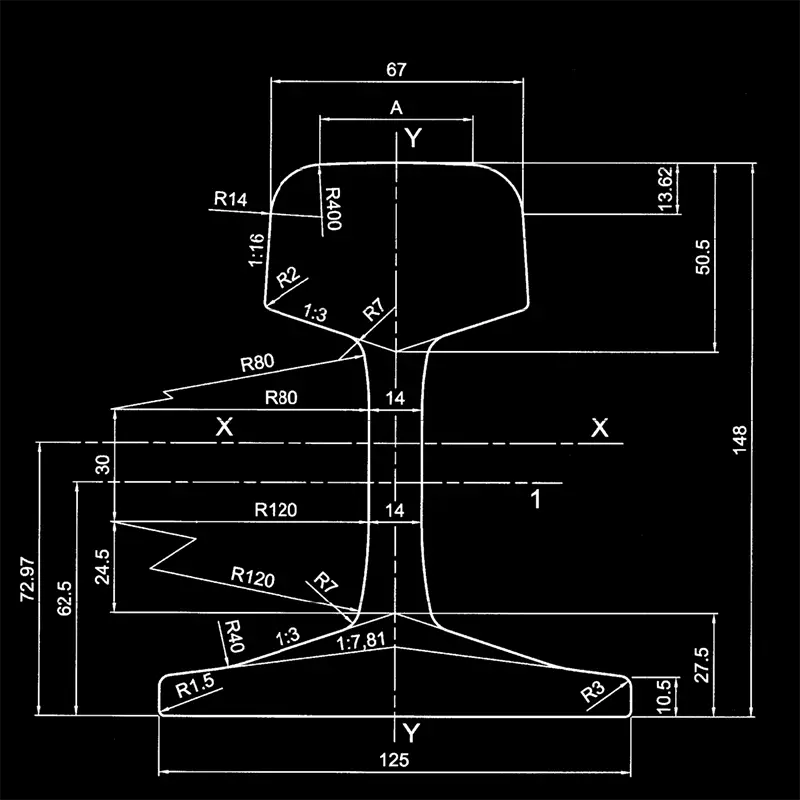

49E2 Rail Specifications
| Height: 148 mm | Base Width: 125 mm |
| Head Width: 67 mm | Web Thickness: 14 mm |
| Length: 6m-24m | Material: R200/R260/R260Mn/R350HT |
| Weight: 49.1 kg/m | Standard: EN13674-1 |
Need special lengths or other steel grades? Contact us for tailor-made rail production solutions.

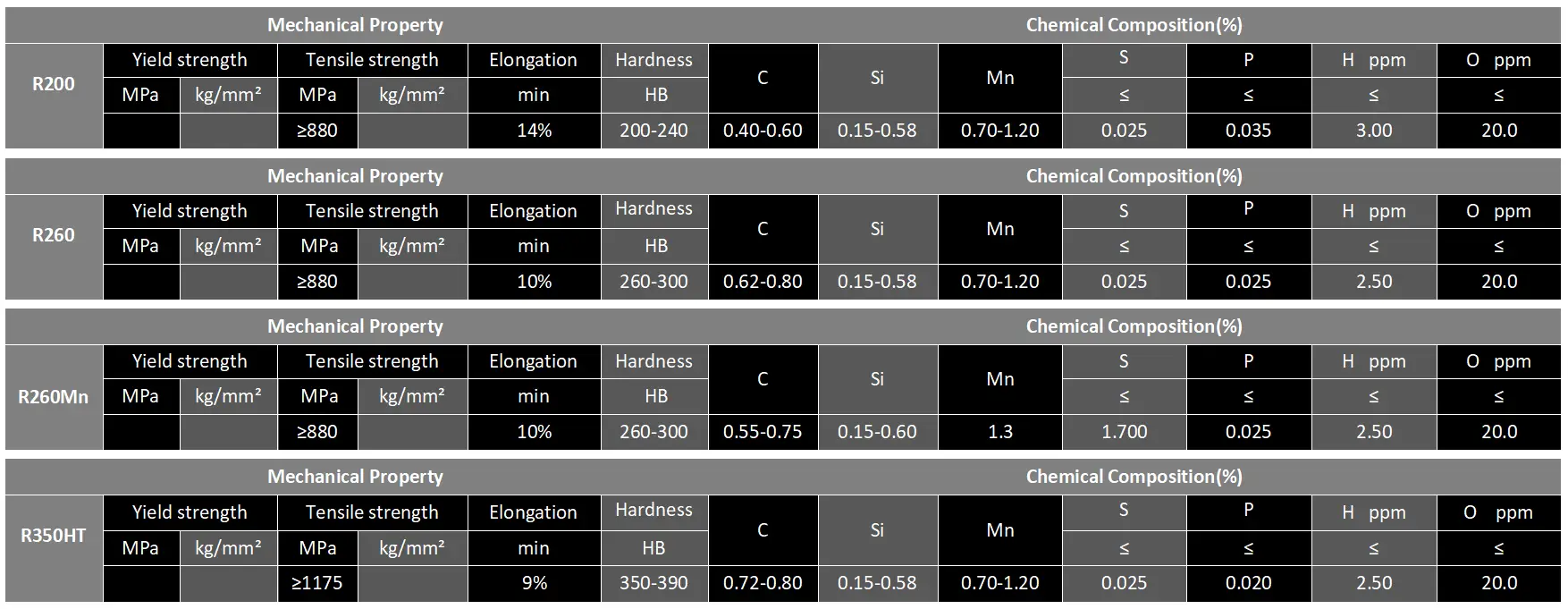

49E2 Rail Material & Mechanical Properties
49E2 rails are manufactured using high-quality carbon steel available in R200, R260, R260Mn, and R350HT grades. Each grade offers specific performance benefits in terms of tensile strength, hardness, and fatigue resistance. This flexibility allows the 49E2 rail to adapt to diverse service conditions—from light rail transit to rugged mine transport lines.
Custom Processing Options for 49E2 Rails
At Glory Track, we offer full-range custom processing services to support your on-site installation needs and reduce post-delivery handling time. All processes are executed based on your technical drawings or project specifications.
Our Services Include:

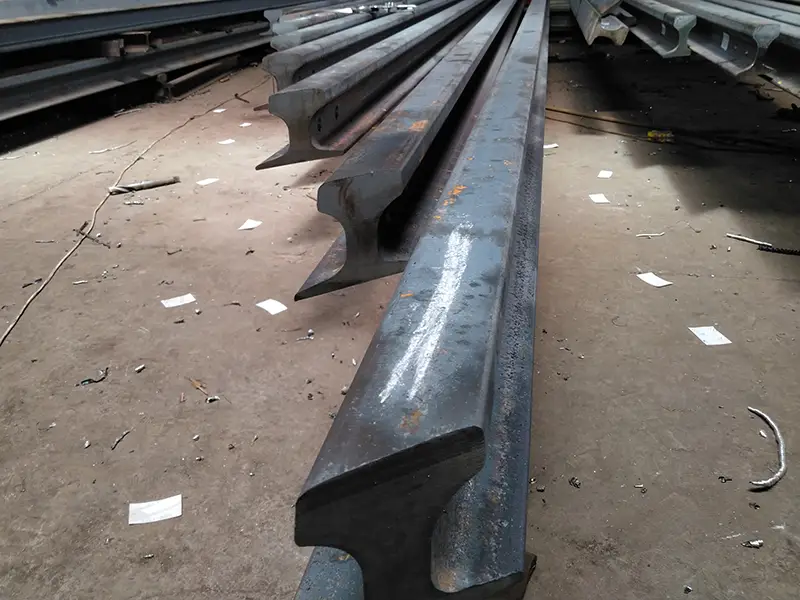

- Cutting to any length from 1–25 meters
- Drilling for fishplate connections or bolting systems

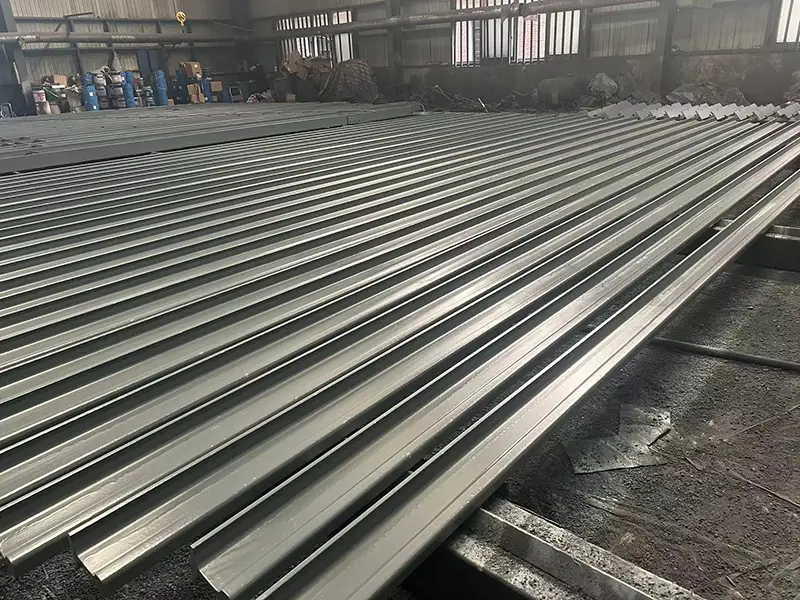

- Surface coating, including painting or galvanization
- End-face processing and deburring for precise alignment
Our goal is to deliver ready-to-install rail products that meet both technical precision and installation efficiency.
Applications of 49E2 Rail
Industrial Logistics Tracks
From steel mills to container yards, the 49E2 rail delivers reliable performance for in-plant rail systems and heavy-duty material movement within industrial sites.
Mining & Tunnel Infrastructure
Its sturdy construction supports mine carts and tunnel-bound vehicles across high-abrasion environments. It helps ensure smooth transport of heavy loads through underground or surface mining systems.
Railway Transport Systems
Used in both national and industrial rail networks, 49E2 rails are ideal for freight corridors, branch lines, and dedicated cargo routes where durability and load-bearing capacity are critical.
Request a Quote for 49E2 Rails
Looking for high-performance steel rail for your railway or mining project? Let us provide a tailored solution. Share your specifications with us and receive a custom quotation within 24 hours.
Please include:
- Required length(s) and quantity
- Preferred steel grade
- Intended application (e.g., mining, rail freight, logistics)
- Any processing needs (e.g., drilling, cutting, coating)
