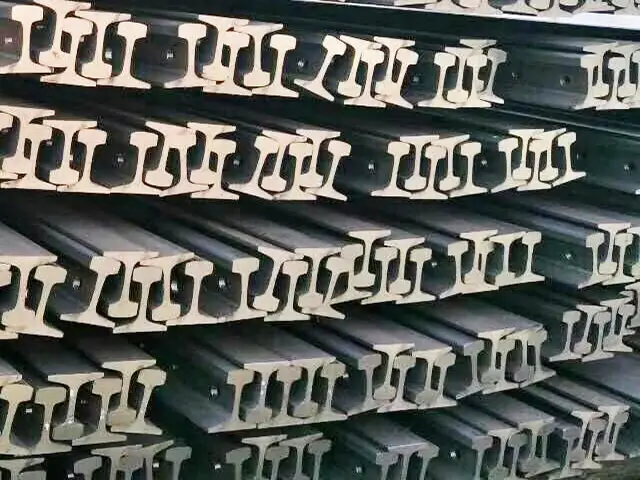

50E2 Rail
The 50E2 Rail, also referred to as 50EB-T, is a high-performance heavy rail profile engineered for demanding railway transport and underground mining operations. Complying with EN 13674-1 standards, the 50E2 Rail combines precise geometry with superior steel strength to ensure reliable load-bearing capacity and long service life. With a mass of 49.97 kg/m, a height of 151 mm, and a base width of 140 mm, this rail profile delivers exceptional stability, wear resistance, and dimensional accuracy, even in high-impact and heavy-haul environments. As a trusted railway supplier, Glory Track provides the 50E2 Rail for projects that require both technical precision and consistent quality, making it a preferred choice for global railway and mining applications.

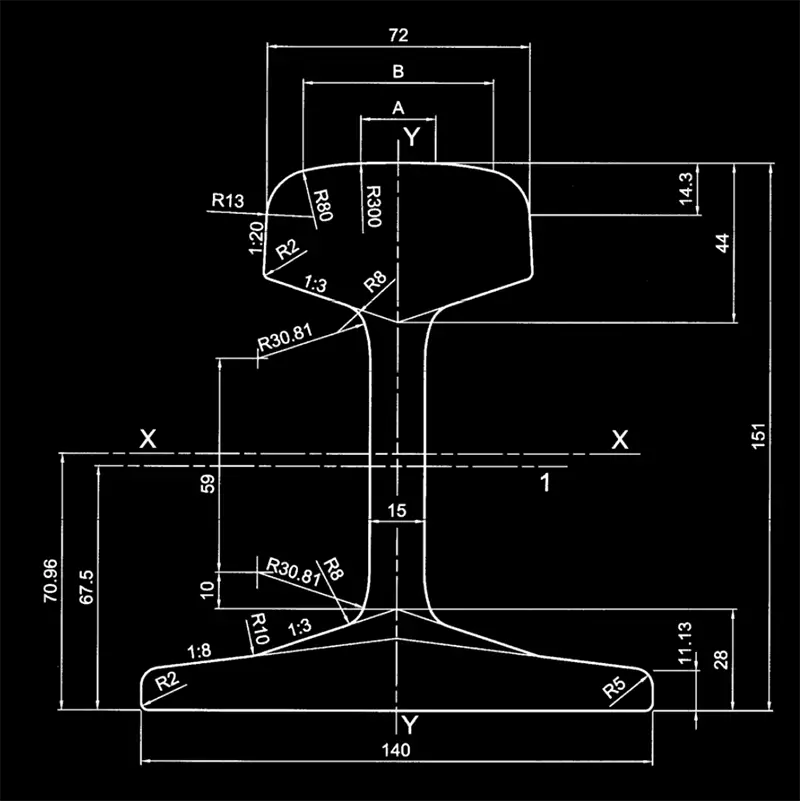

Specifications of 50E2 Rail
| Height: 151 mm | Base Width: 140 mm |
| Head Width:72 mm | Web Thickness: 15 mm |
| Length: 6m-24m | Material: R200/R260/R260Mn/R350HT |
| Weight: 49.97 kg/m | Standard: EN13674-1 |
Need specific length or steel grade for your track system? Contact us for tailored production options.
50E2 Rail Steel Grade & Material

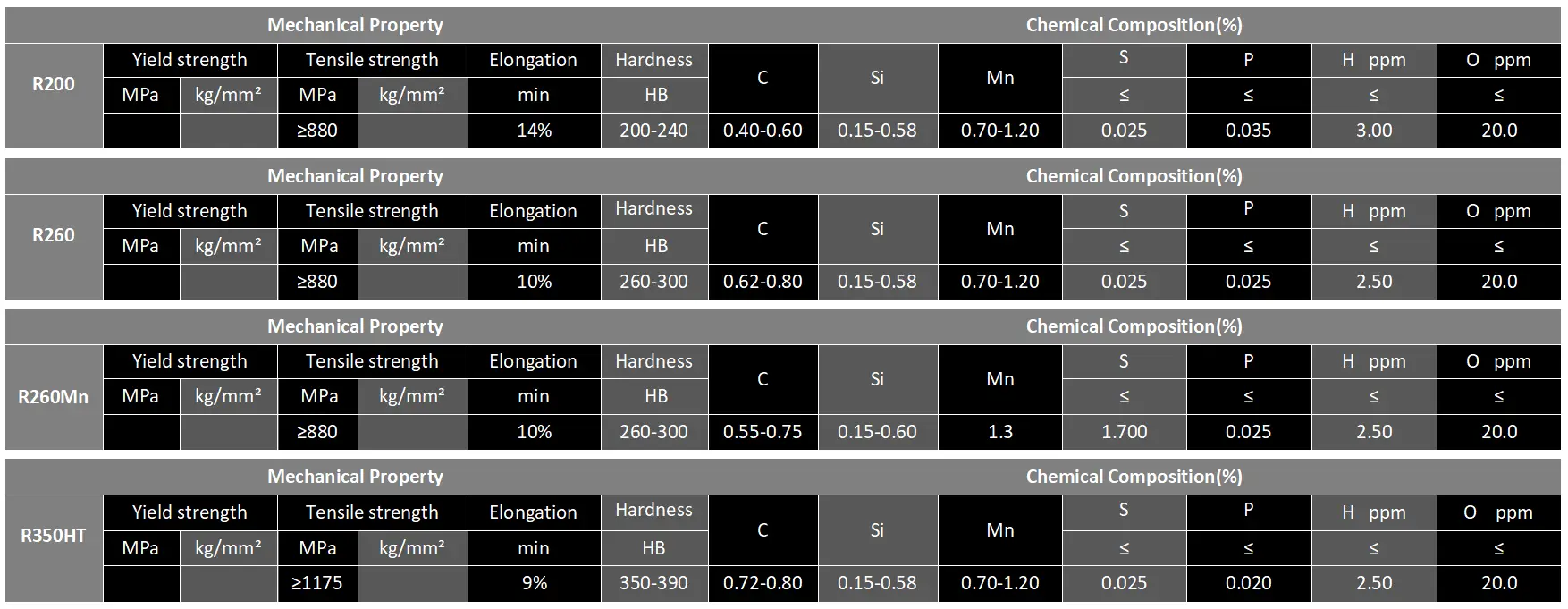

The 50E2 Rail uses high-quality steel grades such as R260 and R350HT. R260 steel offers excellent wear resistance and toughness, making it suitable for standard railway and industrial track applications. R350HT provides higher hardness and superior fatigue strength. Below are the detailed chemical composition and mechanical properties for each steel grade used in manufacturing the 50E2 Rail.
Applications of 50E2 Rail
Heavy-Haul Railway Lines
The 50E2 is engineered to handle high axle loads and continuous heavy freight traffic. Its robust profile and precise geometry ensure stable track alignment, reducing maintenance needs in long-distance heavy-haul operations.
Underground Mining Tracks
In underground mining, the 50 E2 Rail delivers reliable performance under extreme vibration, impact, and corrosive environments. Its superior steel grades provide the durability needed for mine haulage systems and tunnel track installations.
Port & Industrial Rail Systems
The 50EB-T Rail is also widely used in port terminals and industrial track networks. Its load-bearing capacity and wear resistance make it ideal for container handling systems, crane rail tracks, and other heavy-duty industrial applications.
Processing Options for 50E2 Rail
Glory Track offers a range of processing services for 50E2 Rail to match different project requirements. Our in-house capabilities help reduce on-site workload and ensure precise installation.
Our Services Include:

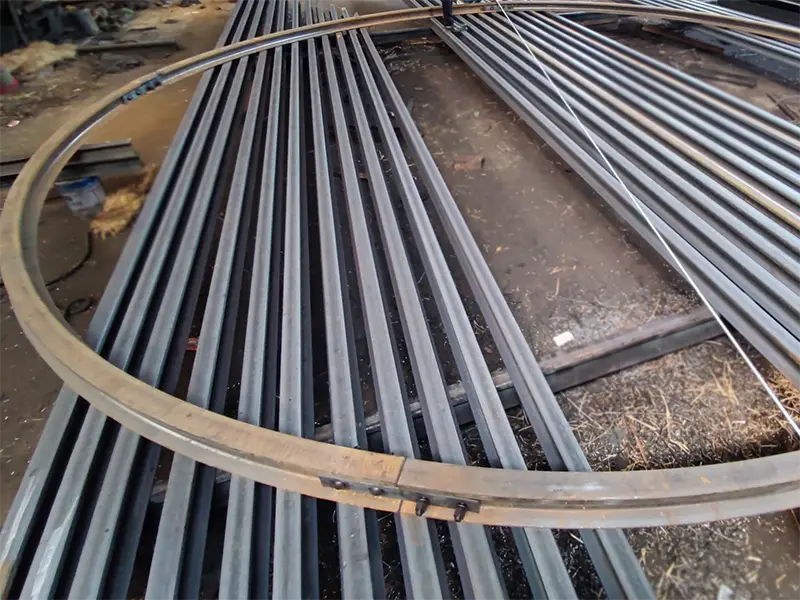

- Curved Rail sections can be fabricated for specific track layouts.

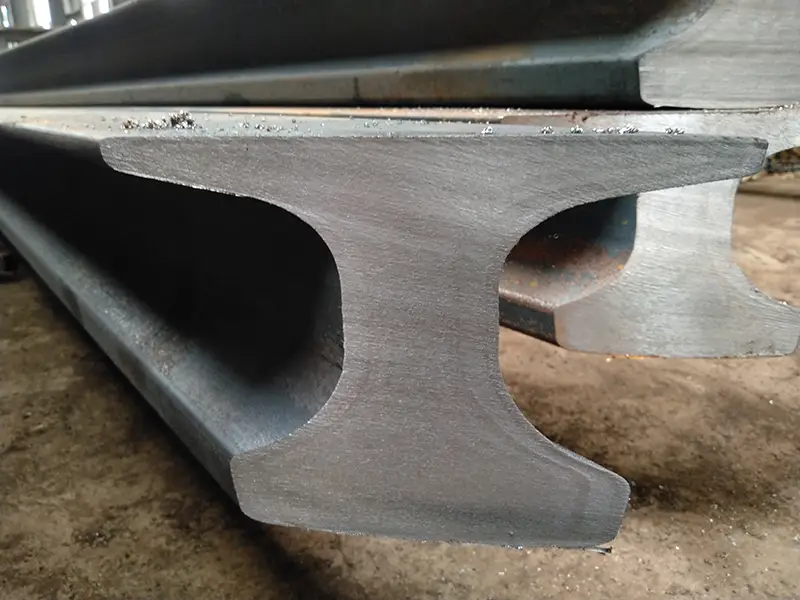

- Rails can be cut to exact lengths for faster installation and reduced waste.

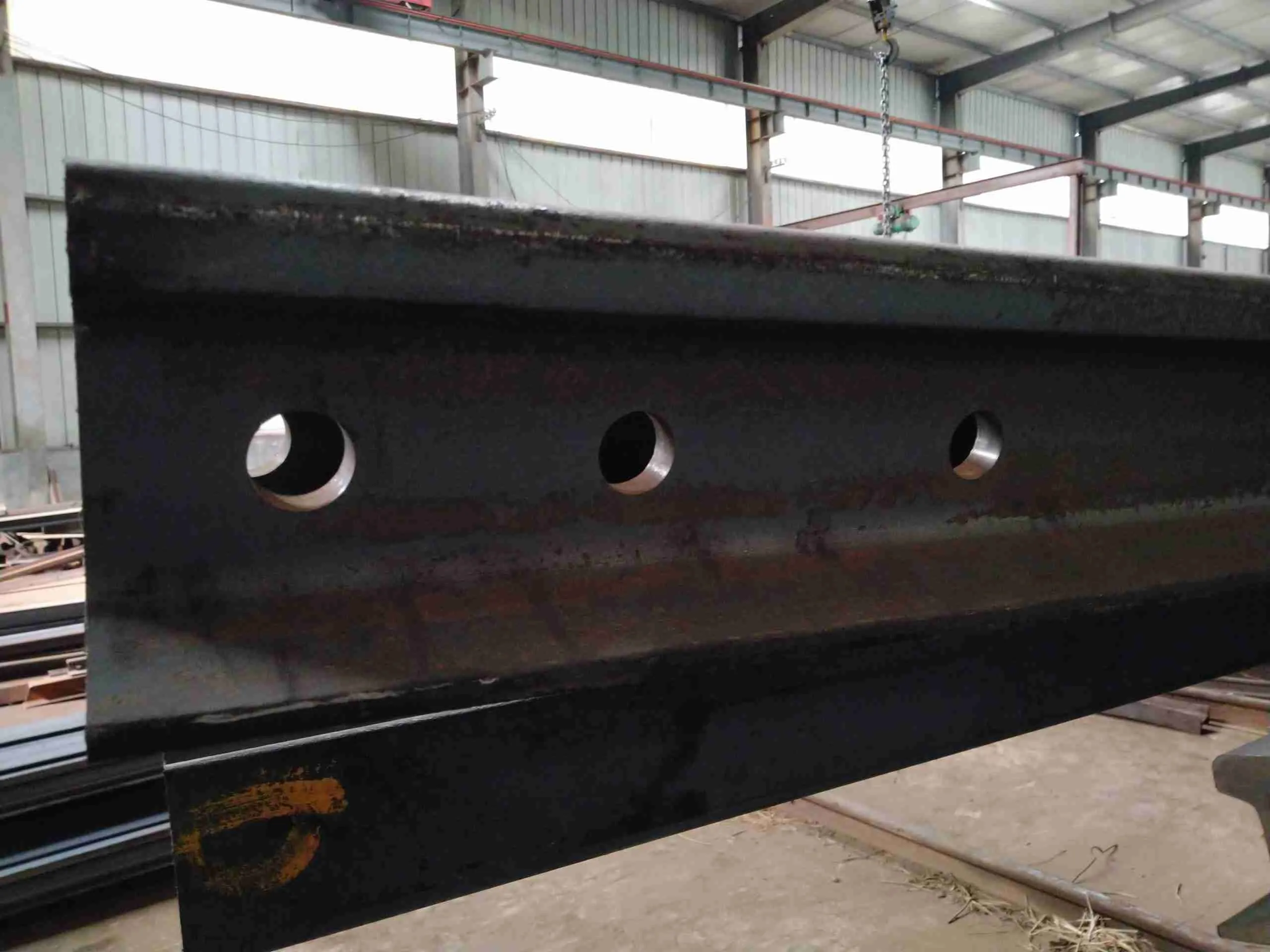

- Pre-drilled or punched bolt holes are available for easy joint assembly.

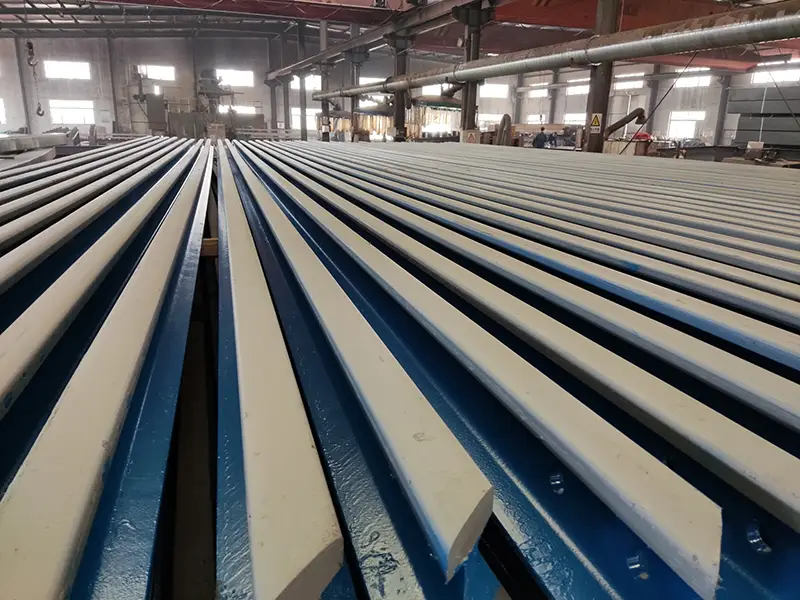

- Options include painting, galvanizing, or coating to extend service life in harsh environments.

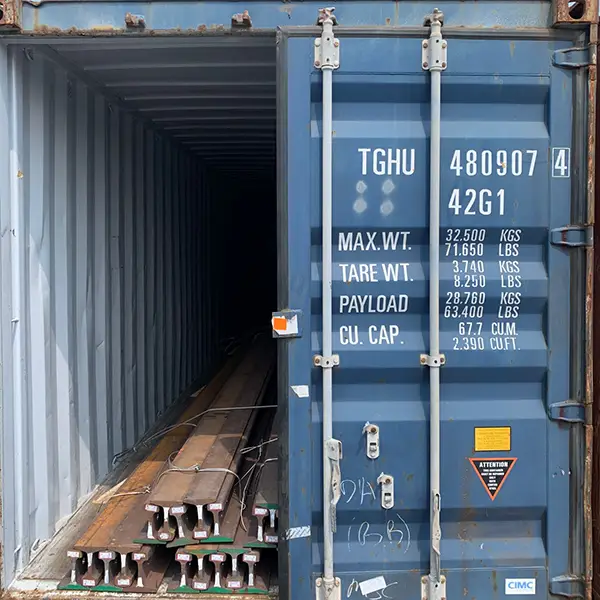

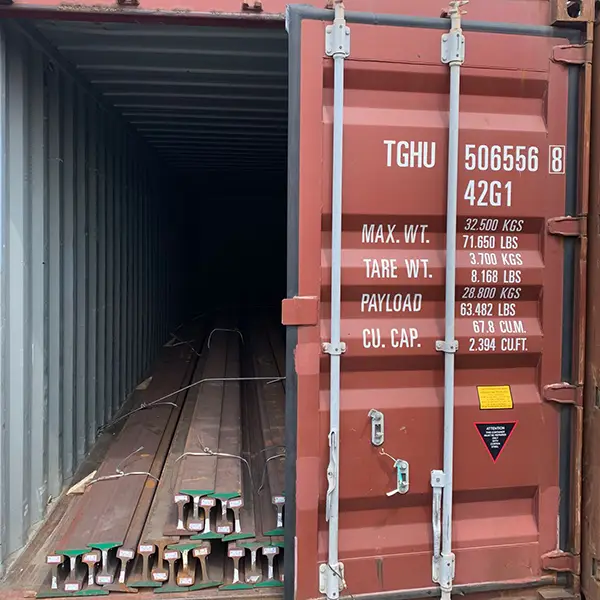

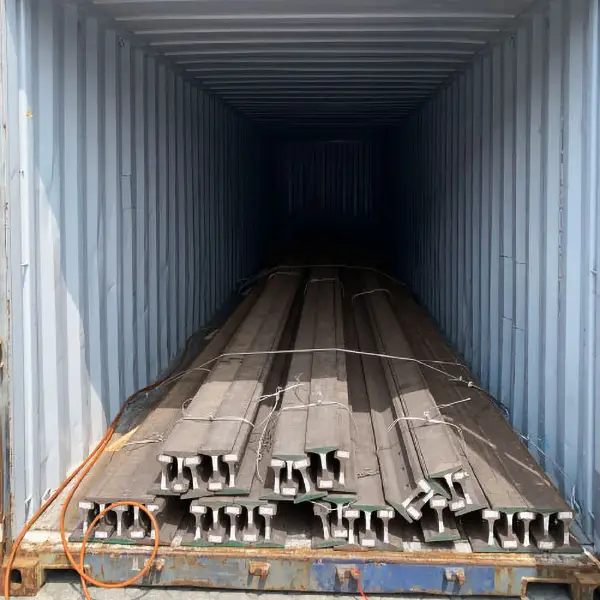

50E2 Rail Export and Container Loading
Glory Track provides secure and efficient shipping for the 50E2 model. Rails are loaded into containers or shipped in bulk according to customer requirements.
FAQ—Customer Concerns for 50E2 Rail
What is the typical delivery time for 50E2 Rail orders?
→ Delivery depends on quantity and customization, but standard orders are usually shipped within 2 weeks, and Glory Track provides tracking updates throughout the process.
Can I get 50E2 Rail in custom lengths or pre-drilled for installation?
→ Yes, we offer cut-to-length, pre-drilled, or bent rails to meet your project specifications, reducing onsite installation time.
How does Glory Track ensure the quality of 50 E2 Rail?
→ We welcome third-party inspections for chemical composition, mechanical properties, and dimensional accuracy. Our production is ISO 9001-certified, ensuring every batch meets international quality standards.
Is bulk shipping available for large-scale projects?
→ Absolutely. We support containerized or bulk shipping, with packaging options that protect rails during transport and simplify unloading at your site.
Can you supply rails for international projects?
→ Yes, Glory Track has experience delivering 50E2 Rail worldwide, including port, mining, and industrial projects, ensuring compliance with international shipping and customs regulations.

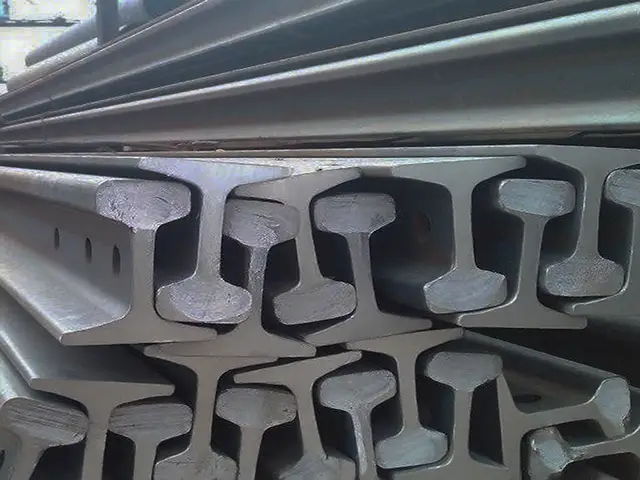

50E2 Rail for Sale
Glory Track offers this rail profile with ISO 9001-certified manufacturing, strict dimensional control, and optional third-party inspection to ensure consistent quality. With decades of experience in global rail export, we provide secure packaging and efficient container or bulk loading solutions, guaranteeing your rails arrive safely and on time.
Our direct factory supply model ensures competitive pricing without compromising quality. We also offer customization options including cut-to-length, drilling, bending, and anti-corrosion treatments, supported by a dedicated after-sales team that provides prompt communication and technical assistance. Partner with Glory Track to secure high-performance 50E2 Rail that delivers lasting value and reliability for your projects.
Contact Us Today
Glory Track offers reliable supply, customization, and global shipping, backed by ISO 9001-certified quality control. Contact us now to request a quotation, discuss project requirements, or explore processing options. Our dedicated team provides prompt responses and technical support to ensure your procurement is smooth and efficient.
