50E5 Rail
50E5 Rail is a high-performance European rail profile designed under the EN 13674-1 standard, also referred to as 50 kg rail or 50E5 steel rail. With a nominal weight of 49.9 kg/m, a height of 148 mm, and a base width of 135 mm, the 50E5 rail is engineered for heavy-duty railway lines, mining tracks, and industrial rail systems. Its optimized head width, web thickness, and base geometry ensure excellent load-bearing capacity, stability, and long service life, making it suitable for both mainline and specialized transport infrastructure where strength and durability are critical.

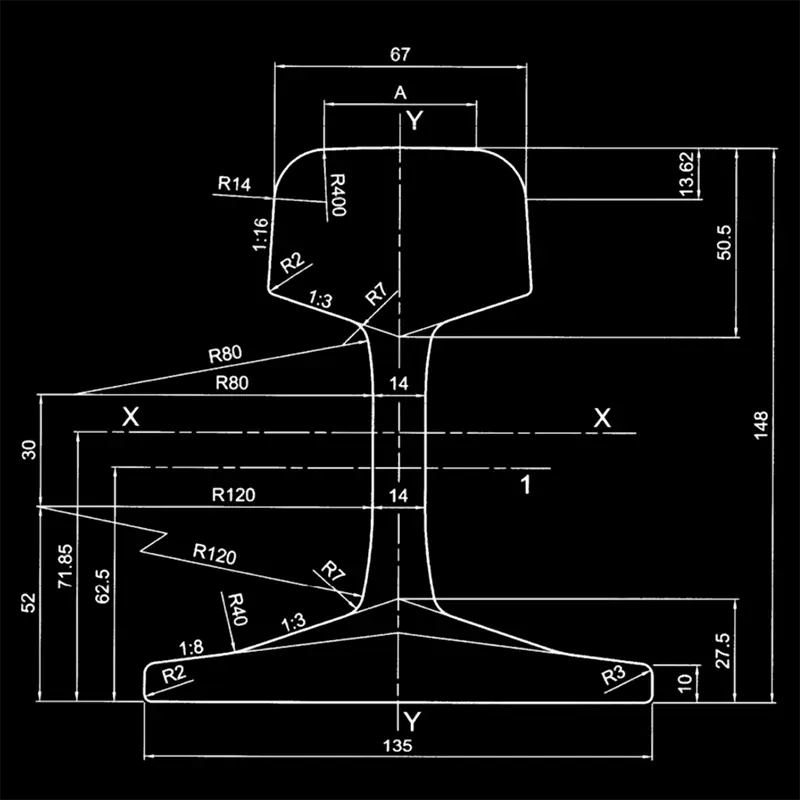

Specifications of 50E5 Rail
| Height: 148 mm | Base Width: 135 mm |
| Head Width:67 mm | Web Thickness: 14 mm |
| Length: 6m-24m | Material: R200/R260/R260Mn/R350HT |
| Weight: 49.9 kg/m | Standard: EN13674-1 |
Need specific length or steel grade for your track system? Contact us for tailored production options.
50E5 Rail Steel Grade & Material

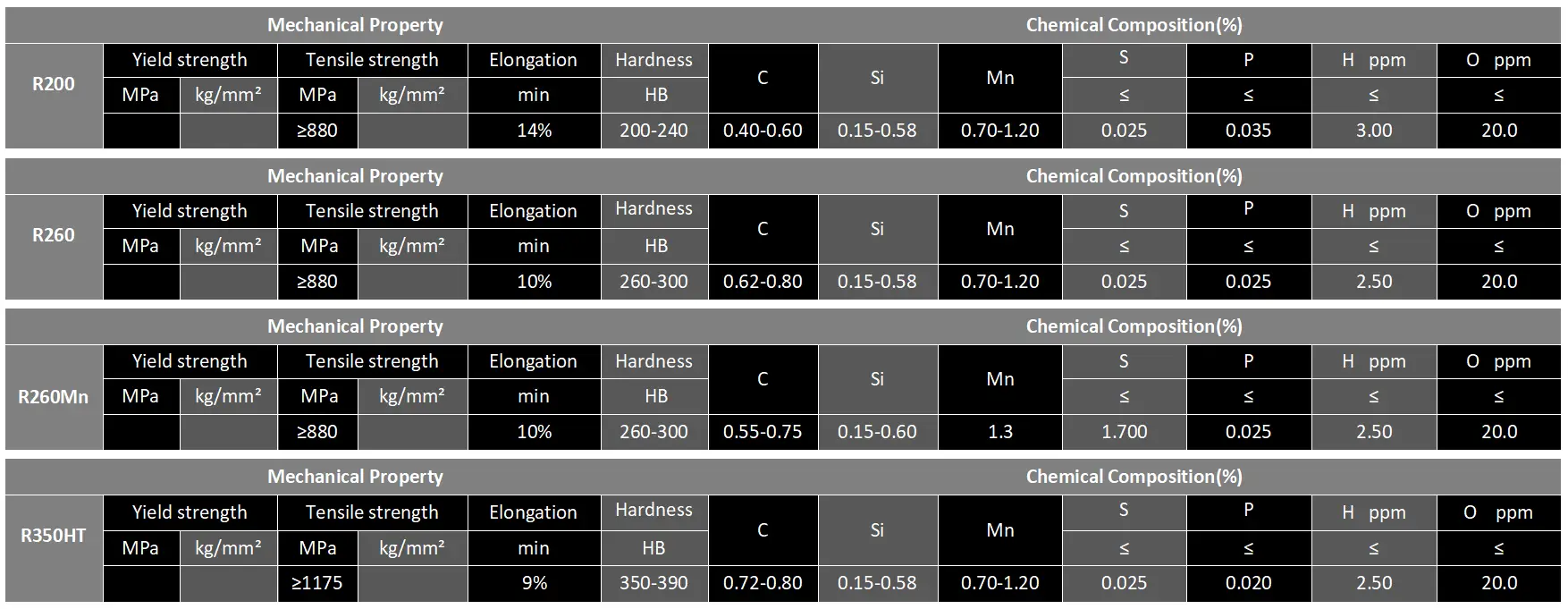

The 50E5 Rail is commonly manufactured using high-quality steel grades such as R260 and R350HT, meeting EN 13674-1 requirements. R260 steel offers excellent toughness and wear resistance for standard railway and industrial track applications, while R350HT provides higher hardness and enhanced fatigue performance, ideal for heavy axle-load lines, mining tracks, and industrial rail systems. Below is the chemical composition and mechanical properties of the steel grades used in producing the 50E5 Rail.
Applications of 50E5 Rail
Mainline & Passenger Railways
50E5 rail is widely used in mainline and regional passenger railway lines. Its optimized head, web, and base geometry ensures stable track alignment, excellent load-bearing capacity, and long-term durability. Designed to meet EN 13674-1 standards, 50E5 rails reduce maintenance needs and deliver reliable performance for medium-to-heavy axle loads in freight and passenger transport.
Ports & Specialized Infrastructure
50E5 rails are also applied in ports, shipyards, and specialized projects such as tunnel railways and crane runways. With customization options like cutting, drilling, bending, and anti-corrosion coatings, 50E5 rails adapt to diverse project requirements. Their high stability and dimensional accuracy provide safe and efficient operation for container handling, shiplifts, and other specialized industrial rail systems.
Industrial & Mining Rail Systems
In industrial facilities and mining operations, 50E5 rails support heavy trolleys, ore wagons, and factory transport lines. Their superior wear resistance, combined with optional head-hardened steel, ensures consistent performance under high-vibration and heavy-duty conditions. This makes 50E5 rails suitable for mining rail tracks, steel mills, and industrial logistics applications.
Processing Options for 50E5 Rail
Our in-house facilities provide a wide range of 50E5 rail processing services to meet diverse project requirements. Completing machining and finishing work in the factory helps reduce on-site workload and ensures precise installation.
Our Services Include:

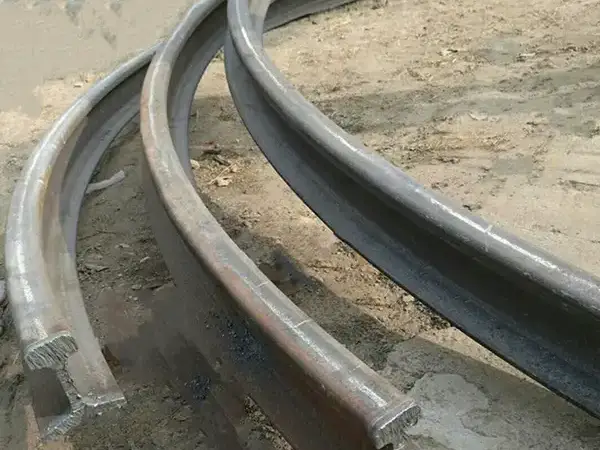

- Cold & Thermal Bending

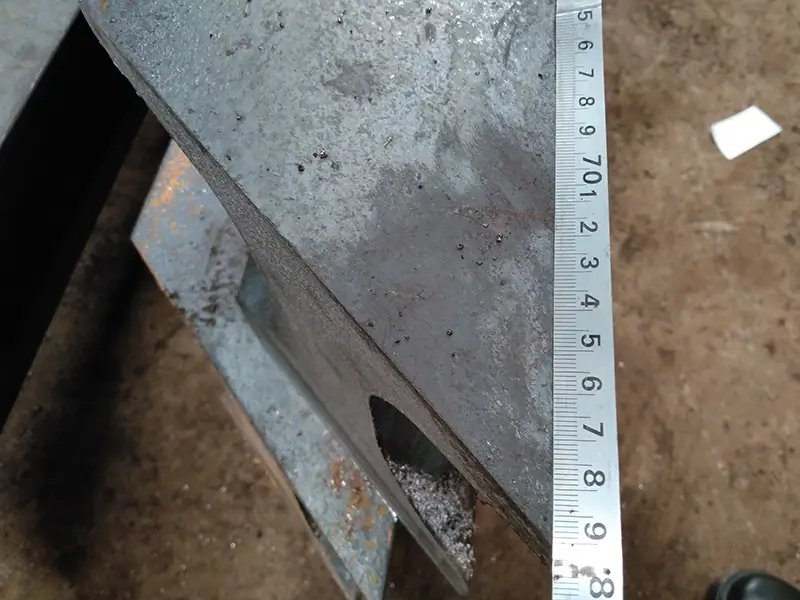

- Straight & Angled Cutting

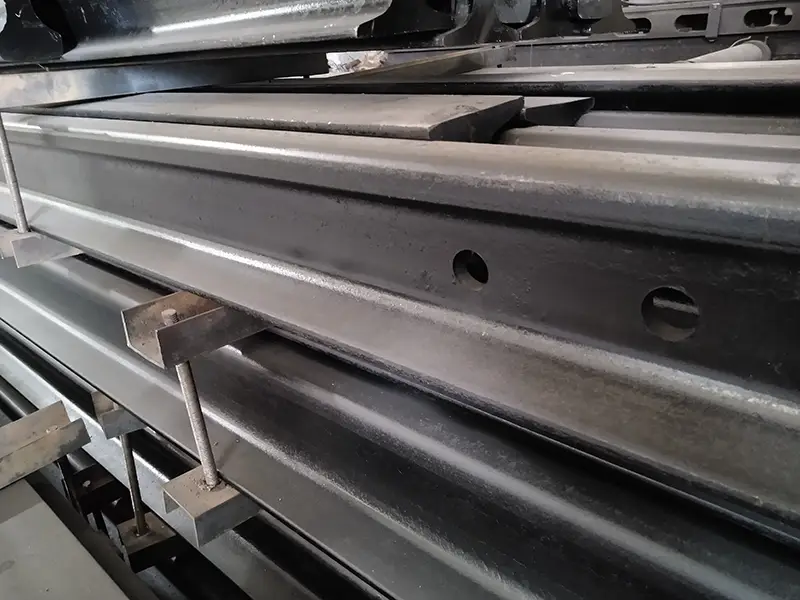

- Precision Drilling

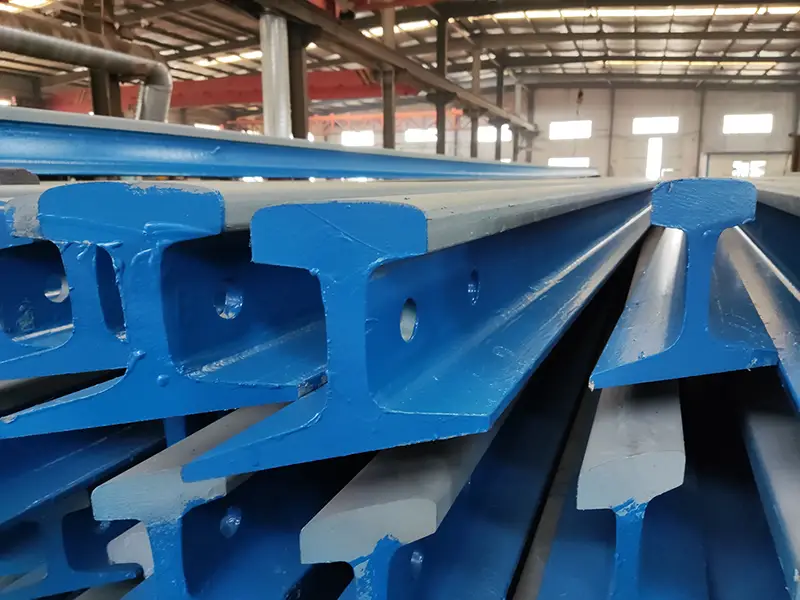

- Protective Coatings

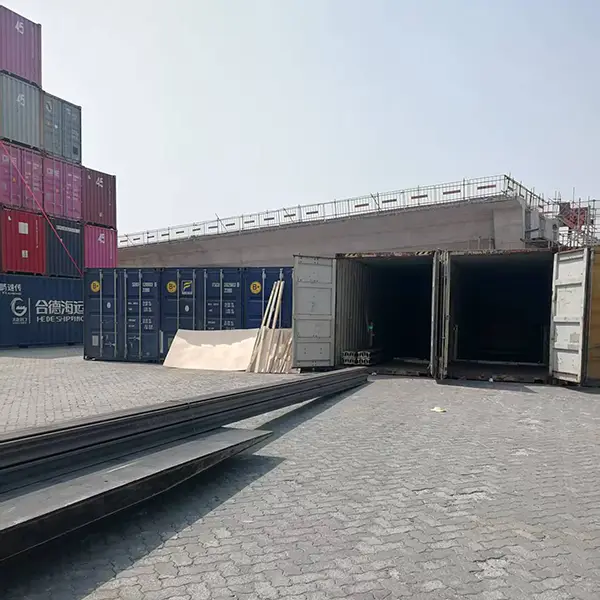

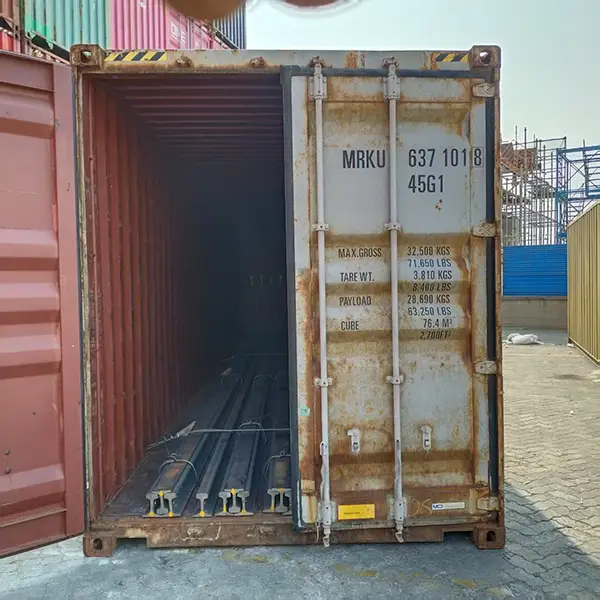

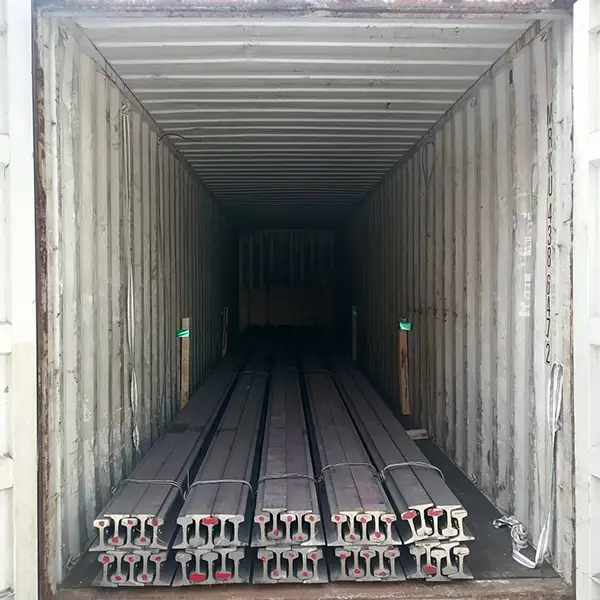

50E5 Rail Export and Container Loading
50E5 rails are securely packed to international shipping standards, using steel straps and wooden supports to maintain stability during transit. Optional protective coatings and waterproof wrapping are available for extended sea transport.
Rails arrive safely at ports or project sites thanks to our experienced logistics team. Accessories such as fishplates, bolts, and clips are carefully packed in sturdy wooden crates, ensuring reliable handling and minimal risk of damage during loading and unloading.
FAQ—Customer Concerns for 50E5 Rail
How do you ensure the quality of 50E5 rail shipments?
→ All 50E5 rails are produced under ISO 9001-certified quality control and support third-party inspection for chemical composition, mechanical properties, and dimensional accuracy.
Is bulk shipping available for large projects?
→ Absolutely. We offer containerized or bulk shipment, with secure packaging to protect rails and accessories during transport.
Are 50E5 rails suitable for international projects?
→Yes, our 50E5 rails have been exported globally for mainline, port, and industrial applications, complying with EN 13674-1 standards.
50E5 Rail for Sale
Glory Track offers 50E5 rails designed for heavy-duty railway lines, industrial tracks, and mining operations. With over 15 years of rail manufacturing and export experience, our production follows EN 13674-1 standards, ensuring consistent quality, dimensional accuracy, and long-term performance.
We provide flexible processing options, including cutting, drilling, bending, and protective coatings, tailored to your project needs. Backed by ISO 9001-certified quality control and support for third-party inspection, Glory Track guarantees reliable supply and safe delivery worldwide. Partner with us to secure certified 50E5 rails and professional support for every stage of your project.
Contact Us Today
Glory Track ensures ISO 9001-certified quality, flexible processing, and global delivery for every 50E5 rail order. Partner with us to secure durable, high-performance rails and expert technical support for your project.
