54E2 Rail
54E2 Rail (also known as UIC54E) is a European standard heavy-duty rail profile designed under EN13674-1. With a nominal weight of 53.82 kg/m, height of 161 mm, and head width of 67 mm, this rail is engineered for mainline railways, industrial tracks, and heavy-haul transport. Its optimized cross-section—including a thick web and wide base—provides excellent load-bearing capacity and durability. 54E2 rails are suitable for high-traffic lines, ensuring long service life, stability, and safe operation under demanding conditions.

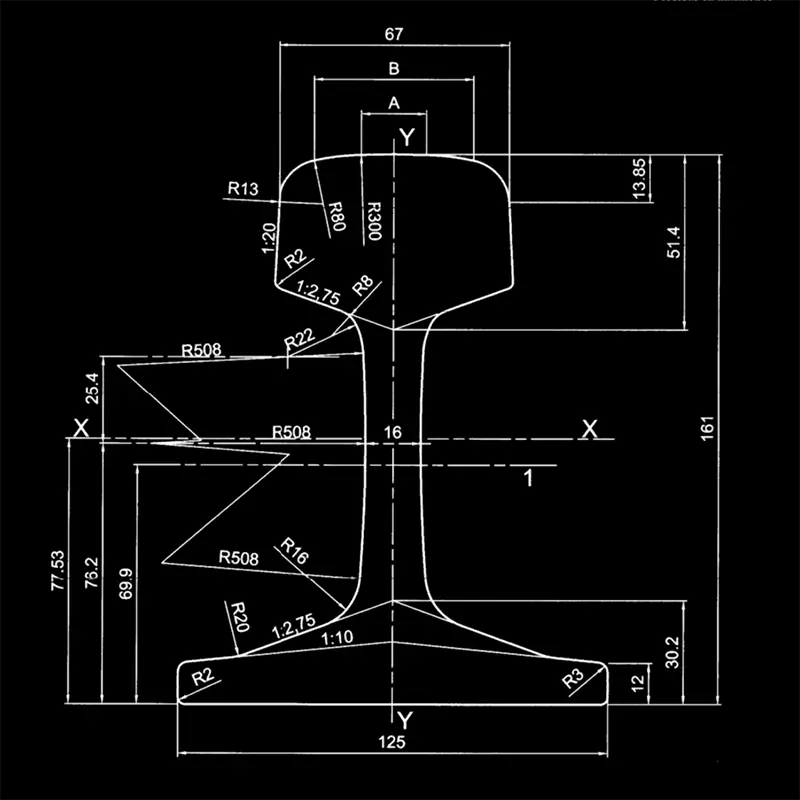

Specifications of 54E2 Rail
| Height: 161 mm | Base Width: 125 mm |
| Head Width:67 mm | Web Thickness: 16 mm |
| Length: 6m-24m | Material: R200/R260/R260Mn/R350HT |
| Weight: 53.82 kg/m | Standard: EN13674-1 |
Need specific length or steel grade for your track system? Contact us for tailored production options.

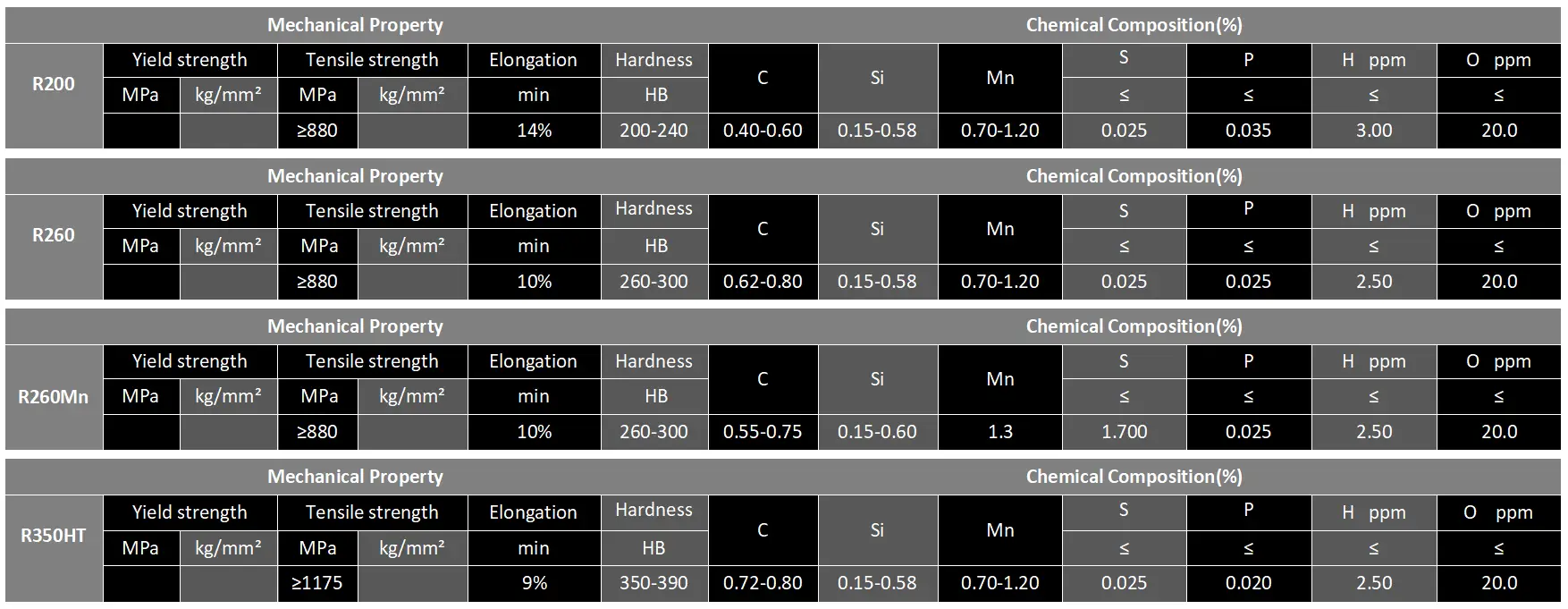

54E2 Rail Steel Grade & Material
54E2 rails are manufactured from high-quality R200, R260, R260Mn, or R350HT steel in compliance with EN13674-1 standards. These materials provide excellent wear resistance, toughness, and fatigue strength, ensuring long-term reliability for heavy-duty railway, industrial, and port applications.
Applications of 54E2 Rail
Mainline Railways
54E2 rails are extensively used in heavy-haul and passenger lines, supporting high axle loads while maintaining stability and reducing track maintenance.
Industrial & Mining Tracks
For industry mills, mining, and heavy factories, 54E2 rail handles high-frequency operations and heavy loads, providing consistent durability for trolleys, wagons, and industrial locomotives.
Ports & Special Infrastructure
54E2 rail is ideal for crane runways, shiplifts, and specialized heavy-load tracks, offering robust support and customizable options.
Processing Options for 54E2 Rail
Our factory offers tailored 54E2 rail processing to reduce on-site workload and ensure precise installation. Each rail can be customized to meet project-specific requirements, combining quality and efficiency for railway, industrial, and crane track applications.
Our Services Include:

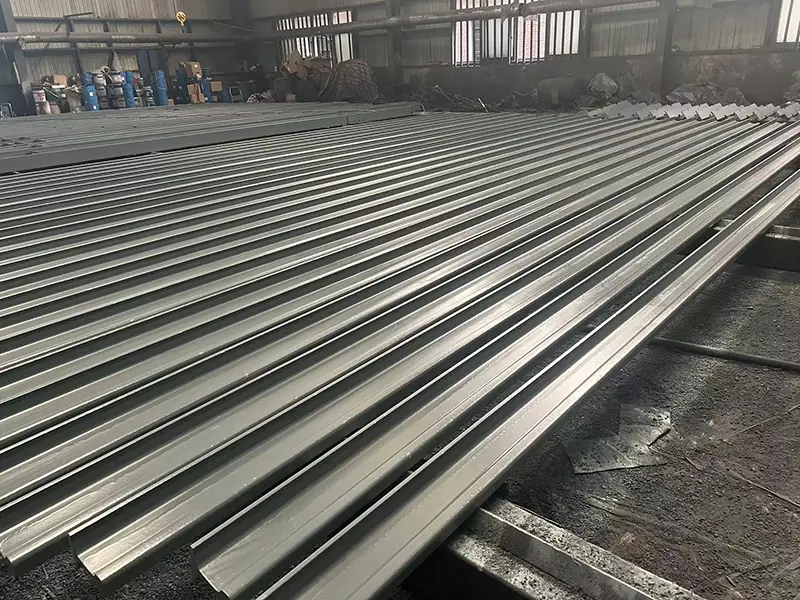

- Protective Coating: Painting, oiling, or zinc coating applied for corrosion resistance

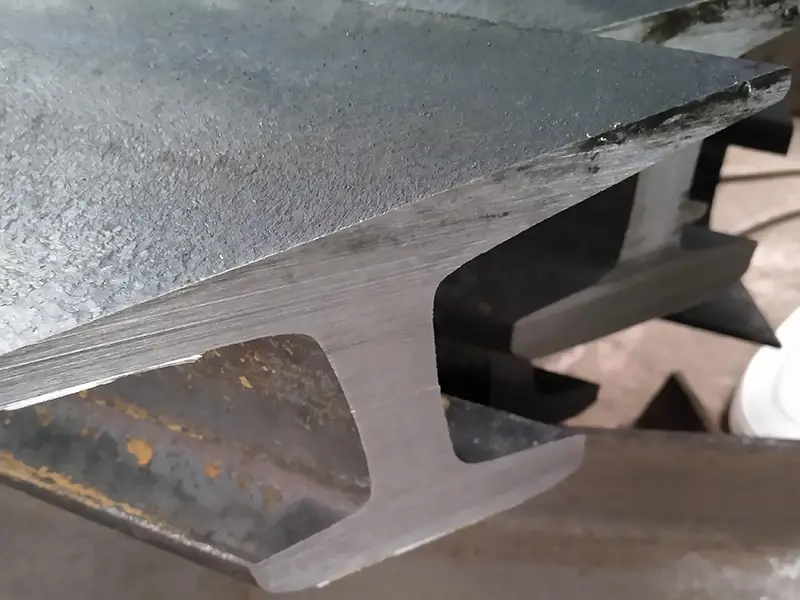

- End Cutting: Custom joints for specialized track layouts and smooth assembly

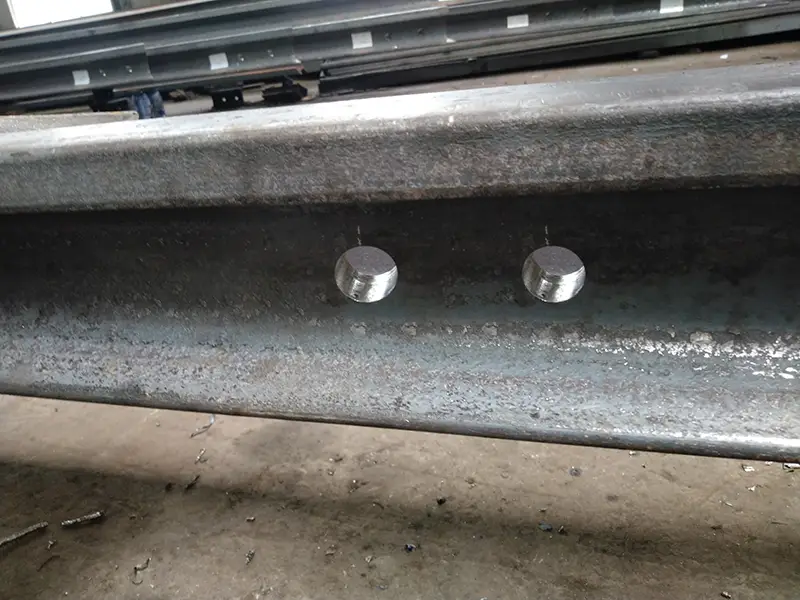

- Hole punching and drilling：For fishplates, fastening systems, and specialized joint connections.

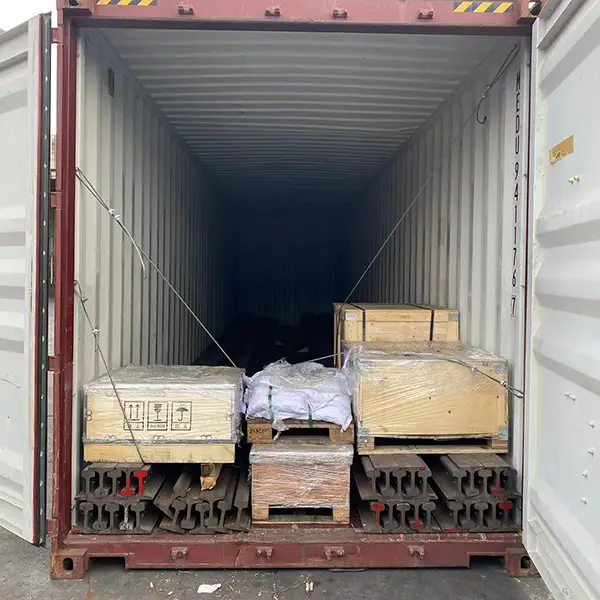

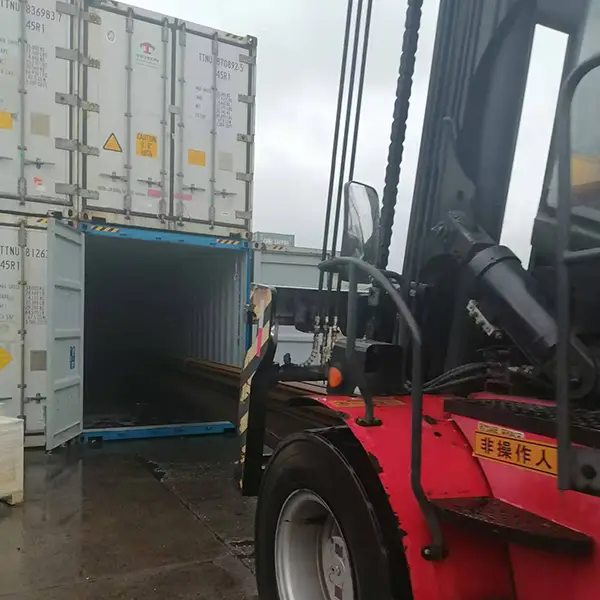

54E2 Rail Export and Container Loading

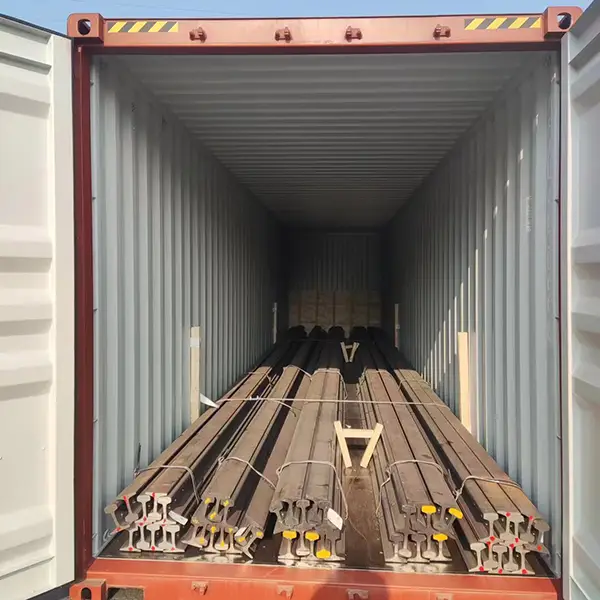

54E2 rails are carefully packed for international transport, with steel straps and wooden supports securing each bundle to prevent movement during shipping. Protective coatings and waterproof wrapping are applied as needed to safeguard against corrosion during long-distance sea transport.
Accessories such as fishplates, clips, and bolts are packed in strong wooden crates and firmly secured inside the container. Our logistics team ensures reliable handling and on-time delivery worldwide, supporting projects in Europe, Africa, and Asia with consistent quality and service.
54E2 Rail for Sale
Glory Track offers high-quality 54E2 rails backed by over 15 years of export and manufacturing experience. Our rails comply with EN13674-1 and are available in multiple steel grades and lengths to meet diverse project requirements.
Beyond standard supply, we provide custom solutions including bending, drilling, and anti-corrosion coating, combined with engineering support to reduce installation risks and ensure smooth project execution. Partnering with us guarantees not only certified 54E2 rails but also professional guidance and global delivery reliability.
Contact Us Today
Looking for 54E2 rail supply for your railway, port, or industrial project? Contact our engineering team via the form below, and we’ll respond with a tailored solution within 24 hours.
