54E5 Rail
54E5 rail, also known as 54E1AHC, is a heavy-duty European rail profile designed under the EN13674-1 standard. With a height of 159 mm, a head width of 70.2 mm, and a base width of 140 mm, it provides superior stability for mainline, industrial, and mining tracks. Its 54.42 kg/m weight and robust web thickness of 16 mm ensure long-term load-bearing capacity, making it ideal for high-traffic and heavy-load railway lines. The profile balances strength, wear resistance, and durability, suitable for both standard railway tracks and specialized industrial rail systems.

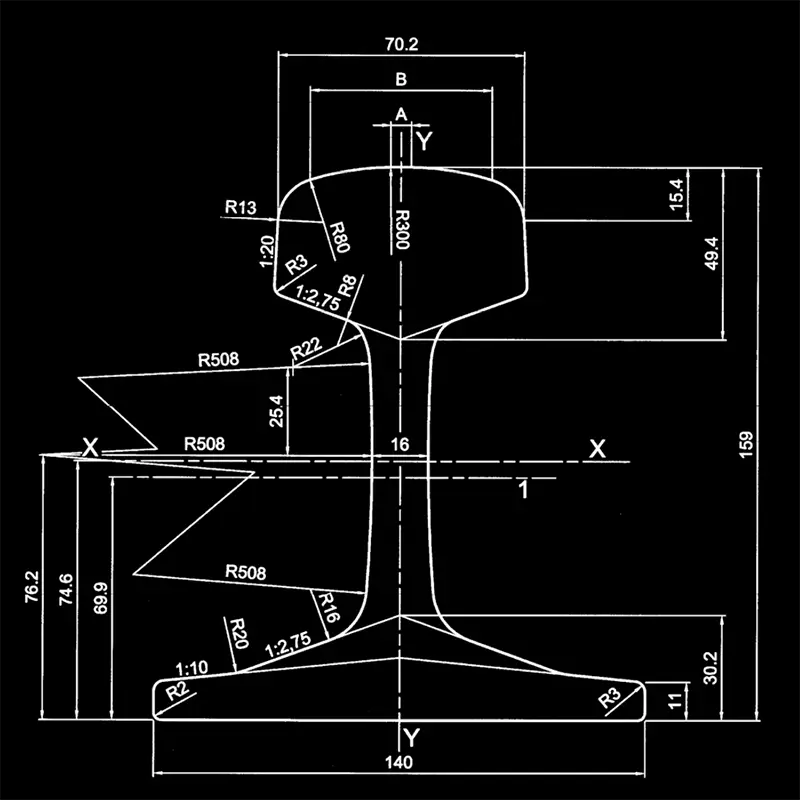

Specifications of 54E5 Rail
| Height: 159 mm | Base Width: 140 mm |
| Head Width:70.2 mm | Web Thickness: 16 mm |
| Length: 6m-24m | Material: R200/R260/R260Mn/R350HT |
| Weight: 54.42 kg/m | Standard: EN13674-1 |
Need specific length or steel grade for your track system? Contact us for tailored production options.

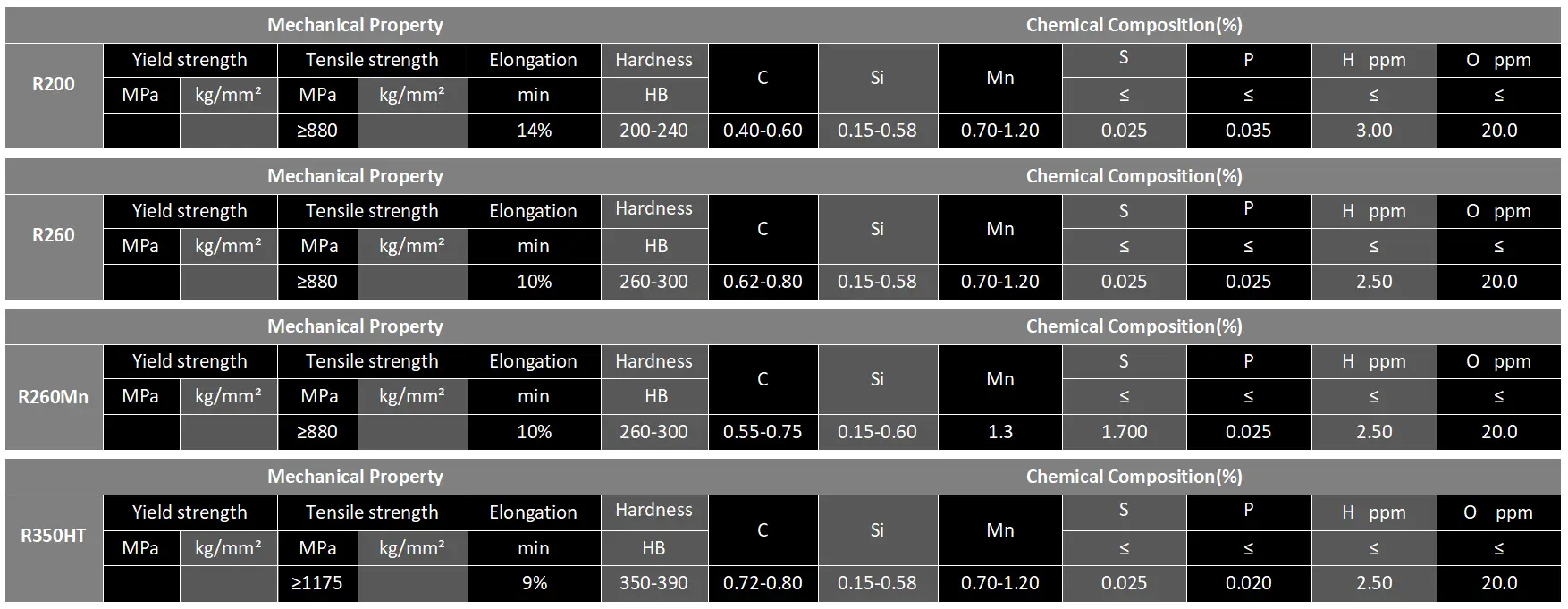

54E5 Rail Steel Grade & Material
54E5 rails are produced from premium grades such as R260, R260Mn, and R350HT steels under the EN13674-1 standard. These steels offer high tensile strength, excellent wear resistance, and reliable fatigue performance.
Applications of 54E5 Rail
Mainline Railways
Used extensively in high-traffic mainline railways, 54E5 rail supports heavy freight and passenger trains. Its geometry ensures track stability and minimizes wear, maintaining safety and reliability over decades.
Industrial & Mining Lines
Ideal for ore transport, steel plant trolleys, and industrial rail logistics, the 54E5 profile withstands repeated heavy loads and vibration, ensuring efficient material handling in harsh industrial environments.
Ports & Special Projects
For ports, shipyards, and tunnel tracks, 54E5 rail provides durable support for cranes, shiplifts, and specialized infrastructure. Customizable bending, drilling, and coating options allow adaptation to unique project layouts.
Processing Options for 54E5 Rail
Our factory offers versatile 54E5 rail processing to reduce on-site workload and ensure precise installation. Each rail can be tailored to your project requirements:
Our Services Include:

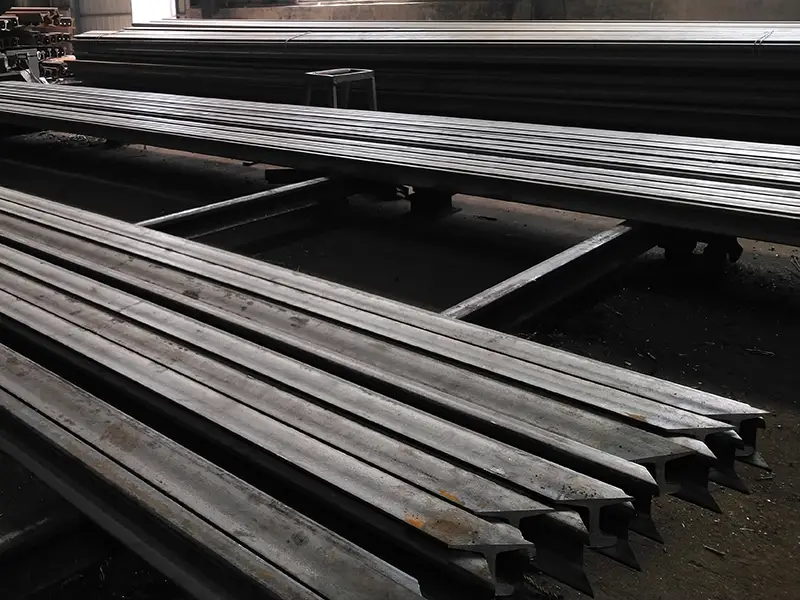

- Straight & Angled Cutting: Exact lengths for efficient assembly.
- L-Shaped End Cutting: Custom joints for specialized track layouts.

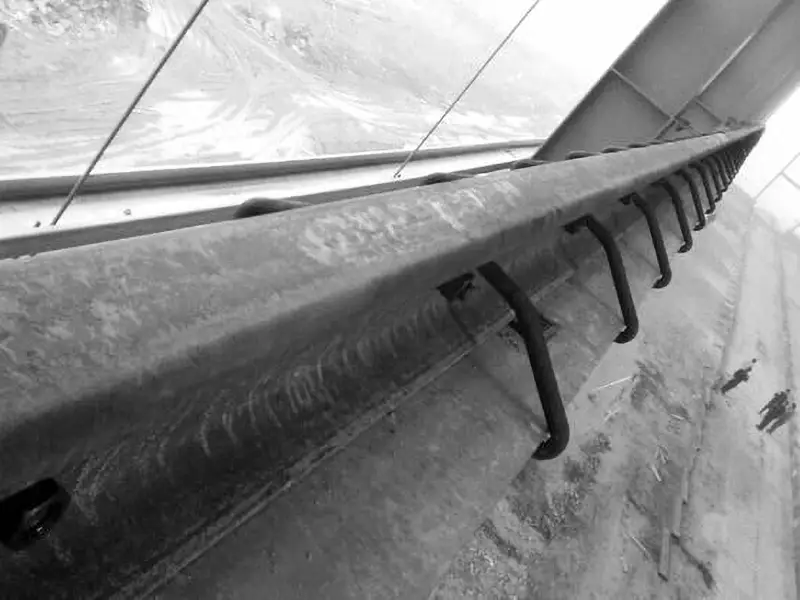

- Hole Drilling: Web and base holes for fishplates or fasteners.

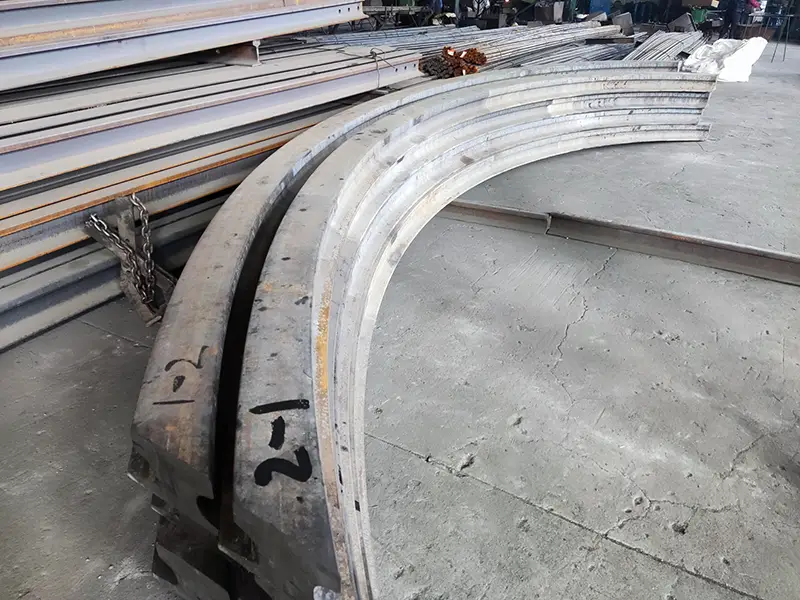

- Bending: Cold or hot bending for curves, tunnels, or crane tracks.

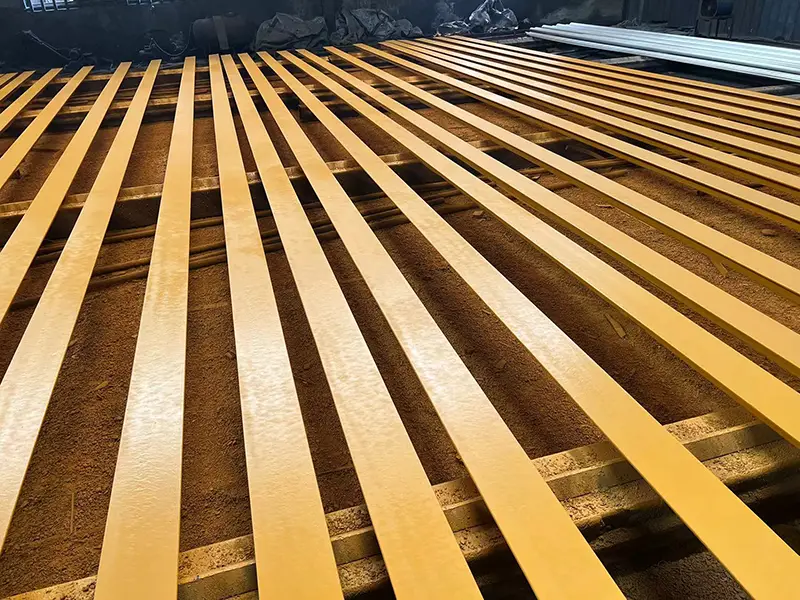

- Protective Coating: Painting, oiling, or zinc coating for corrosion protection.

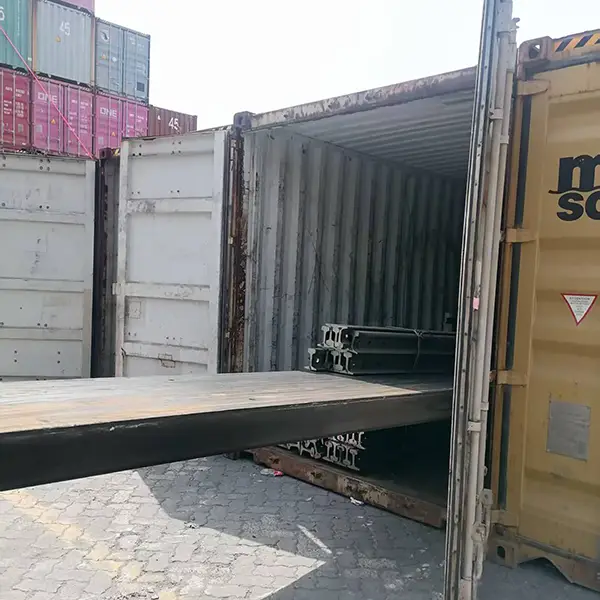

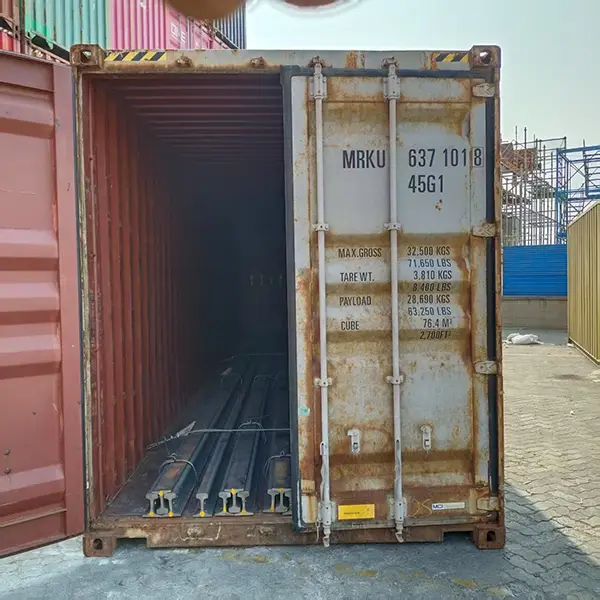

54E5 Rail Export and Container Loading

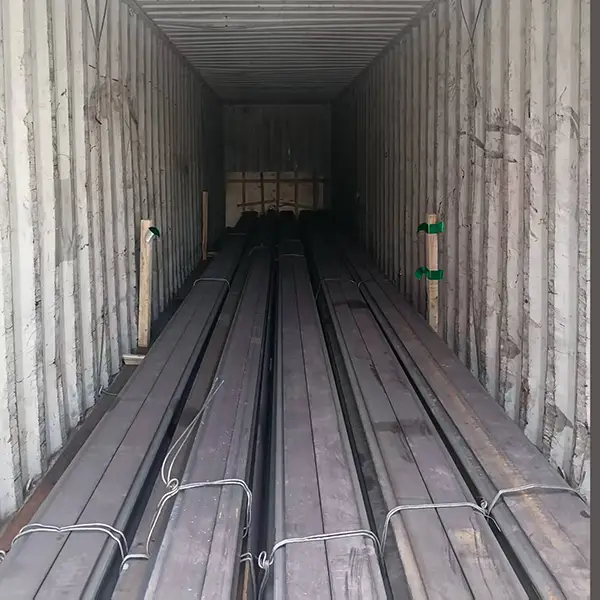

All 54E5 rails are packed following international shipping standards to protect against damage during transit. Rails are bundled with steel straps. Waterproof wrapping or corrosion-resistant coating can be applied as requested.
Accessories, including fishplates, clips, and bolts, are packed in sturdy wooden crates and fixed inside containers. Our logistics team has extensive experience exporting rails to Africa, South America, and Southeast Asia, ensuring on-time delivery and safe arrival.
FAQ—Customer Concerns for 54E5 Rail
Can 54E5 rails handle high-speed freight lines?
→ Yes, using R350HT head-hardened steel, 54E5 rails are suitable for heavy axle loads and high-speed operations.
Are 54E5 rails compatible with standard fastening systems?
→ Fully compatible with EN13674-1 fastening systems; custom drilling or bending is available for specialized track designs.
Can 54E5 rails be customized for industrial or port projects?
→ Yes, we provide tailored cutting, bending, and protective coatings to fit unique layouts and heavy-duty applications.
54E5 Rail for Sale
Glory Track provides certified 54E5 rails for mainline, industrial, and port applications. With over 15 years of rail manufacturing experience, our rails meet international standards and undergo strict quality control to ensure performance and reliability.
Beyond supplying high-quality steel rails, we offer engineering support, custom processing, and logistics solutions. Partnering with Glory Track reduces downtime, ensures safe installation, and guarantees long-term cooperation for demanding heavy-duty projects.
Contact Us Today
Looking for reliable 54E5 rail supply? Fill out the form and our engineering team will respond within 24 hours with a tailored solution for your railway or industrial project.
