BS80A Rail
BS80A rail, also known as 39E1, is a versatile flat-bottom steel rail widely used in rail transport, port logistics, and mining infrastructure. Built to meet EN 13674-4 specifications, it combines structural stability with reliable wear resistance. Weighing 39.77 kg/m, it provides secure support for crane rails, short-haul tracks, and industrial locomotion systems—making it an ideal choice for projects requiring durability, dimensional precision, and cost-effective maintenance.
Rail Specification
| Height: 133.4 mm | Base Width: 117.5 mm |
| Head Width: 63.5 mm | Web Thickness: 13.1 mm |
| Length: 6m-24m | Material: R200/R260/R260Mn/R350HT |
| Weight: 39.77 kg/m | Standard: EN13674-4 |
If you have special requirements for length or higher strength materials, please contact us for special custom production.
BS80A Rail Material Specifications
The 39E1 (BS80A) rail is available in multiple steel grades such as R200, R260, R260Mn, and R350HT, each offering specific mechanical properties to suit varying operational demands. These material options ensure optimal performance across diverse load conditions and service environments. Key chemical and mechanical parameters are outlined below.
Custom Processing Options for BS80A Rail
To meet the diverse requirements of transport and industrial rail projects, Glory Track offers a full range of customization services for BS80A (39E1) rails. Whether you need non-standard lengths, specific hole placements, or enhanced surface protection, we provide tailored solutions based on your technical drawings and site conditions.

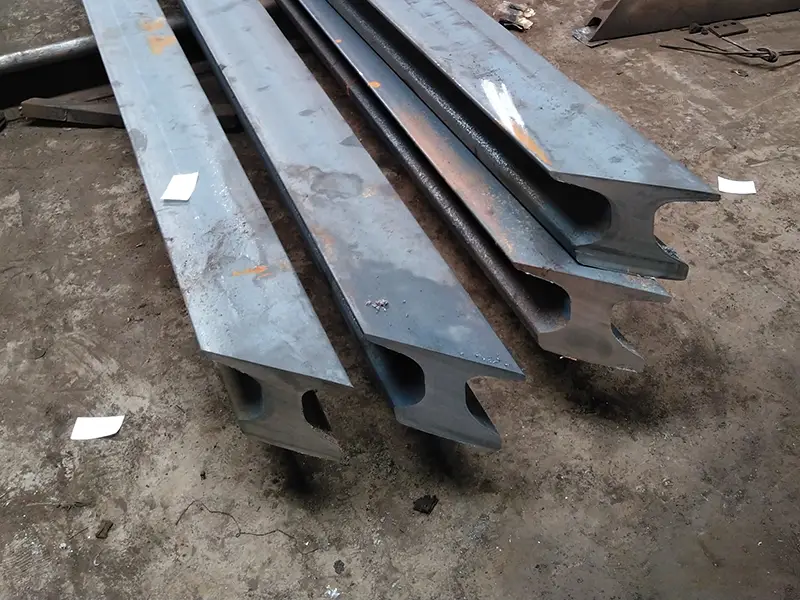

- Length cutting from （1-12m） rails

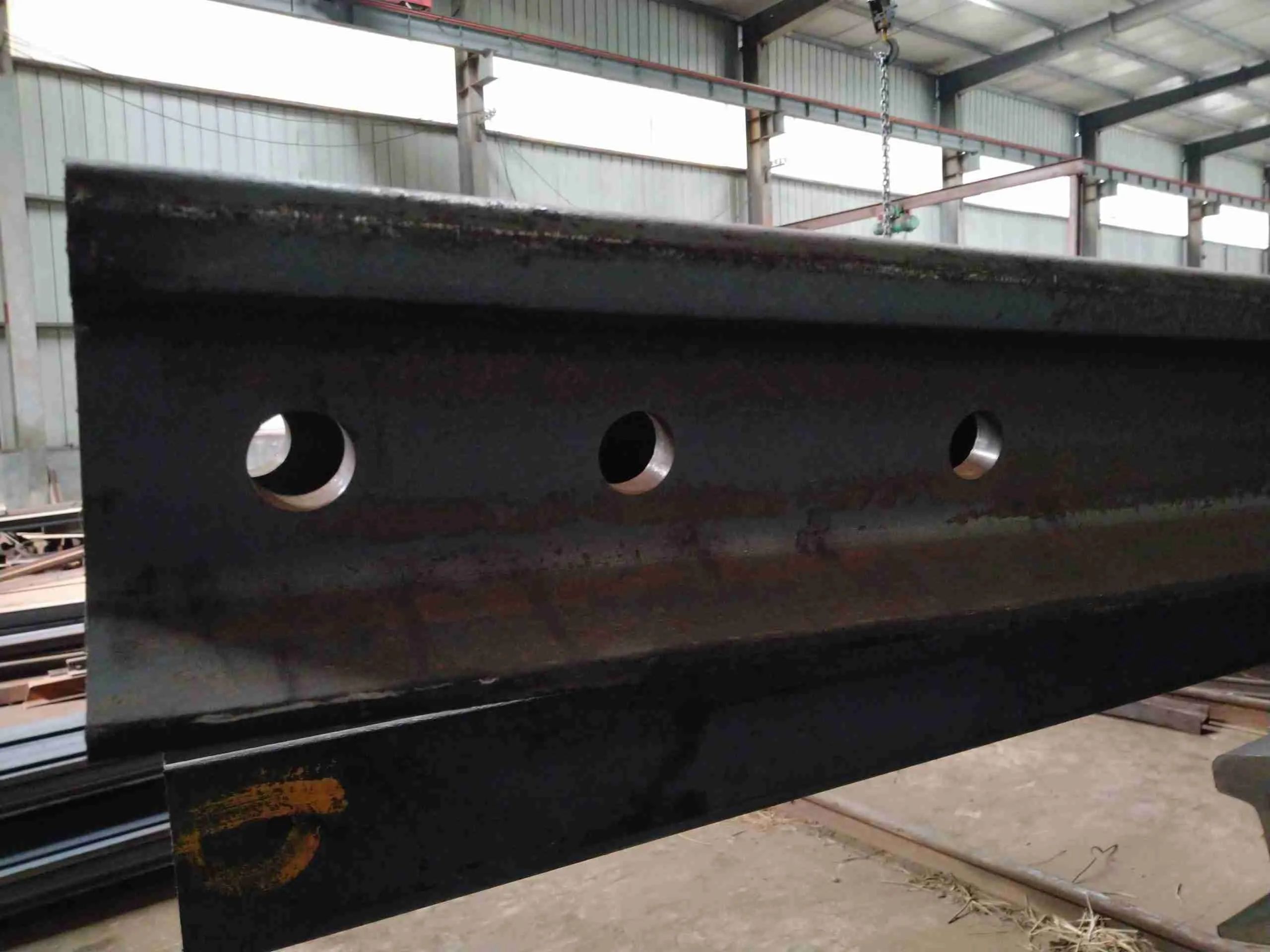

- Drilling for joint bars or fastening systems

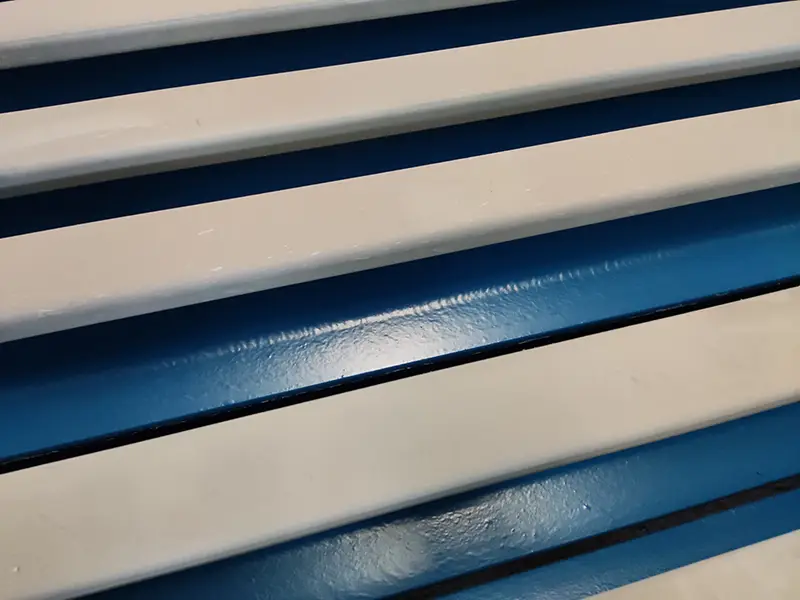

- Anti-corrosion coating （galvanization or painting）
- End finishing and deburring for precise alignment
These services ensure seamless rail integration across crane systems, branch lines, and industrial loops, reducing on-site adjustments and saving time.
Applications of 39E1 Rail
Mining & Industrial Tracks
Designed to handle high impact and abrasion, BS80A rail is widely used in mining haulage systems and industrial loops, ensuring safe and stable transport of heavy equipment and materials under harsh working conditions.
Railway & Transit Lines
Suitable for medium-duty railway operations and light urban transit, 39E1 rail provides reliable load-bearing support and long-lasting alignment, making it ideal for passenger lines, branch tracks, and metro systems.
Ports & Logistics Yards
BS80A rail supports efficient internal transport in logistics hubs, warehouses, and port terminals. Its flat-bottom profile allows seamless installation in paved or embedded track environments for cranes and material handling systems.

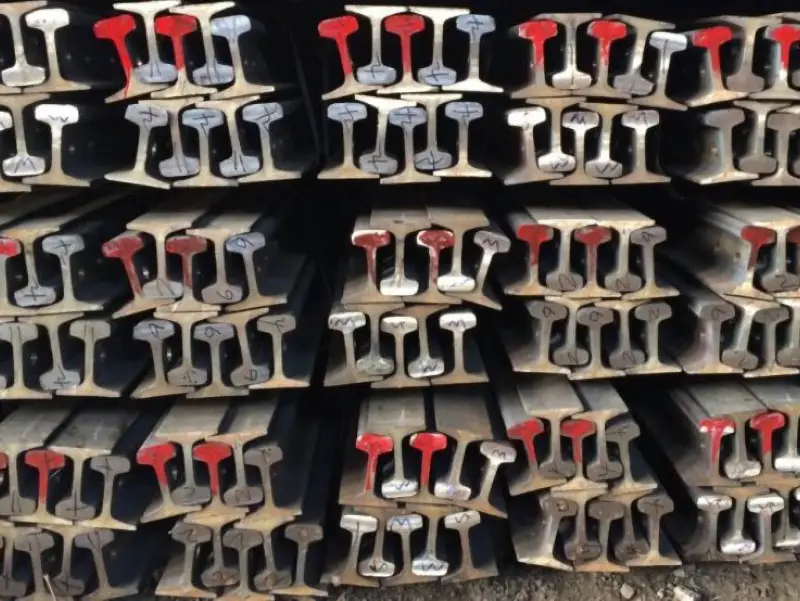

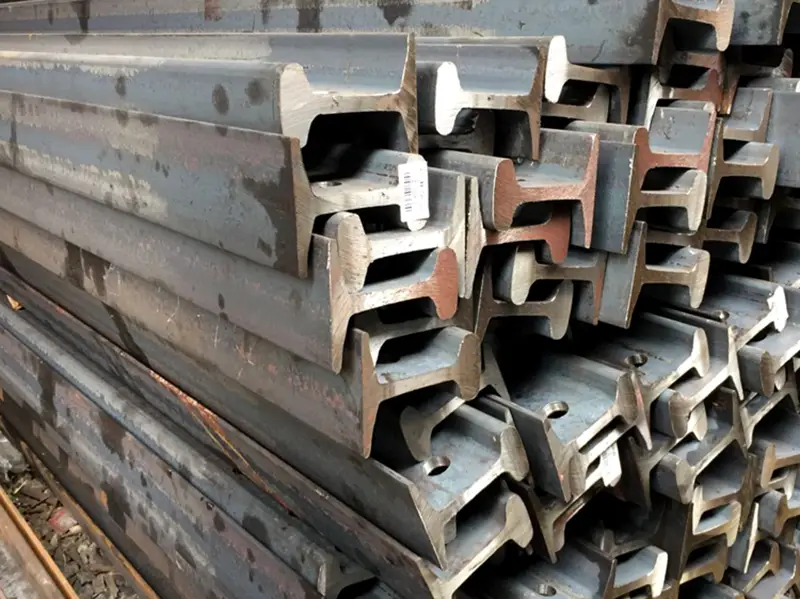

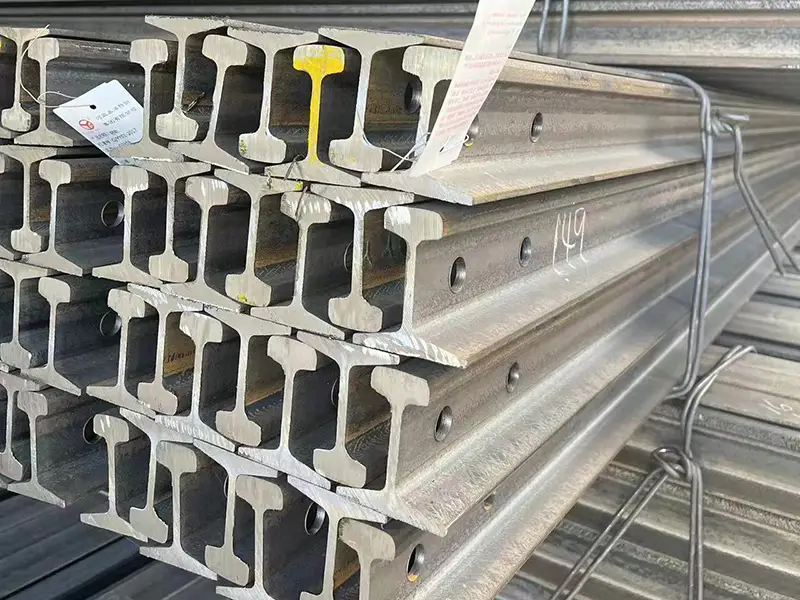

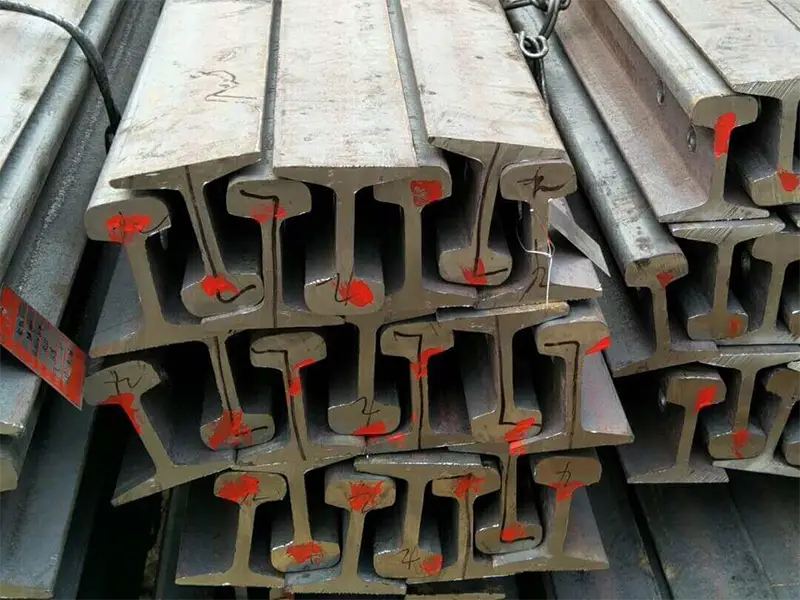

steel rails we supply
Request a Quote for BS80A (39E1) Rail:
Looking for a tailored rail solution? Send us your project details to receive a customized quotation.
- Required length(s) and quantity
- Steel grade preference (e.g., R260, R350HT)
- Intended application (mining, transport, crane, etc.)
- Processing needs (cutting, drilling, coating)
📧Email: info@glorytrack.com
Our team will respond within 24 hours with technical support and pricing.
