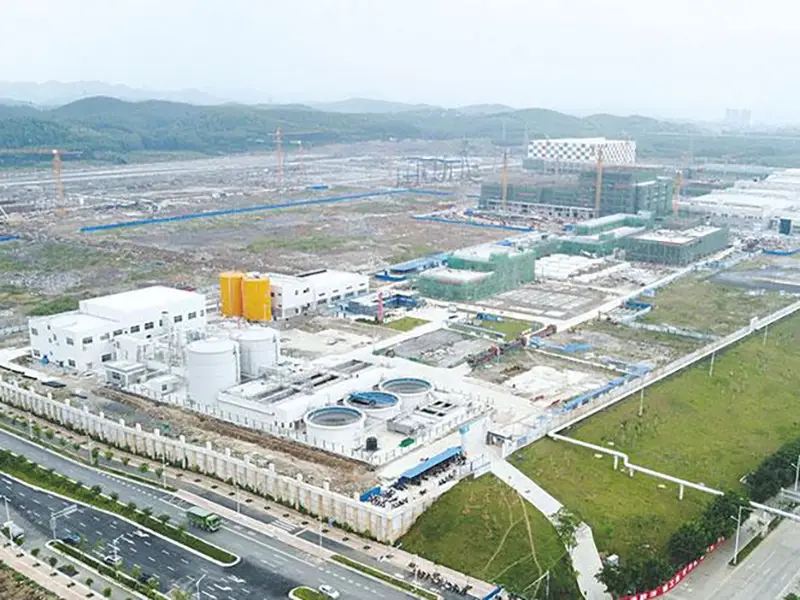

Glory Track supplied the complete automated warehouse rail system for the Haitian Group Nanning production base, one of China’s leading condiment manufacturers.
The system was designed for the stereoscopic (multi-level) automated warehouse, where high precision and smooth rail alignment are crucial to the movement of automated storage and retrieval equipment.
Project Overview
The Haitian stereoscopic warehouse rail system adopts P50 rails combined with 3120 bolt-type rail clamps.
The entire track structure is built on a concrete foundation reinforced with steel backing plates.
Each backing plate was anchored using chemical bolts and then embedded in cement to form stable pier foundations, ensuring long-term load-bearing performance and alignment stability.
Since the project operates indoors, the corrosion protection requirements were moderate.
Glory Track adopted electro-galvanizing for most fittings, providing sufficient protection while maintaining an efficient and cost-effective solution.
Technical Details
- Rail Type: P50
- Rail Clamp Type: 3120 bolt-type rail clamp
- Foundation Type: Concrete base with steel backing plates
- Fixing Method: Chemical bolts and concrete pier pouring
- Surface Treatment: Electro-galvanized fittings
- Project Location: Haitian Group Nanning Production Base
- Rail Length: 1,372 meters
- Rail Quantity: 67.5 tons of P50 rail
- Clamp Sets: 5,016 sets of 3120 rail clips
- Project Value: Over USD 167,000
Inspection and Quality Control

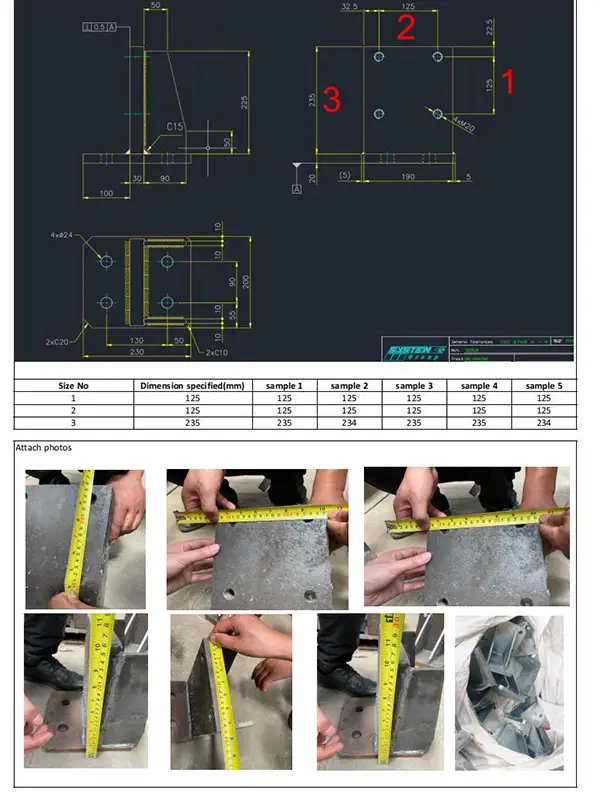

Before delivery, all rails and fittings were carefully inspected to ensure dimensional accuracy and quality consistency.
The inspection reports included detailed measurement comparisons between design drawings and actual product dimensions, confirming compliance with project specifications.

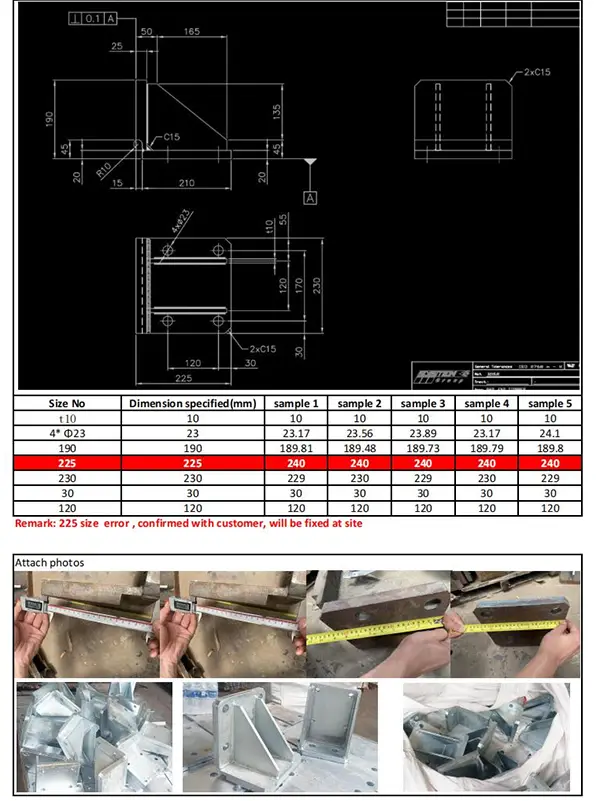

The inspection also verified the flatness and precision of steel backing plates, ensuring the rail alignment would meet the accuracy requirements of automated warehouse systems.
All items passed internal QC checks and customer acceptance before installation.

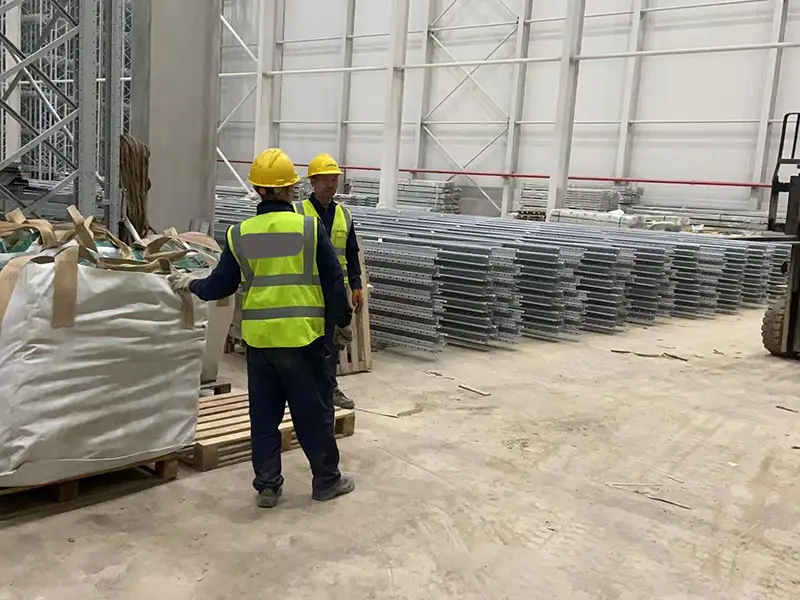

On-Site Installation

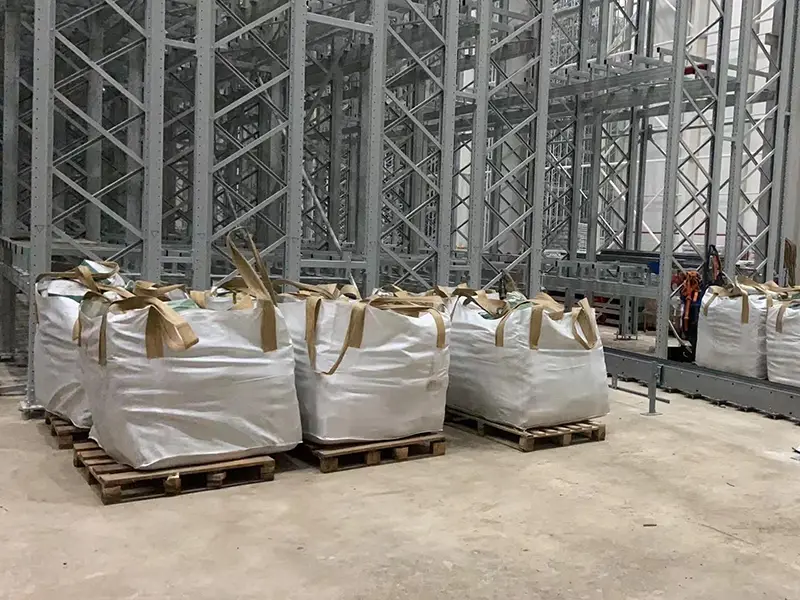

At the Haitian Group’s Nanning base, the automated warehouse rail system was installed and commissioned successfully.
The completed system demonstrated smooth, precise, and stable operation, fully supporting the warehouse’s automated logistics operations.
This project highlights Glory Track’s engineering capability in providing customized rail systems for industrial automation and smart logistics applications.
Why Partner with Glory Track
- Rich Experience: Over 15 years of track manufacturing for cranes, ports, and industrial systems.
- Comprehensive Supply: Full sets of rails, clamps, base plates, bolts, and accessories available.
- Verified Quality: ISO 9001 certified, supporting BV/SGS inspection for overseas projects.
Project Summary
The Haitian stereoscopic warehouse rail system demonstrates Glory Track’s ability to deliver customized, high-precision rail systems for automated and intelligent industrial environments, ensuring long-term operational reliability and performance.
